HH Roberts / Annyang DY-350
16" Swing, 40" centers 2" Spindle Bore

AnnnYang 16" CNC lathe with Anilam 4200 control

Fagor CNC logo

Fanuc CNC logo
Click Here to download our catalogue in PDF format. Adobe Acrobat Reader, latest version will be needed to open this file.

Download the Annnyang CNC lathe Catalog

AnnnYang 16" CNC lathe with Anilam 4200 control

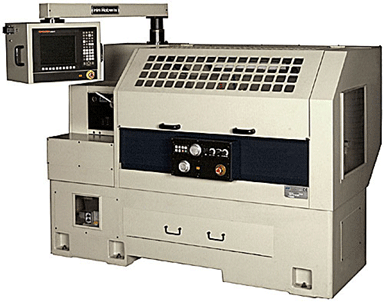

This shows the machine closed for protection.  The advantages of this guard design are that the door lifts straight up and clears the center line, which allows unobstructed loading with an overhead hoist, very important on larger machines. Also, all the coolant drippings are captured back in the machine, not over the headstock or on the floor. We can add an automatic lift system that will open the oor with a pushbutton, or an M-function in the program.
Pragati Electric Turret

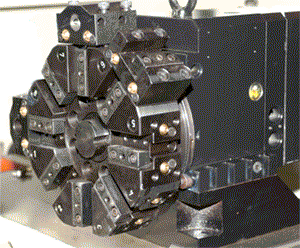

The Pragati turret disc showing the 8 turning positions as well as 3 bolt on boring tool block and one facing tool block. Note the abundance of coolant ports.
AnnnYang 16" CNC lathe with Anilam 4200 control
The base castings for this series has provision for fitting a chip conveyor, as shown here. A higher exit point and larger capacity chip cart is also available.
AnnnYnag 16" CNC lathe with Anilam 4200 control This is a model with a hydraulic chuck and hydraulic 8 position turret.
Base of ANNYANG 16" CNC lathe with Anilam 4200 control

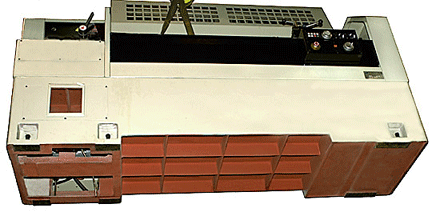

The base on all of this series machines is a solid, one piece casting.
electric turret

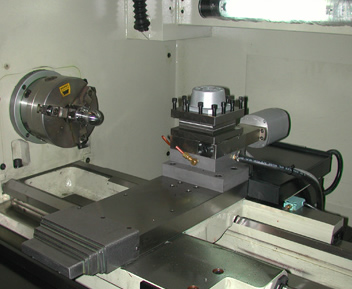

To the left is the optional automatic 4 way indexing turret toolpost.  This toolpost has 2 coolant ports on the base below the turret.  The coolant ports are normally fitted with a copper tube to allow adjustment of the aim.  They coolant ports are fixed and do not change when the turret indexes.  This is a very economical automatic toolpost if you can live with only 4 tools and the coolant function.  This toolpost must be mounted on the rear of the cross slide. These turrets do not lift up during unclamp or rotation

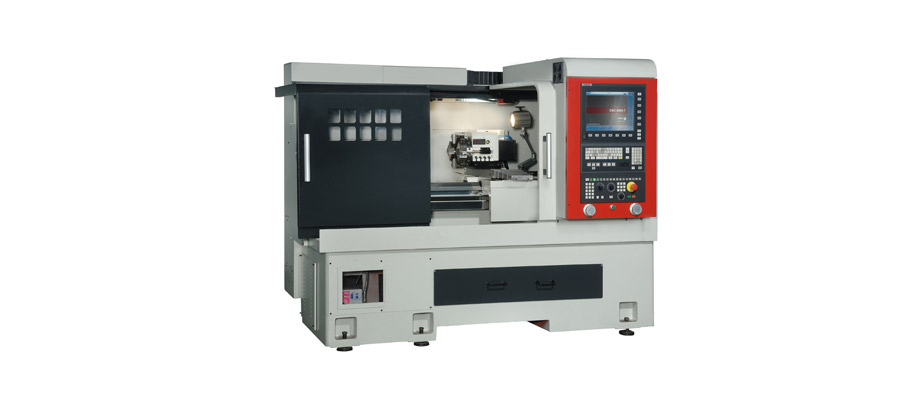

  Model DY-350C
Machining Capability Distance Between Centers 1000 mm / 40"
Swing Over Bed 410 mm / 16
Swing Over Cross Slide 200 mm / 7.87"
Bed Width 305 mm (12")
Main Spindle Spindle Nose D1-6
Spindle Bore 54 mm / 2.125
Spindle Speed (rpm) H: 600 - 3000
M: 200 - 1300
L: 50 - 450
Spindle Taper MT6
Travel Cross Travel (X Axis) 180 mm
Longitudinal Travel (Z Axis) 750 / 1250 mm
Feeds X Axis Rapid Traverse 5 M/min
Z Axis Rapid Traverse 7.5 M/min
Cutting Feed Rate 0.001 - 500 mm/rev (0.0004" - 20"/rev)
Motors Main Motor 7.5 hp
Inverter 7.5 hp
X Axis Servo Motor Fanuc or Fagor AV servo motor FXM33 / 1.53 kw / 7.3 Nm / 2000 rpm
Z Axis Servo Motor Fanuc or Fagor AV servo motor FXM53 / 2.49 kw / 11.9 Nm / 2000 rpm
Oil Pump 80 W
Coolant Pump 1/8 Hp
Hydraulic Tank Pump (Optional) 2 Hp (1.5 kw)
Tank Capacity Hydraulic Tank (Optional) 20 L
Lubrication Pump 2 L
Coolant Tank 90 L
Ball Screw X Axis Diameter 25 mm / pitch 5
Z Axis Diameter 40 mm / pitch 5
Tailstock Quill Diameter 54 mm
Quill Travel 130 mm
Quill Taper MT4
(Approx.) (kg)
Net Weight 2000 / 2200
Gross Weight 2200 / 2450

* Above specifications are subject to change without notice. Special requirement please connect with us.
