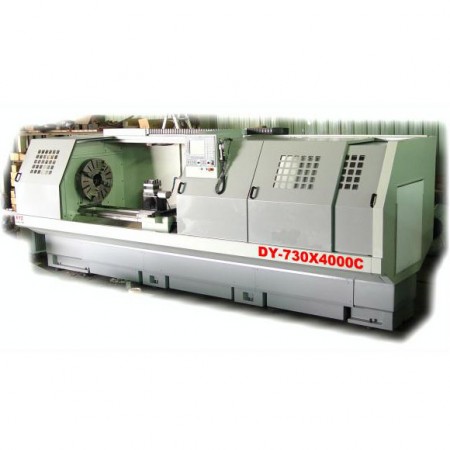

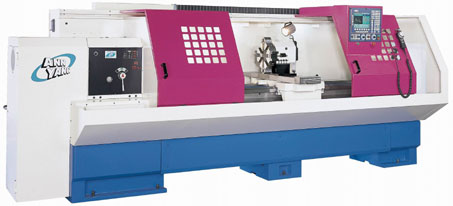

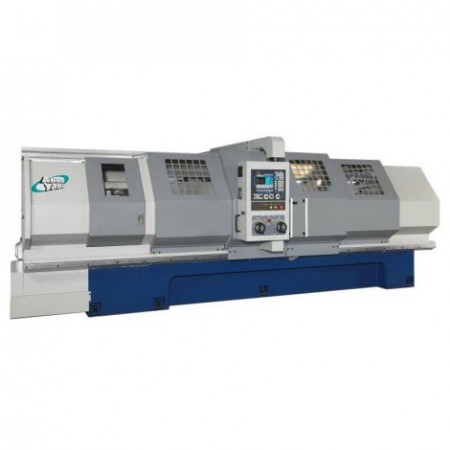

HH Roberts / Annnyang DY530, 630 and 730 21", 25" and 28" Swing CNC lathes 40" to 196" between centers |
| This family of Annnyang CNC lathes features a triple V flat bed design. This is robust, gives better than average carriage alignment and is economical to build. |
|
|
||||||||||||||
| MODEL | DY-530C | DY-630C | DY-730C | |
|---|---|---|---|---|
| Machining Capability | Distance Between Centers | 1000 / 1500 / 2000 / 3000 / 4000 | ||
| Swing Over Bed | 530 mm | 630 mm | 730 mm | |
| Swing Over Cross Slide | 310 mm | 410 mm | 510 mm | |
| BED | Width | 435 mm | ||
| Main Spindle | Spindle Nose | D1 - 8, 104 mm: L: 50 - 300, H: 300 - 2000 rpm D1 - 11, 130 mm: L: 50 - 300, H: 300 - 1500 rpm |
||
| Spindle Bore | ||||
| Spindle Speed (rpm) | ||||
| Spindle Taper | MT10 or MT15 | |||
| Travel | Cross Travel (X Axis) | 360 mm | ||
| Longitudinal Travel (Z Axis) | 700 / 1200 / 1700 / 2700 / 3700 mm | |||
| Feeds | X Axis Rapid Traverse | 5 M/min | ||
| Z Axis Rapid Traverse | 7.5 M/min | |||
| Cutting Feed Rate | 0.001 - 500 mm/rev (0.0004" - 20"/rev) | |||
| Motors | Main Motor | 20 Hp | ||
| Inverter | 20 Hp | |||
| X Axis Servo Motor | Siemens or Fanuc or Fagor AC servo motor FXM53 / 2.49 kw, 11.9 Nm / 2000 rpm |
|||
| Z Axis Servo Motor | Siemens or Fanuc or Fagor AC servo motor FXM73 / 4.36 kw, 20.8 Nm / 2000 rpm |
|||
| Oil Pump | 80 W | |||
| Coolant Pump | 1/2 Hp | |||
| Hydraulic Tank Pump (Optional) | 3 Hp (2.2 kw) | |||
| Tank Capacity | Hydraulic Tank (Optional) | 20 L | ||
| Lubrication Pump | 2 L | |||
| Ball Screw | X Axis Diameter | 25 mm / pitch 5 | ||
| Z Axis Diameter | 50 mm / pitch 10 | |||
| Tailstock | Quill Diameter | 90 mm | ||
| Quill Travel | 203 mm | |||
| Quill Taper | MT5 | |||
| Length (mm) | 3390 / 3890 / 4390 / 5390 / 6390 | |||
| Width (mm) | 2180 | |||
| Height (mm) | 1730 | |||
| N.W (kg) | 3500 / 3650 / 3800 / 4100 / 4500 | |||

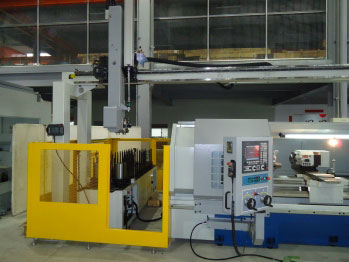

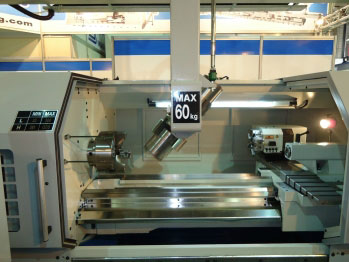

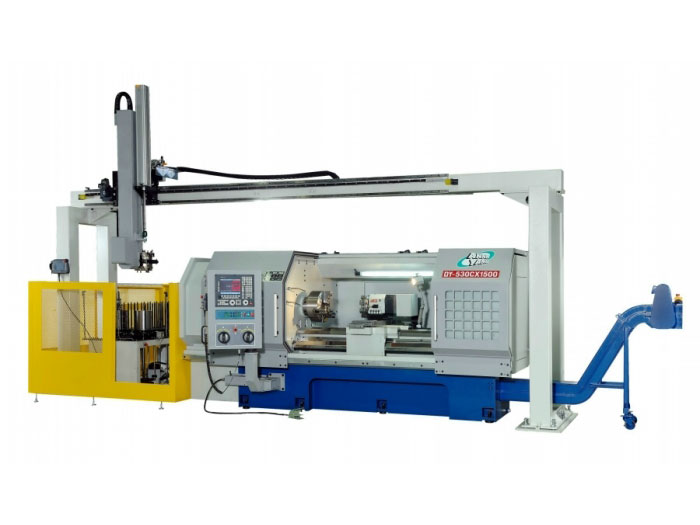

 robotic part loader |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 Triple V bed |
 Tailstock with built in rotating spindle and mounting for chucks |
 Hydrualic Steady Resst |
 |

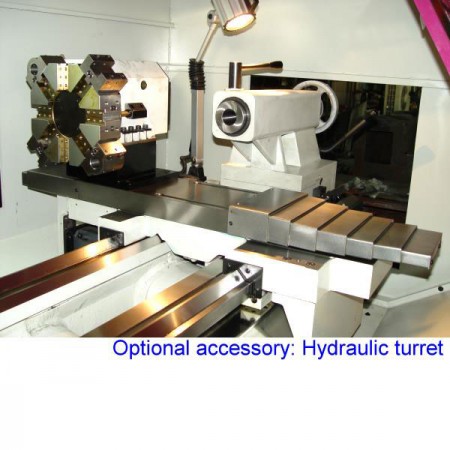

Here is a close up of the turret disc showing the 8 turning positions as well as 3 bolt on boring tool block and one facing tool block. Note the abundance of coolant ports Pragati electric turret |
