Annn Yang 660 / 760 / 860 / 1000 / 1100 Models
Swings of 26 " to 43"
Up to 16000mm / 630" centers |

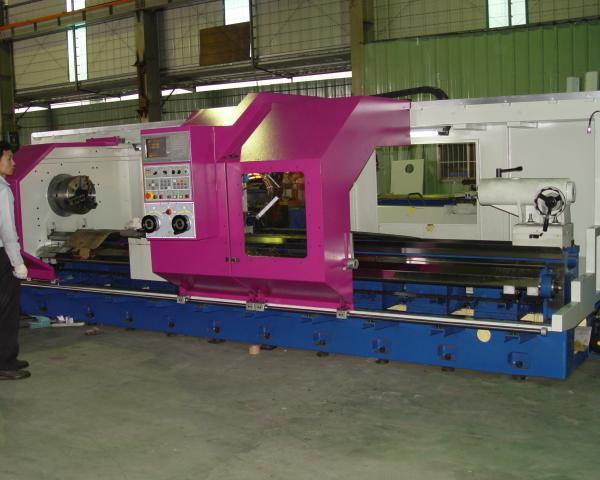

DY-760 x 4000 |

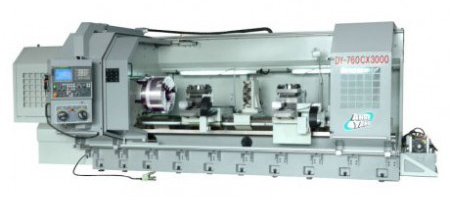

DY-760 X 3000 |
| |
MODEL |
DY-660 |
DY-760 |
DY-860 |
DY-1000 |
DY-1100 |
Machining
capability |
Swing over bed |
660mm
26" |
760mm
30" |
860mm
34" |
1000mm
39.37" |
1100
43.3" |
| Swing over cross slide |
350 |
450 |
550 |
650 |
750 |
| Max. cutting diameter |
660 |
760 |
860 |
1000 |
1100 |
| Distance between centers |
1000-1500-2000-3000-4000-5000-6000 mm
40" 60" 80" 120" 160" 200" 240" |
| Main Spindle |
|
| Spindle Bore |
Spindle nose |
Speeds Lo |
Speeds Med |
Speeds Hi |
Spindle Taper |
| 130mm |
D1-11 |
40 - 130 |
130 - 400 |
400 - 1200 |
MT-15 |
| 165mm |
A2-11 |
20 - 110 |
110 - 320 |
320 - 660 |
bush + MT-15 |
| 230mm |
A2-15 |
16 - 61 |
50 - 190 |
150 - 570 |
bush + MT-15 |
| 310mm |
A2-20 |
20 - 100 |
100 - 200 |
200 - 400 |
bush +MT-15 |
| 360mm |
A2-20 |
20 - 100 |
100 - 200 |
200 - 400 |
bush + MT-15 |
| 410mm |
A2-28 |
20 - 100 |
100 - 200 |
200 - 250 |
|
|
| Travel |
Cross travel ( X axis) |
500 |
| Feeds |
Max rapid traverse
( X axis) |
5M/min
196.5 ipm |
Max rapid traverse
( Z axis) |
10M/min
393 ipm |
| Motors |
Feed rate
( X axis, Z axis) |
0.001 - 500 mm/rev
0.0004 - 20" / rev |
| Main motor |
20HP |
20HP |
25HP |
25HP |
25HP |

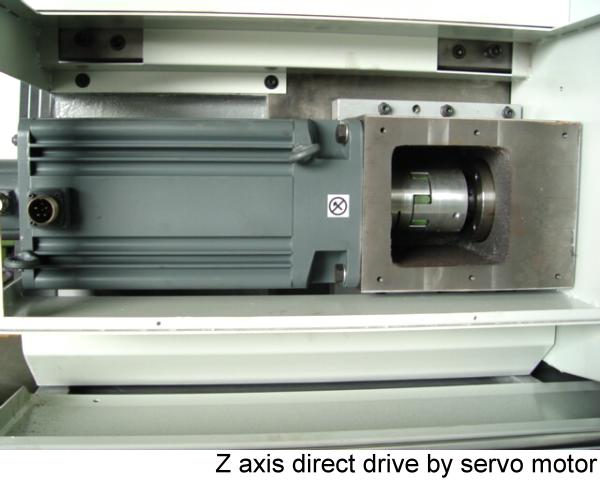

| Servo motors |
4.5NM-10NM |
| Hydraulic oil pump (opt.) |
2HP / 1.5KW |
| Lubrication motor |
100W |
| Coolant pump |
1/2HP |
| Bed |
Width |
482mm |
533mm |
| Tailstock |
Quill diamenter |
115 |
| Quill travel |
300 |
| Quill taper |
MT-6 |
| Machine |
Net weight(approx.) |
7700 / 8400 / 9100 / 10500 / 11900 / 13300 / 14700 / 16100 / 17500 / 18900 / 20300 / 21700 / 23100 / 24500 / 25900 / 27300 / 28700 |
Standard Equipment and Features
• automatic gear shift
• quick change 4 way toolpost
• coolant system
• centralized automatic lube system for slideways and ballscews
• steady rest
• worklight(s)
Options Include
• Hydraulic power chucks
• Choice of Anilam, Fagor or Fanuc CNC controls
• Headstock oil cooling system
• Electric or Hydraulic tool turrets, horizontal or vertical axis
• Hydraulic tailstock
• Air lift on tailstock
• Special carraiges and steadies for deep hole drilling
• Chip conveyor systems and chip carts
• Larger capacity steady rests |
| |
