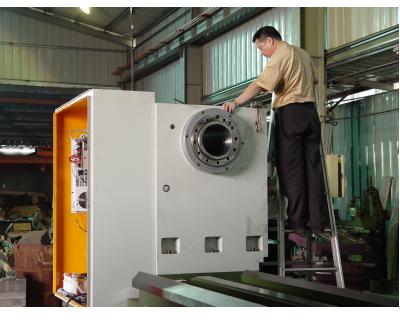

Annn Yang 2000mm through 2300mm C-Models

Swings of 78", 82", 86" and 90"

Up to 40,000mm x 130 feet centers

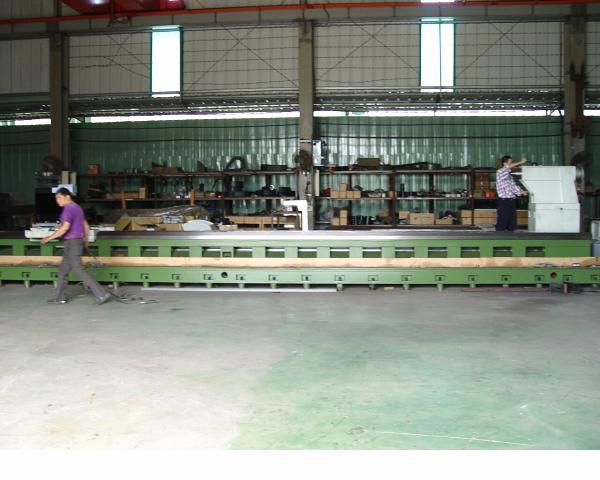

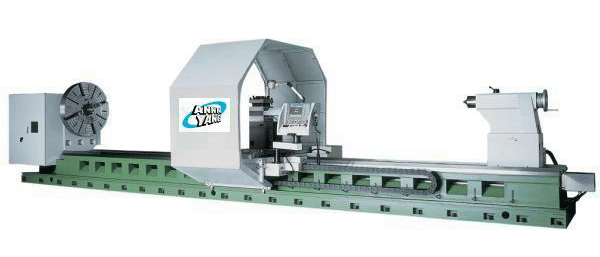

Annn Yang DY-2000 x 9000 CNC lathe
CNC 1900 x 6000

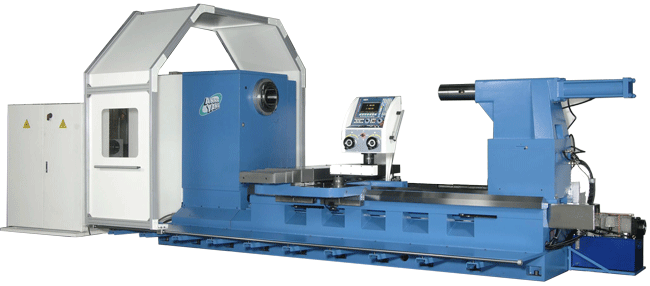

Annn Yang 2100 x 2500 CNC lathe
CNC 2100 x 2500 with hydrualic tailstock.
Still under assembly ( toolpost missing )

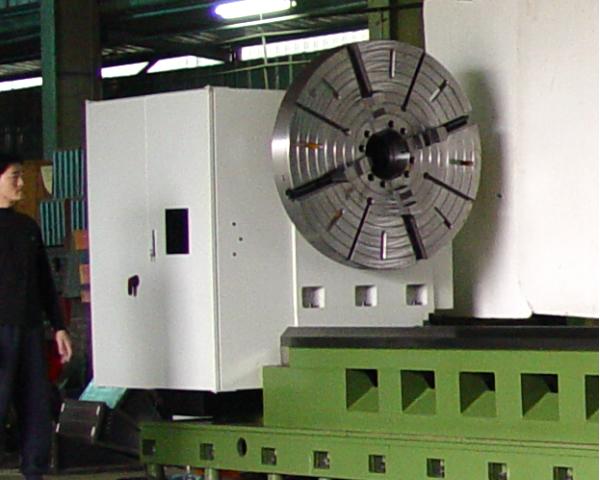

Annn Yang 2100 x 4000 CNC lathe
CNC 2100 x 4000 ( still under assembly at Annn Yang)

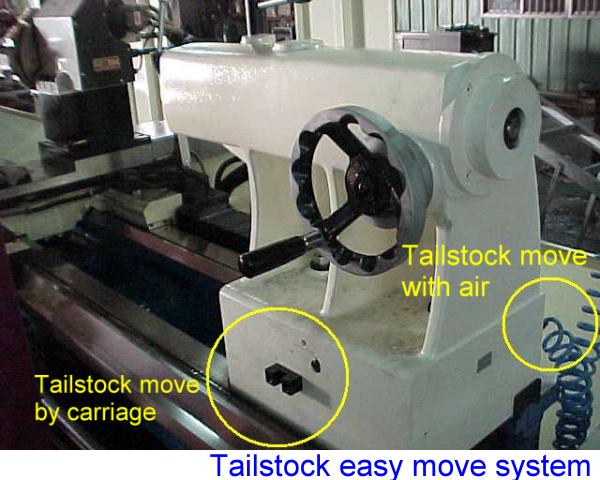

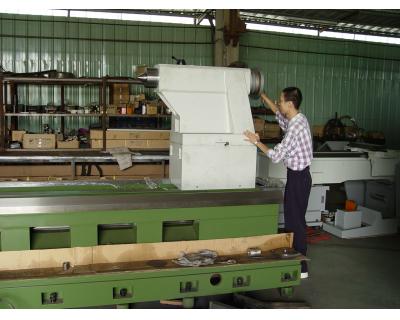

A super heavy duty tailstock with built in live center.
With one steady rest this can support 40 metric tons on
the heavier Annn Yang lathe models

.

MODEL DY-2000C DY-2100C DY-2200C DY-2300C
Machining Capability Distance Between Centers 2000 / 3000 / 4000 / 5000 / 6000 / 7000 / 8000 / 9000 / 10000 / 11000 / 12000 ~ 40000 mm
Swing Over Bed 2000 mm 2100 mm 2200 mm 2300 mm
Swing Over Cross Slide 1460 mm 1560 mm 1660 mm 1760 mm
Bed Width 1150 mm
Main Spindle Spindle Nose A2-15, 230 mm, L: 20-97, M: 97-200, H: 200-400
A2-20, 310 mm, L: 20-97, M: 97-200, H: 200-350
A2-20, 360 mm, L: 20-97, M: 97-200, H: 200-300
A2-28, 410 mm, L: 20-97, M: 97-200, H: 200-250

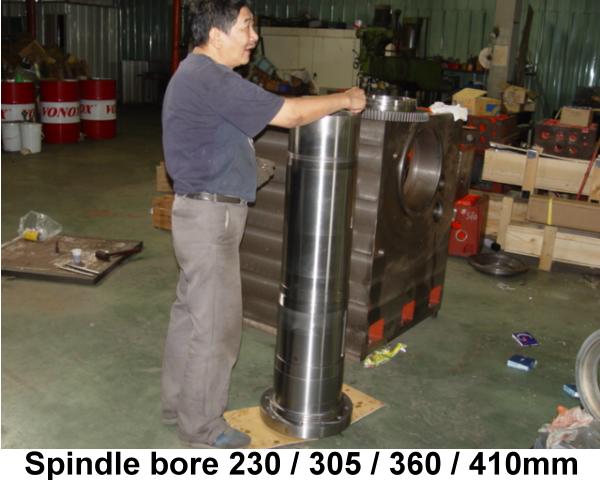

Spindle Bore
Spindle Speed (rpm)
Travel Cross Travel (X Axis) 1000 mm 1050 mm 1100 mm 1150 mm
Longitudinal Travel (Z Axis) Same as distance between centers
Feeds X Axis Rapid Traverse 5 M/min
Z Axis Rapid Traverse 5 M/min
Cutting Feed Rate 0.001 - 500 mm/rev (0.0004" - 20"/rev)
Motors Main Motor Siemens spindle motor 1PH7184-NF, 51 kw, 325 Nm
Inverter ---
X Axis Servo Motor Siemens or Fanuc or Siemens servo motor 1FK7103-5AF71, 18 Nm, 3.37 kw, 3000 rpm
Z Axis Servo Motor Siemens or Fanuc or Siemens servo motor 1FK7103-5AF71, 48 Nm, 8.17 kw, 3000 rpm
Oil Pump 100 W
Coolant Pump 450 W, 6 ~ 10 bar
Hydraulic Tank Pump (Optional) 3 hp (2.2 kw)
Tank Capacity Hydraulic Tank (Optional) 20 L
Lubrication Pump 8 L
Ball Screw X Axis Diameter 50 mm
Z Axis Diameter 80 mm
Tailstock Quill Diameter 250 mm
Quill Travel 500 mm
Quill Taper MT7
Length (mm) 7430 / 8430 / 9430 / 10430 / 11430 / 12430 / 13430 / 14430 / 15430 / 16430 / 17430 ~
Width (mm) 3405 / 3505 / 3605 / 3705
Height (mm) 3020 / 3070 / 3120 / 3170
N.W (kg) 24000 / 26000 / 28000 / 30000 / 32000 / 34000 / 36000 / 38000 / 40000 / 42000 / 44000 ~

Standard Equipment and Features
• automatic gear change system
• quick change 4 way toolpost
• coolant system
• centralized automatic lube system for slideways and ballscews
• steady rest
• worklight(s)

Options Include
• Hydraulic power chucks
• Choice of Anilam, Fagor or Fanuc CNC controls
• Headstock oil cooling system
• Electric or Hydraulic tool turrets, horizontal or vertical axis
• Hydraulic tailstock
• Air lift on tailstock
• Special carraiges and steadies for deep hole drilling
• Chip conveyor systems and chip carts
• Larger capacity steady rests

afd asfd asfd asfd
asfd asfd aasfd asfd
asfd asfd asfd asfd
  asfd asfd

asfd asfd
asfd
asfd
asfd

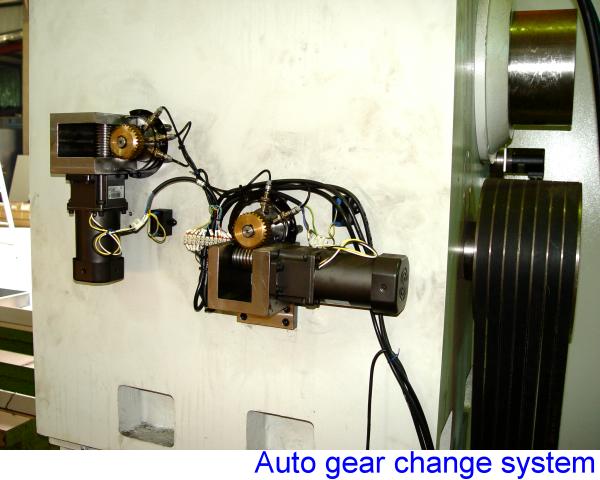

automatic gear changer

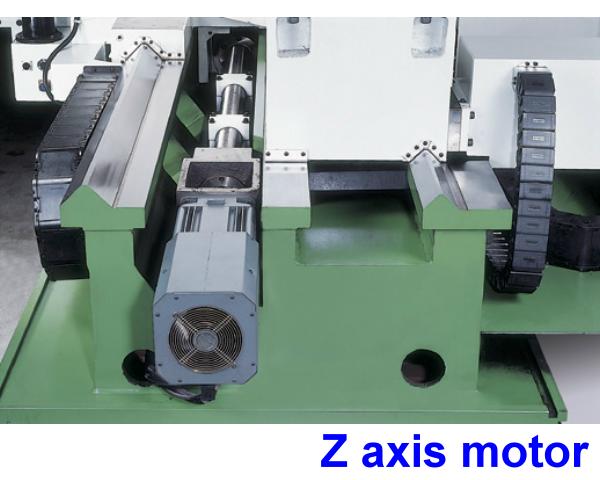

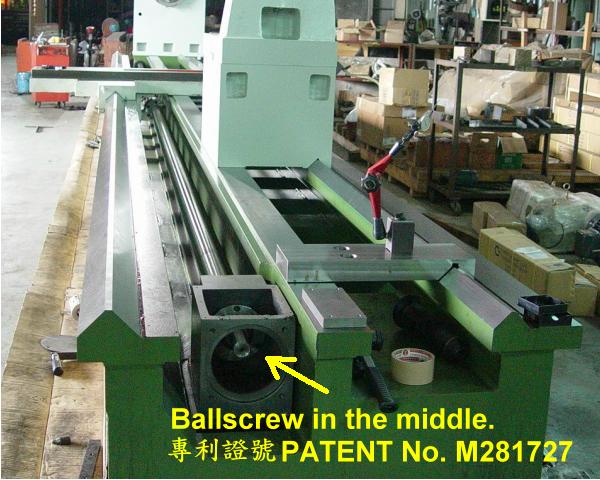

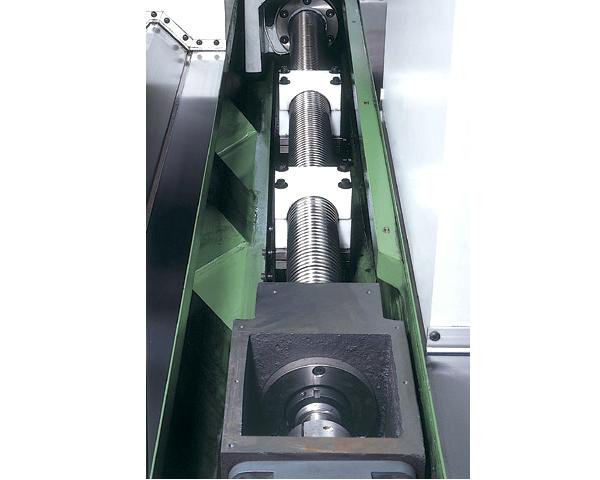

Z axis motor Z axis ballscrew mount

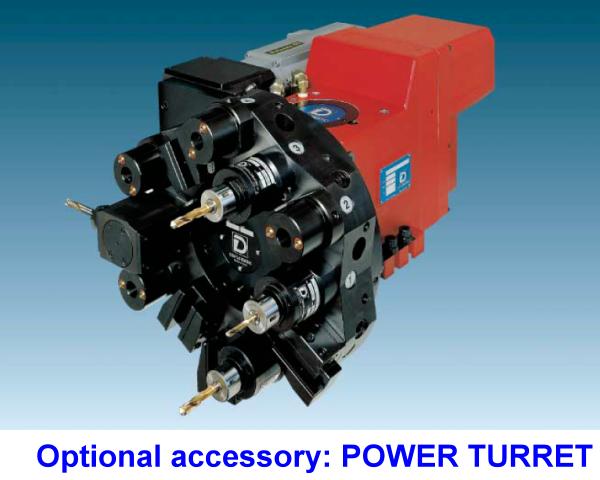

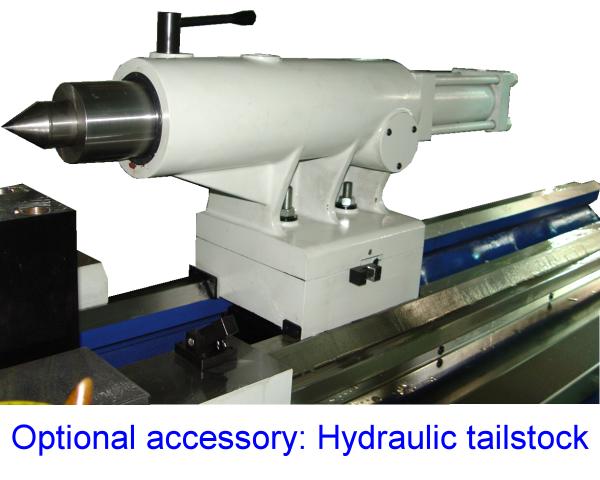

power turret hydraulic tailstock

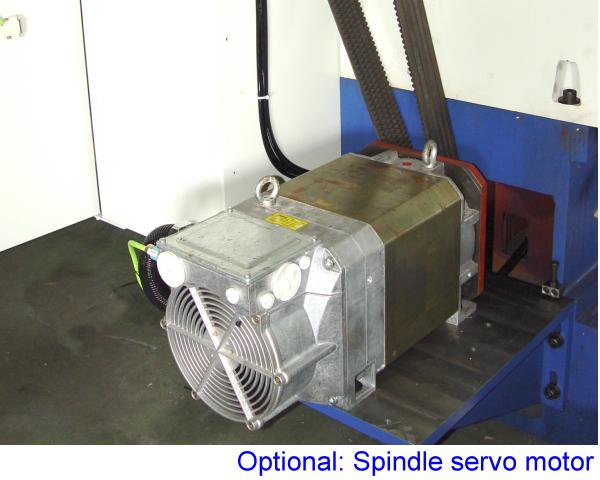

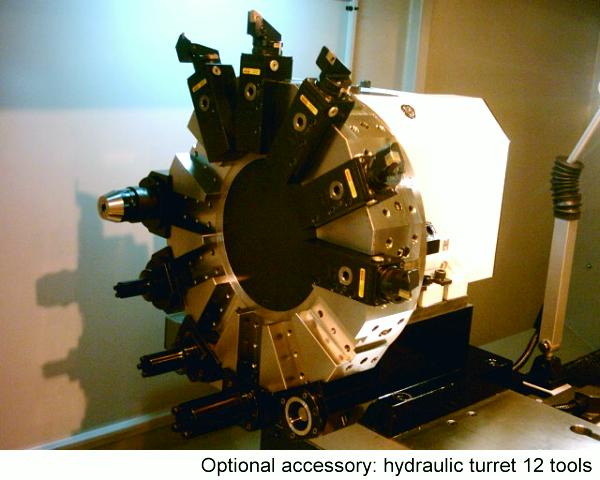

12 tool turret Servo motor for spindle positioning

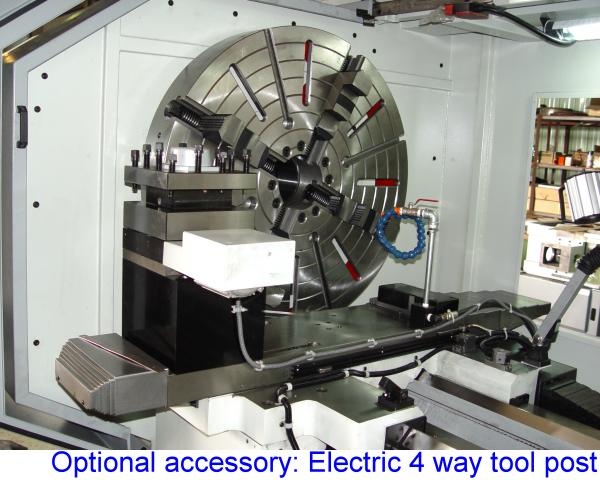

tailstock with air lift system electric 4 way  turret

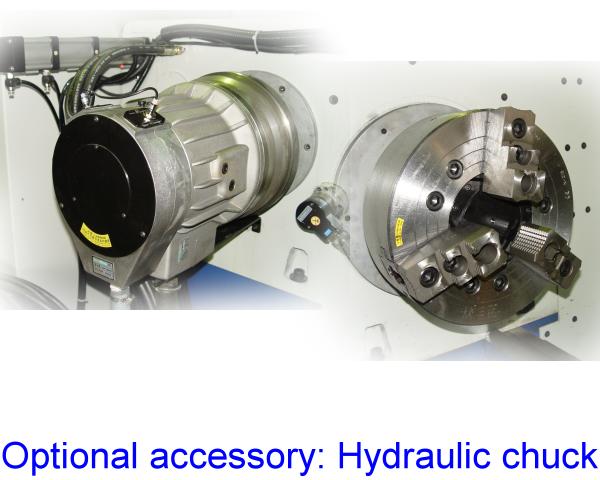

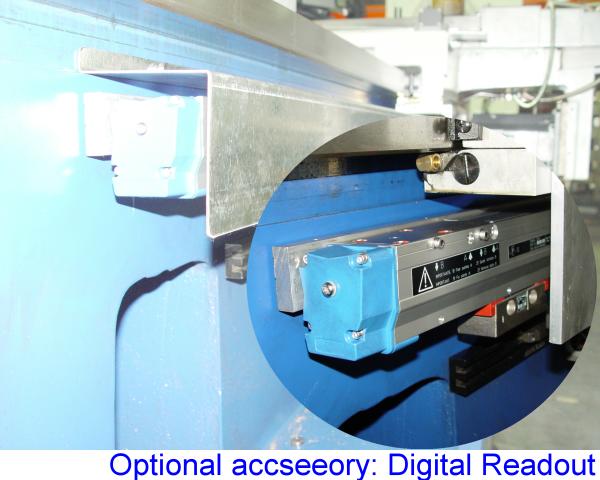

linear Scales hydraulic chuck
asfd
