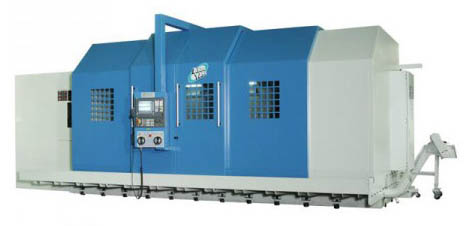

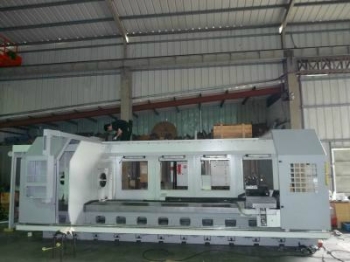

Annn Yang 2400 through 2700 Models Swings of 94" / 98" / 102" / 106" Up to 40000mm / 1575" centers Up to 16" spindle bore |
 |

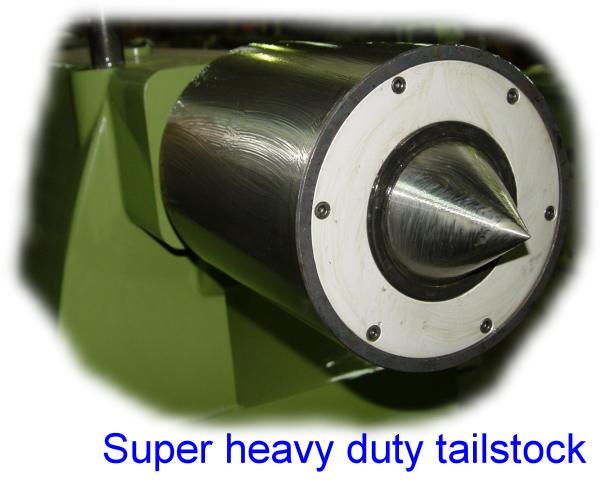

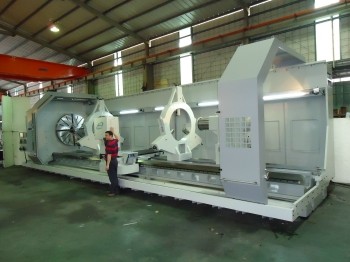

 A super heavy duty tailstock with built in live center. With one steady rest this can support 40 metric tons on the heavier Annn Yang lathe models |
| Standard Equipment and Features • automatic gear change system • quick change 4 way toolpost • coolant system • centralized automatic lube system for slideways and ballscews • steady rest • worklight(s) Options Include • Hydraulic power chucks • Choice of Anilam, Fagor or Fanuc CNC controls • Headstock oil cooling system • Electric or Hydraulic tool turrets, horizontal or vertical axis • Hydraulic tailstock • Air lift on tailstock • Special carraiges and steadies for deep hole drilling • Chip conveyor systems and chip carts • Larger capacity steady rests |
| MODEL | DY-2400C | DY-2500C | DY-2600C | DY-2700C | |
|---|---|---|---|---|---|
| Machining Capability | Distance Between Centers | 2000 / 3000 / 4000 / 5000 / 6000 / 7000 / 8000 / 9000 / 10000 / 11000 / 12000 ~ 40000 mm | |||
| Swing Over Bed | 2400 mm | 2500 mm | 2600 mm | 2700 mm | |
| Swing Over Cross Slide | 1810 mm | 1910 mm | 2010 mm | 2110 mm | |
| Bed | Width | 1400 mm | |||
| Main Spindle | Spindle Nose | A2-15, 230 mm, L: 10-97, M: 97-200, H: 200-400 A2-20, 310 mm, L: 10-97, M: 97-200, H: 200-350 A2-20, 360 mm, L: 10-97, M: 97-200, H: 200-300 A2-28, 410 mm, L: 10-97, M: 97-200, H: 200-250 |
|||
| Spindle Bore | |||||
| Spindle Speed (rpm) | |||||
| Travel | Cross Travel (X Axis) | 1200 mm | 1250 mm | 1300 mm | 1350 mm |
| Longitudinal Travel (Z Axis) | Same as distance between centers | ||||
| Feeds | X Axis Rapid Traverse | 5 M/min | |||
| Z Axis Rapid Traverse | 5 M/min | ||||
| Cutting Feed Rate | 0.001 - 500 mm/rev (0.0004" - 20"/rev) | ||||
| Motors | Main Motor | Siemens spindle motor 1PH7184-NF, 51 kw, 325 Nm | |||
| Inverter | --- | ||||
| X Axis Servo Motor | Siemens or Fanuc or Siemens servo motor 1FK7103-5AF71, 20.5 Nm, 5.37 kw, 3000 rpm | ||||
| Z Axis Servo Motor | Siemens or Fanuc or Siemens servo motor 1FT6108-8SC7, 80 Nm, 16.8 kw, 2000 rpm | ||||
| Oil Pump | 100 W | ||||
| Coolant Pump | 450 W, 6 ~ 10 bar | ||||
| Hydraulic Tank Pump (Optional) | 3 hp (2.2 kw) | ||||
| Tank Capacity | Hydraulic Tank (Optional) | 20 L | |||
| Lubrication Pump | 8 L | ||||
| Ball Screw | X Axis Diameter | 50 mm | |||
| Z Axis Diameter | 80 mm | ||||
| Tailstock | Quill Diameter | 300 mm | |||
| Quill Travel | 600 mm | ||||
| Quill Taper | MT7 | ||||
| N.W (kg) | 24000 / 26000 / 28000 / 30000 / 32000 / 34000 / 36000 / 38000 / 40000 / 42000 / 44000 ~ | ||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
