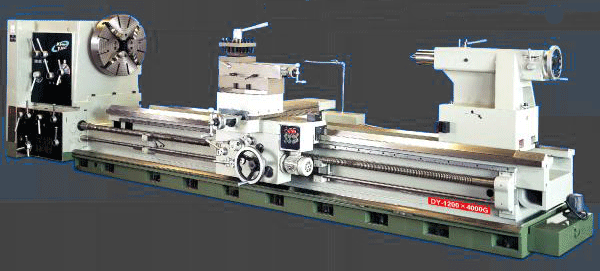

 Annnyang DY1200 lathe |
| ITEM | MODEL | DY-1100G |
DY-1200G |
DY-1300G |
DY-1400G |
DY-1500G |
| Swing | Distance between centers | 1500
/ 2000 / 2500 / 3000 / 4000 / 5000 / 6000 / 7000 / 8000 / 9000
/ 10000mm 59", 79", 98", 118", 157", 197", 236", 275", 315", 354", 393" |
||||
| Height of center (over bed) | 550mm 21.65" |
600mm 23.62" |
650mm 25.59" |
700mm 27.56" |
750mm 29.53" |
|
| Swing over bed | 1100mm 43.3" |
1200mm 47.24" |
1300mm 51.18" |
1400mm 55.12" |
1500mm 59" |
|
| Swing over cross slide | 730mm 28.74" |
830mm 32.68" |
930mm 36.6" |
1030mm 40.55" |
1130mm 44.5" |
|
| Over gap swing | 1600 x 750 63" x 29.5" |
1700 x 750 67" x 29.5" |
1800 x 750 70.87" x 29.5" |
1900 x 750 74.8" x 29.5" |
2000 x 750 78.74" x 29.5" |
|
| Bed | Bed width | 692mm 27.24" |
||||
| Headstock | Spindle nose | A2-11 ISO |
||||
| Spindle bore | 153mm 6.02" |
|||||
| Spindle speed | 3~400rpm |
|||||
| Number of spindle speed | 18 steps |
|||||
| Feeds- Thread | Leadscrew | Ø58 mm. 2T.P.I. 2.28"OD x 2 TPI |
||||
| Longitudinal feed range | 0.012~1.400 mm/rev 0.0005 - 0.055 in/rev |
|||||
| Cross feed range | 0.006~0.700mm/rev 0.0002 - 0.027 in/rev |
|||||
| Inch threads | 90 kinds, 1~168 T.P.I. |
|||||
| Metric threads | 112 kinds, 0..2~56mm |
|||||
| Tool slide | Cross slide travel | 750 mm 29.5" |
||||
| Compound rest travel | 350 mm 13.78" |
|||||
Tailstock |
Spindle travel | 350mm 13.78" |
||||
| Spindle diameter | 125mm 4.92" |
|||||
| Taper of center | MT#6 |
|||||
| Motor | Main motor | 20 Hp (Std.) / 30Hp
(Opt.) |
||||
| Rapid feed motor | 1/2HP |
|||||
| Coolant pump | 1/8HP |
|||||
| Machine | Weight (kg) | 8100/8900/9700/10500/11300/12100/12900/13700/14500/15300/16100 |
||||
Above specifications are subject to change without notice. Special requirement please connect with us. |
||||||
