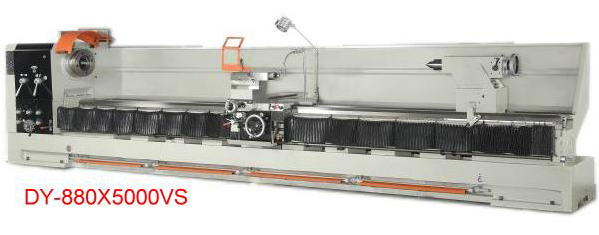

Annnyang DY-660-VS lathe 26" swing |
DY-680VS |
DY-780VS |
DY-880VS |
DY-980VS |
||||||
Swing |
Distance between centers | 1100, 1600, 2000, 2500, 3000, 3500,
4000, 5000, 6000 mm |
|||||||
Swing over bed | 680 mm |
780 mm |
880 mm |
980 mm |
|||||
Swing over cross slide | 440 mm |
540 mm |
640 mm |
740 mm |
|||||
Swing over gap | 970 x 482 |
1070 x 482 |
1170 x 482 |
1270 x 482 |
|||||
Height of center | 340 mm |
390 mm |
440 mm |
490 mm |
|||||
Bed |
Width | 458 mm |
|||||||
Headstock |
Spindle nose & bore | ASA A2-11
105 mm Optionally 155 mm |
|||||||
Spindle speed (rpm) | with 105mm bore L:
12~50 M: 60~180 H: 306~1000 with 155mm bore L: 10~40 M:
47~150
H: 245~800
|
||||||||
Number of spindle speed | Variable
(3 steps) |
||||||||
Feeds-
Thread |
Leadscrew | Ø45
mm. (1 3/4 T.P.I.) |
|||||||
Number of feed changes | 28 |
||||||||
Longitudinal feed range | 0.05~0.7 mm/rev |
||||||||
Cross feed range | 0.025~0.35 mm/rev |
||||||||
Inch threads | 2-28 (36). |
||||||||
Metric threads | P0.8~14mm
(65) |
||||||||
D.P. No. / range | 4~56D.P
(36) |
||||||||
Module pitches No. / range | 0.5~7
MOD (22) |
||||||||
Tool
Slide |
Cross slide travel | 340 mm |
390 mm |
440 mm |
490 mm |
||||
Top slide travel | 240 mm |
||||||||
Tailstock |
Quill travel | 210 mm |
|||||||
Quill diameter | 105 mm |
||||||||
Taper of center | MT 6 |
||||||||
Motor |
Main motor | 30 Hp |
|||||||
Rapid feed motor | 1/4 Hp |
||||||||
Coolant pump | 1/8 Hp |
||||||||
Dimensions |
Length | 1100 x 2700,
1600 x 3200, 2000 x 3700, 2500 x 4200, 3000 x 4700, 3500 x 5200, 4000 x 5700, 5000 x 6700, 6000 x 7700 |
|||||||
Width | 1240 |
||||||||
Height | 1400 |
1450 |
1500 |
1550 |
|||||
Weight. (kg) | 1100 x 3300 1600 x 3600 2000
x 3900 2500 x 4200 3000 x 4500 3500 x 4800 4000 x 5100 5000 x 6300 6000 x 6600 |
||||||||
Above
specifications are subject to change without notice. Special requirement
please connect with us. |

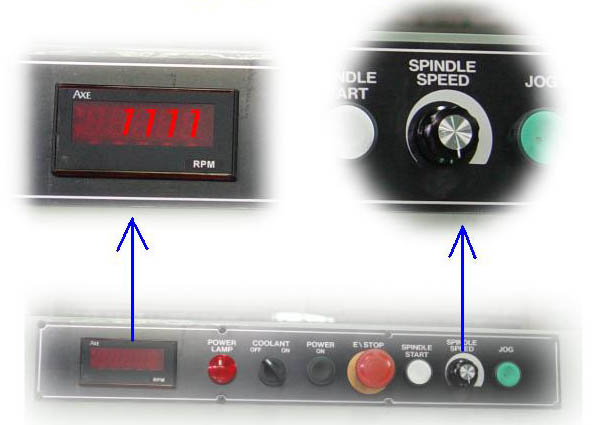

With the variable speed control we have the option of interfacing the digital readout to the spindle drive, giving constant surface speed, just like a CNC machine, with the benefit of better finishes. |

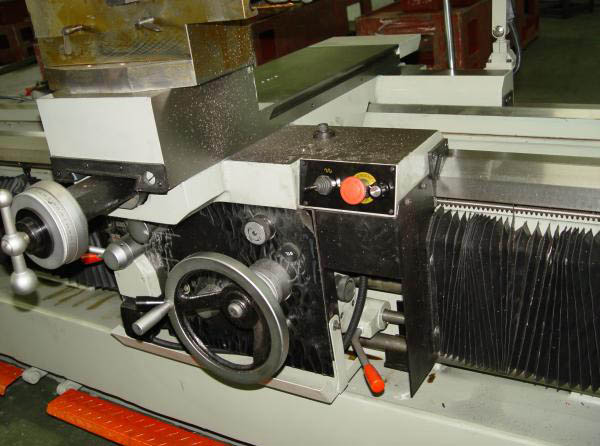

Above shows the apron with optional leadscrew covers. |
Preparation for a rear chuck is avaiable. This photo shows the backplate for the chuck mounted on the spindle. |
