Auto Well High Pressure Mechanical Vises

autowell mechanical high pressure vise

Auto Well Mechanical Power vises
are designed with an unique Ball design structure to furnish superior holding strength with powerful clamping forces to maximize processing accuracy.  They are built with precise tolerance and accurate standards to ensure reliability and long durability.
  1. Mechanical Power Vises are rigidly constructed to give industry a truly dependable tool for milling, grinding, drilling, shaping and production as well as many other types of usage.

    Many tones of pressure can be applied to workpieces with little effort while operating the new Auto Well Mechanical Power Vises, which will never loosen the grip on a workpiece by itself. Loosening can only be done manually.

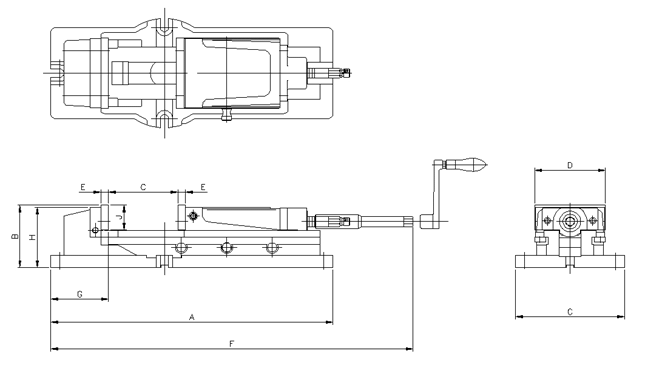

dimenion drawing of autowell high pressure mechanical vises

Model A B C D E F G H J M Weight
MP-50 540mm
21.25"
118mm
4.65"
185mm
7.28"
165mm
6.5"
15mm
0.59"
670mm
26.38"
117mm
4.6"
72mm
2.83"
46mm
1.81"
220mm
6.66"
37 kg
81.4 lb.
MP-60 620mm
24.41"
133mm
5.24"
240mm
9.45"
200mm
7.87"
17mm
0.67"
800mm
31.5"
125mm
4.92"
82mm
3.23"
61mm
2.4"
300mm
11.81"
57 kg
125.4 lb
MP-80 700mm
27.56"
162mm
6.38"
280mm
11.02"
240mm
9.45"
21mm
0.83"
900mm
35.43"
165mm
6.5"
100mm
3.94"
62mm
2.45"
300mm
11.81"
104 kg
228.8 lb

<
