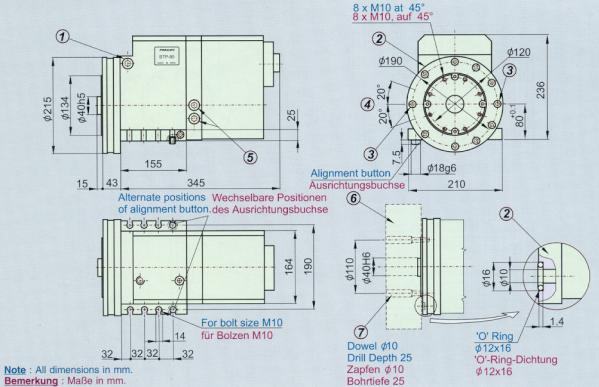

1. 3/8" BSP coolant inlet from either side. 2. Coolant plate can be clamped to indexing flange
at a suitable angular position. Tool disc to be suitably
designed to take coolant entry with 'O' ring sealing from
coolant plate. 3. Alternative positions of coolant
outlet valve. 4. Adjustment range for coolant
outlet valve. 5. 1/2" BSP electrical connection
from either side. 6. Tool disc. 7. Reference pin for tool disc if required. To be moved
after alignment and clamping of tool disc.
SPECIFICATIONS
Model
BTP-80
Center height
mm
80+0.1
No. of index positions
8 or 12
Total indexing Time for adjacent station
(30° or 45°)
sec
0.45
Inertia of Tool Disc and Tooling(max.)
kg.m2
1
Weight of Tool Disc and Tooling(max.)
kg
60
Indexing Frequency (max.)
1/min
10
Repeat positioning accuracy
deg
±2"
Indexing accuracy
deg
±6"
Total weight
kg
58
LOADING CAPACITY Kg.cm
F1xR
15,000
F2xR
15,000
F3xR
6,000
Ordering code:
8-position model : BTP-80/8.
12-position model : BTP-80/12.
Specify the following.
(a Front or rear mounting.
(b) Supply voltage and frequency. Ref. How to order.
