Standard 8 Position Tool Discs
8 Position Standard Tool Disc
and tool holders
Link to 12 position standard tool discs
Link to VDI tool discs

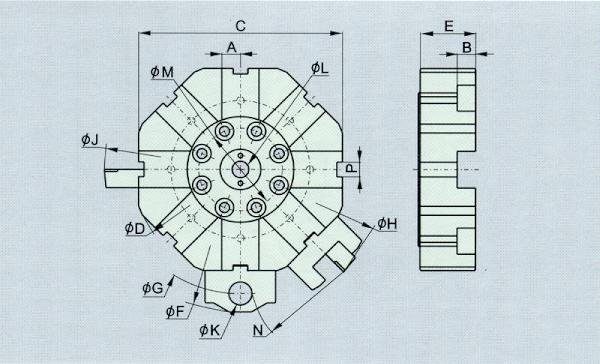

8 Position Standard Tool Disc
Disk
Code
A
B
C
D
E
F
G
H
J
K
L
M
TD-50-8-12
12
12
150
158
44
214
186
212
192
20
25
70
TD-50-8-16
16
16
180
192
52
247
212
250
238
20
25
70
TD-63-8-16
16
16
200
211
52
273
236
272
256
20
30
90
TD-63-8-20
20
20
220
234
62
312
270
310
294
25
30
90
TD-80-8-20
20
20
250
262
62
312
270
310
294
25
30
90
TD-80-8-25
25
25
280
297
82
392
340
394
360
32
40
120
TD-100-8-25
25
25
304
320
82
416
364
418
384
32
50
145
TD-100-8-32
32
32
350
374
97
504
430
486
440
40
50
145
TD-125-8-32
32
32
380
402
97
534
460
516
470
40
63
182
TD-125-8-40
40
40
400
428
97
540
470
550
500
40
63
182
Disk
Code
N
P
Turret Type
Suitable Boring
bar holder
Suitable Axial
tool holder
TD-50-8-12
R86
12
BTP-50
BTH-12-20
ATH-12-12
TD-50-8-16
R80
16
BTP-50
BTH-16-25
ATH-16-16
TD-63-8-16
R85
16
BTP-63
BTH-16-25
ATH-16-16
TD-63-8-20
R100
16
BTP-63
BTH-16-25
ATH-16-20
TD-80-8-20
R112
16
BTP-80
BTH-16-25
ATH-16-20
TD-80-8-25
R127
25
BTP-80
BTH-25-32
ATH-25-25
TD-100-8-25
R136
25
BTP-100
BTH-25-32
ATH-25-25
TD-100-8-32
R157
25
BTP-100
BTH-25-32
ATH-25-32
TD-125-8-32
R169
25
BTP-125
BTH-25-40
ATH-25-32
TD-125-8-40
R178
25
BTP-125
BTH-25-40
ATH-25-40
CODE
N
P
Turret Type
Suitable Boring
bar holder
Suitable Axial
tool holder
TD-63-12-16
R86
16
BTP-63
BTH-16-25
ATH-16-16
TD-80-12-20
R82
16
BTP-80
BTH-16-25
ATH-16-20
TD-80-12-25
R100
25
BTP-80
BTH-25-32
ATH-16-16
TD-100-12-25
R100
25
BTP-100
BTH-25-32
ATH-25-25
TD-125-12-32
R118
25
BTP-125
BTH-25-40
ATH-25-32
BORING TOOL HOLDER
CODE
BTH-12-20
BTH-16-25
BTH-16-25
BTH-25-32
BTH-25-40
BTH-25-40
AXIAL TOOL HOLDER
CODE
ATH-12-12
ATH-16-16
ATH-16-20
ATH-25-25
ATH-25-32
ATH-25-40
NOTE
:
All dimensions in mm.
Inch series tool disc's also available.
Specify Rear or Front mounting.
<
