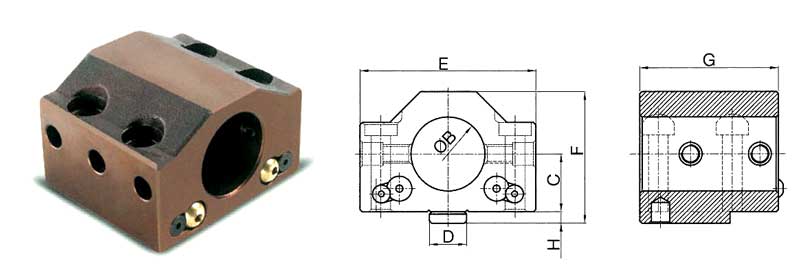

Standard Toolholder
A
B
C
D
E
F
G
H
Fits disk type
BTH-16-20 CH18
16
20
18
16
66
40
51
5
TD50-8-16-180
TD63-12-16-236
BHT-16-25 CH18
16
25
18
16
66
40
51
5
BHT-20-20 CH18
20
20
18
16
76
42.5
60
5
TD50-8-20-200
TD63-8-20-220
TD80-12-20-286
BHT-20-35 CH18
20
25
18
16
76
42.5
60
5
BHT-20-32 CH18
20
32
18
16
76
42.5
60
5
BHT-20-25 CH25
20
25
25
16
76
57
60
5
TD80-8-25-280
TD100-8-25-304
TD100-12-25-350
TD125-12-25-380
BHT-20-32 CH25
20
32
25
16
76
57
60
5
BHT-25-32 CH30
25
32
30
25
92
64
80
5
BHT-25-40 CH30
25
40
30
25
92
64
80
5
TD80-8-25-280
TD100-8-25-304
TD100-12-25-350
TD125-12-25-380
BHT-25-40 CH40
25
40
40
25
94
74
80
5
BHT-32-40 CH40
32
40
40
25
114
80
95
5
BHT-32-50 CH40
32
50
40
25
114
80
95
5
TD100-8-32-350
TD125-8-32-380
TD125-12-32-436
BHT-40-40 CH35
40
40
35
25
142
75
95
5
BHT-40-50 CH35
40
50
35
25
142
75
95
5
TD125-8-40-400
BHT-160-60 CH40
40
60
40
40
142
85
124
5
TD160-8-40-480

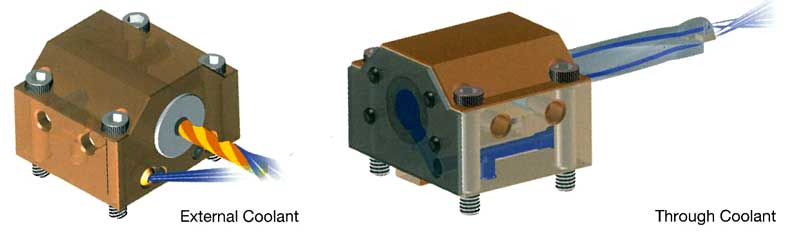

Tollholders can be ordered with capped ends for use with U drills
and other coolant through the spindle tools
