We stock the 3 stage TPHK2T3-3S in 220-440/3/60, ( stainless impellers)
and can get all other models on short order.
The Walrus pumps can be substituted for many Grundfos pumps.

walrus multi stage high pressure pumps series tphk8T
These pumps are clones of the Grundfos pumps.

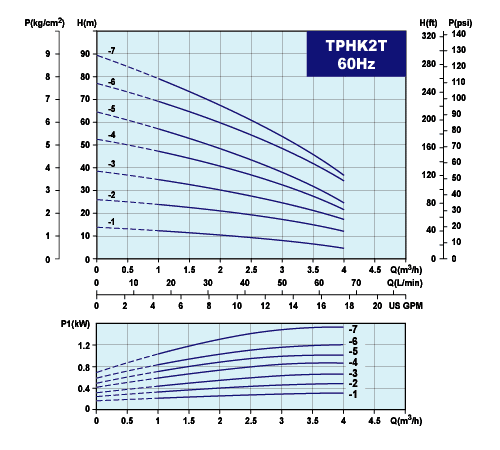

Perfomance Curves:
performance curves for walrus high pressure pumps
Applications:

The WALRUS TPHK Series is vertical multistage centrifugal pump, designed for industrial use, specially for machine tools, to carry fluids such as water, coolant, light oil and other clean, non aggressive matters.

- Industrial circulation system
- Washing/cleaning system
- Filtration system
Pump Construction:
Vertical multistage centrifugal pump, co-axial pump/motor design, impellers mounted on extended motor shaft. Main working parts are stainless steel.

Motor:
Nominal speed: 3500 rpm
Frequency range: 60 Hz
Standard voltages: 220V/380V
Protection class: IP54
Insulation class: F.

Operation Conditions :
Ambient temperature: Up to 50°C / 122°F
Liquid temperature range: Up to 90°C / 194°F
Flow: Up to 90 (L/min) / 24 (GPM)
Head: Up to 80 (Meters) / 263(Ft) / 114(Psi)
Operating pressure: Max. 10 kg/cm²
Submerged depth: Min. 65mm
 Model Code:

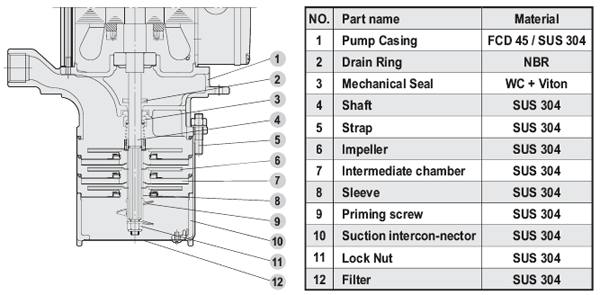

Sectional Drawing:
 construction diagrams of walrus high pressure pumps

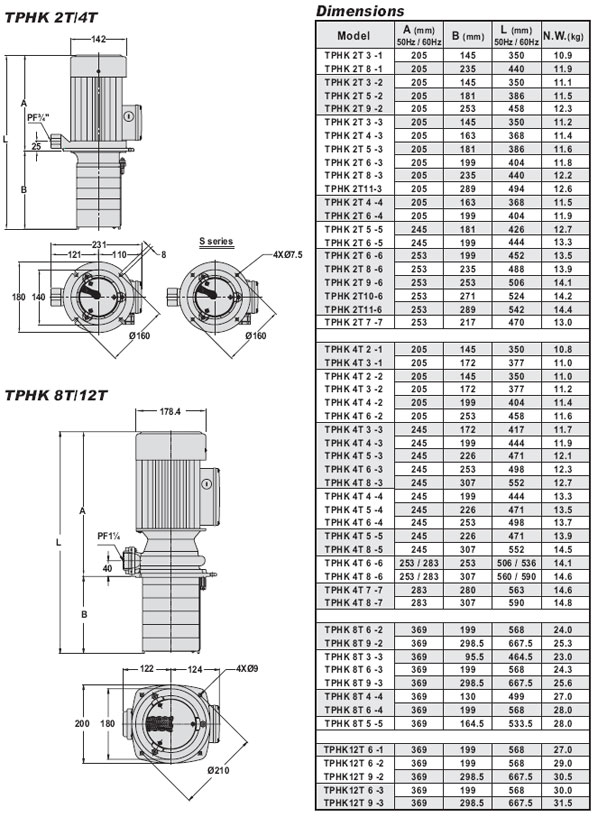

Dimensions:
a
dimensioned drawings of walrus high pressure series pumps

MODEL INPUT POWER (W) CAPACITY (L/MIN) MAX HEAD (M) DISCHARGE (inch) FREQUENCY PHASE VOLTAGE


TPHK 2T3-1 360 60/75 10 / 14 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK 2T3-2 560 60/75 18 / 26 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK 2T3-3 750 75/85 28 / 40 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK 2T5-3 750 75/85 28 / 40 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK 2T4-4 910 60/75 38 / 53 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK 2T5-5 1060 60/75 46 / 68 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK 2T6-6 1340 80/90 56 / 80 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK 2T8-6 1340 80/90 56 / 80 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK 2T9-6 1340 80/90 56 / 80 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK 2T10-6 1340 80/90 56 / 80 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK 2T11-6 1340 80/90 56 / 80 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK2T8-1 360 60/75 10/14 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
  TPHK-2T5-2   560 60/75 18/26 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK-2T9-2 560 60/75 18/26 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK-2T4-3 750 75/85 28 / 40 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK-2T6-3 750 75/85 28 / 40 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK-2T8-3 750 75/85 28 / 40 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK-2T11-3 750 75/85 28 / 40 3/4 50/60HZ 3 200~255/380~440 50HZ  200~255/380~480 60HZ
TPHK-2T7-7 1580 63/90 45/60 3/4 50/60HZ 3 220/380

<
