Little Giant Machine Tool Coolant Pumps and Systems

NK-1 210 US GPH 110 V or 220 V
with 6' cord Catalog # 526003

Head (ft)	Flow (GPH)	Head (m)	Flow (LPH)
1	210	0.3	794.9
3	180	0.9	681.4
5	150	1.5	567.8

Little Giant NK-1 coolant submersible coolant pump

NK-2
325 GPH (20 L/min) 110 OR 220/1/60

Head (ft)	Flow (GPH)	Head (m)	Flow (LPH)
1	325	0.3	1230.3
3	300	0.9	1135.6
5	270	1.5	1022.1
10	130	3.0	492.1

Little Giant NK-2 submersible machine tool coolant pump

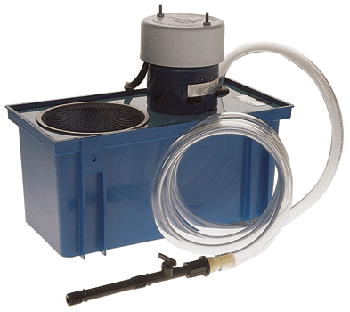

Little Giant VMC-1 Little Giant Pump Company Machine Tool Coolant Units are designed for use with virtually any machine tool operational need. Units are engineered so that the flow of coolant can be regulated to desired amount or completely shut off without harmful effects to the motor. MTC units use only cetrifugal-type pumps (see chart). It is recommended that all machine tool pumps have Viton® shaft seals, if shaft seal is required
.
- 1 US Gallon polypropylene tank
- stainless steel chip collector
- plastic nozzle with valve

Head (ft)	Flow (GPH)	Head (m)	Flow (LPH)
1	108	0.3	408.8
2	104	0.6	393.7
3	100	0.9	378.5
6	86	1.8	325.5
9	60	2.7	227.1

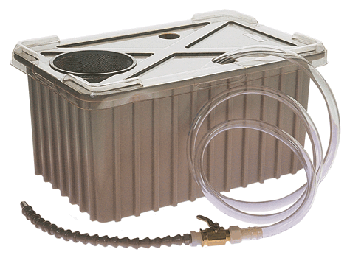

Little Giant MCT-5P self contained machine tool coolant system, pump sold separately
- 5 US Gal polyethylene tank
- metal chip collector basket
- internal baffle
- 6' plastic hose
- plastic flex nozzle with brass valve

with NK1 pump 70 USG/hour water soluable coolant
with NK2 pump 82 USG/hour water soluable coolant

Little Giant MCT-10 self contained machine tool coolant system, pump sold separately.
-10 US Gal tank
- 4' Neoprene hose with brass fittings
- plastic flex nozzle with brass valve
- removable ship collector tray with splash deflector

Recommended pumps
3E-12N, 4E-34N, 5-MSP, or 6-CIMR

Little giant 560300 MCT-10 10 gallon machine tool coolant kit
