Download the Erlo full line catalog
Erlo S Series Drills
Bench and cabinet drills with 3/4", 1" and 1 3/16" capacity models
"R" in the model designator indicates "coolant" ( refrigeration )

SERIES
S
MACHINE TYPE
BENCH TYPE DRILLING MACHINES
MODELS
S.18
SR.18
S.25
SR.25
S.30
SR.30
DRILLING CAPACITY
18
25
30
TAPPING CAPACITY
M.14
M.18
M.25
TRANSMISSION
V-BELT
FEED/CLUTCH
MANUAL
SPEEDS RANGE & No. (rpm.)
(10) 295-4800
MAIN MOTOR POWER
0,7 / 1,2 HP
1 / 1,5 HP
1,2 / 2 HP
MORSE TAPER
MT 2
MT 3
SPINDLE TRAVEL mm.
120 mm
COLUMN-SPINDLE DISTANCE mm.
256
COLUMN DIAMETER mm.
Ø 98
LIGHT
OPTIONAL
ROTATING AND TILTING TABLE
OPTIONAL
TOOL EJECTOR
YES
COOLANT EQUIPMENT
NO
YES
NO
YES
NO
YES
ELECTRICAL EQUIPMENT AT LOW VOLTAGE
YES
SENSITIVE HANDLE
OPTIONAL
ADJUSTABLEDEPTH STOP
YES
S Series Drill Presses
Erlo SR-25 drill on cabinet base
shown with optional cabinet base with shelves.
Variable speed models are avaiable.  See the SV series page

Erlo SR-18 bench drill press
standard version
Erlo SR-18-MF bench drill with fixed intermediate table
with fixed intermediate table (non-tilting)

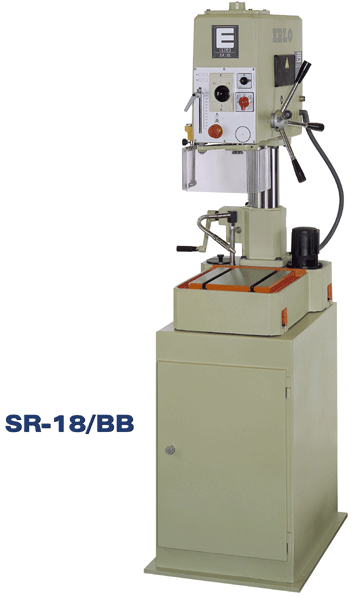

Erlo SR-18-BB bench drill on cabinet base
with cabinet base with storage shelves

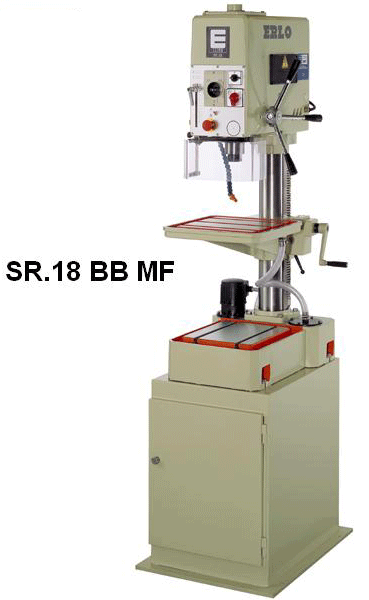

Erlo SR-18 drill with optional table
with cabinet base and fixed intermediate table

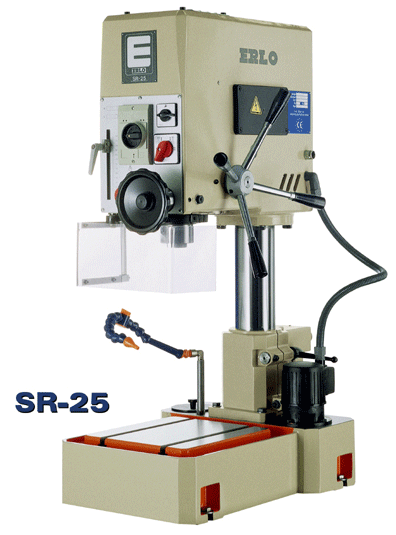

Erlo SR-25 bench drill
standard version

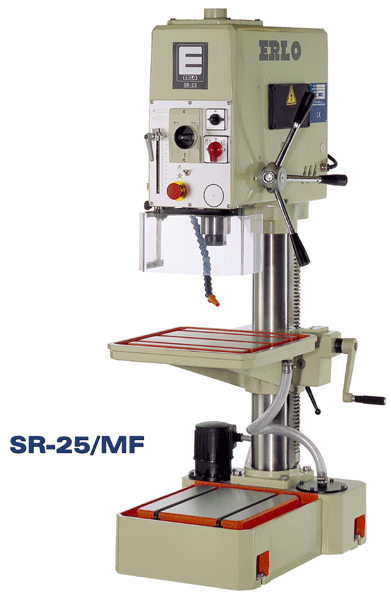

Erlo SR-25-MF Bench drill press with fixed intermediate table
with fixed ( non-tilting ) intermediate table
Erlo SR-25-MG bench drill with iintermdiate rotating table
with rotating intermediate table

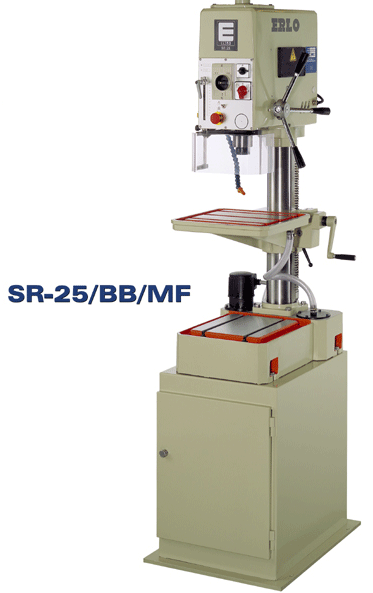

Erlo SR-25 drill on cabinet base with fixed intermediate table
with fixed intermediate table and cabinet base

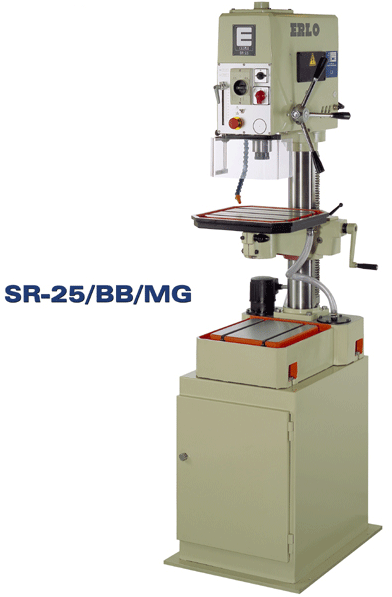

Erlo SR-25-MG bench drill with rotating table on cabinet base
with cabinet base and rotating table

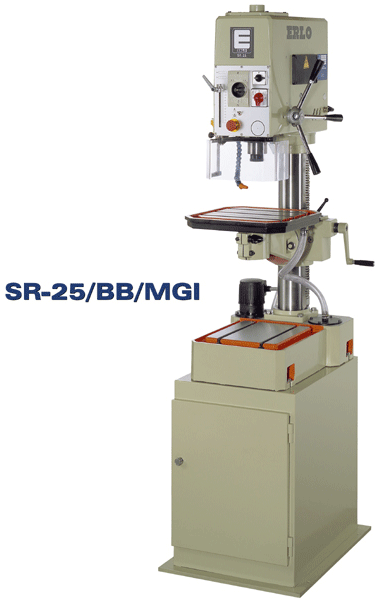

Erlo SR-25 bench drill with rotating and tilting table on cabinet base
with cabing base and rotating and tilting table

 Options
Ordering code
DRILL GUARD WITH STOP MICROSWITCH
STANDARD
WORKLIGHT
10010
FRONT WHEEL FOR FINE SENSITIVE FEED
10020
DIGITAL SPEED READER
10021
TURNING FOR TAPPING
10030
TAPPING SYSTEM BY CYCLE TIMER
10040
TAPPING SYSTEM BY LEAD SCREW WITH BRAKING DEVICE (incl. 1 lead screw)
10070
ADDITIONAL LEAD SCREWS
10080
BASE CABINET WITH DOOR AND SHELVE
10084
INTERMEDIATE TABLE
10087
ROTATING INTERMEDIATE TABLE
10088
ROTATING AND TILTING INTERMEDIATE TABLE
10089
MULTISPINDLE HEADSTOCK COUPLING WORKS
10090
MULTISPINDLE HEADSTOCK GUIDING
10100
COLUMN RISER
10110
DRILL GUARD FOR MULTISPINDLE HEADSTOCKS
10115
AUTOMATIC DRILLING FEED BY HYDROBLOCK SYSTEM
10120
PNEUMATIC BALANCED FOR MULTISPINDLE HEADSTOCK
10125
VDE ELECTRICAL EQUIPMENT
10131
COOLANT OF EACH SPINDLE OF THE MULTISPINDLE HEADSTOCK
10150


<
