Fresmak Arnold vice log

Visit the factory web site in Spain
Fresmak vises vices on a tombstone

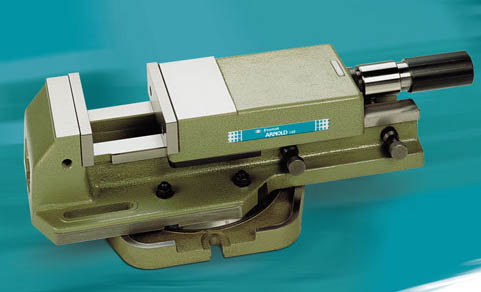

classic hydraulic vise

The all time favorite:

Arnold Classic High Pressure Hydraulic Vice

Jaw width 3-1/2" to 8" (90, 125, 160, 200mm)
Openning to 6" to 14-3/4"   ( 155 to 375mm)
Maximum clamping pressure 5,500 to 17,600 lbs
    (2500 to 8000 Kgs ).

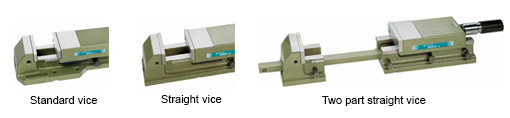

versions of the classic 3 Versions of the classic are available
- the standard vice that will fit on the swivel base
- the straight vise with ground parallel sides for mounting
    in groups or clusters
- the two part vise that can be used with an extension bar
     of any length for very large parts

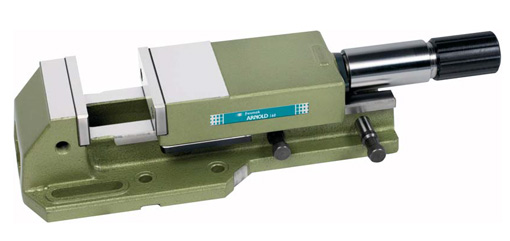

high pressure mechanical vise Arnold Classic High Pressure Mechanical Vice

The classic with mechanical clamping force generator.Jaw width 3-1/2" to 8" (90, 125, 160, 200mm)
Openning to 6" to 14-3/4"   ( 155 to 375mm)
Maximum clamping pressure 5,500 to 17,600 lbs
    (2500 to 8000 Kgs )

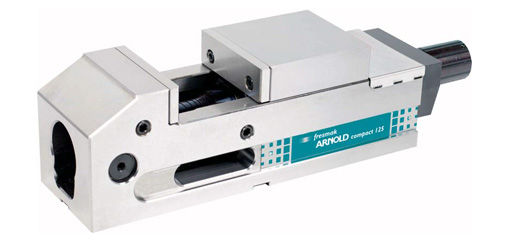

arnold compact vice Arnold Compact high pressure vice.

Jaw width 3" to 5"
Openning 5" to 12"
Maximum clamping pressure 2.5 to 5 metric tons.

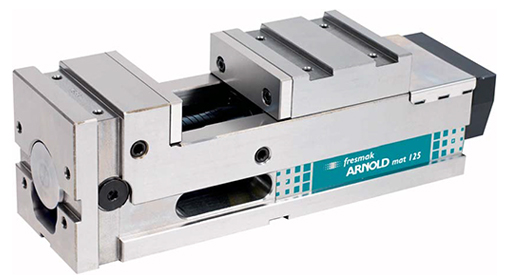

arnold mat vise Arnold Mat     Hydraulic or mechanical

Jaw width 3-1/2" to 8" ( 207, 355, 488, 486 mm)
Openning to 6" to 14-3/4"   ( 155 to 375mm)
Maximum clamping pressure 5,500 to 17,600 lbs
    (2500 to 8000 Kgs ).


Available in pneumatic and automatic versions.

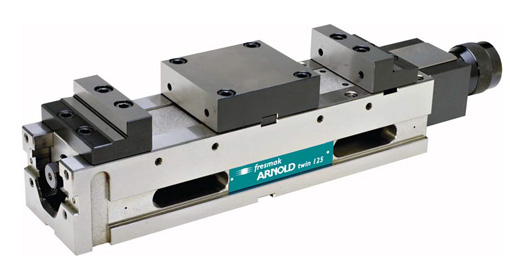

arnold twin vice Arnold Twin series for clamping two workpieces

Jaw width 90 and 125 mm
Opening, many possibiltiies, see that table on the details
    page.
Maximum clamping pressure 2.5 to 5 metric tons.

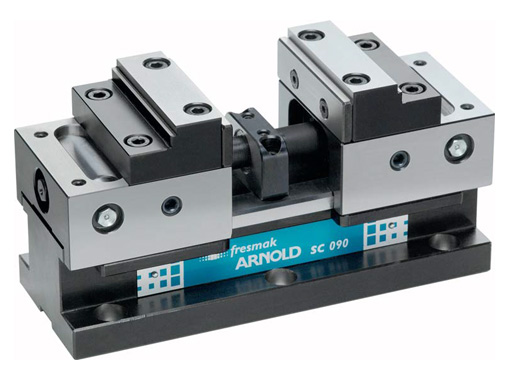

arnold self centering vise Arnold SC Self Centering vices
with mechanical clamping


see the BLOCK-SC series for hydraulic clamping

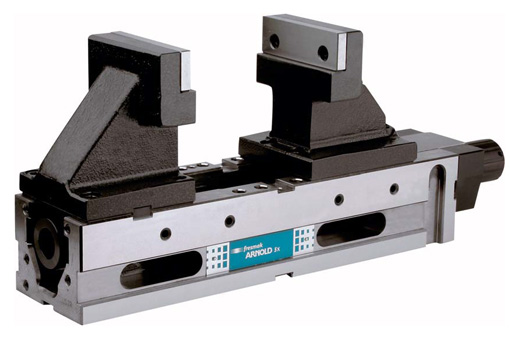

Arnold 5X high pressure vice Arnold 5X  with high jaws alowing clearance for 5 axis work
    in two sizes

Jaw width  5"
Workpiece ranges 18 - 228 or 38 -240
Maximum clamping pressure  3 metric tons

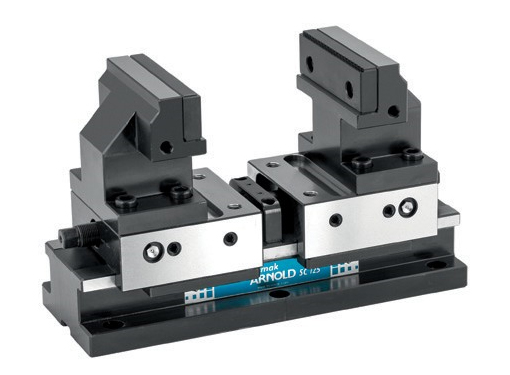

Arnold 5X self centering vices Arnold 5X-SC  self centering vices
   for 5 axis machining

jaw widths of 90 and 125mm
clamping pressure to 4 metric tons

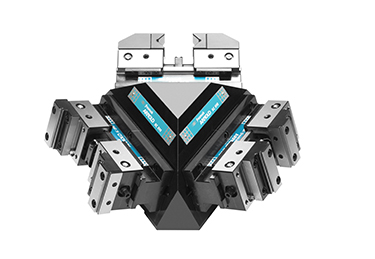

Arnold Fresmak pyramid vices Arnold Pyramid self centering vices
    for 5 axis machining

jaw widths 90 or 125 mm

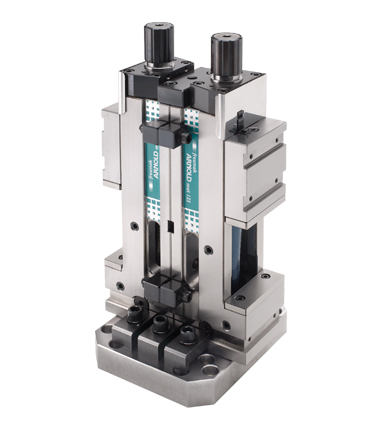

Arnold Duo Mat tombstone vices Arnold Duo Mat Tombstone Vices

Two vices on one base

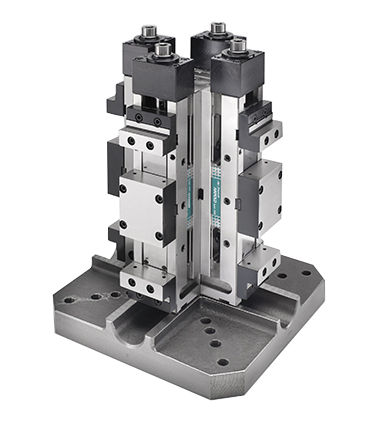

Arnold Duo Twin tombstone vices Arnold Duo Twin tombstone vices

4 vises on one base holding 4 parts

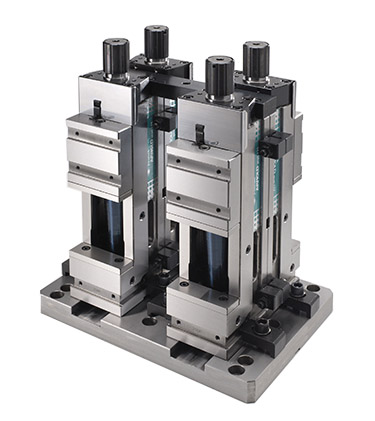

double twin vises Arnold Double twin tombstone vices

4 self centering vises holding 8 parts on one base
Arnold Durmak vices Arnold Durmak vices

for clamping irregular parts, with one swivelling jaw

jaw widths of 125 or 160 mm
clamping pressures of 4 or 5 metric tons

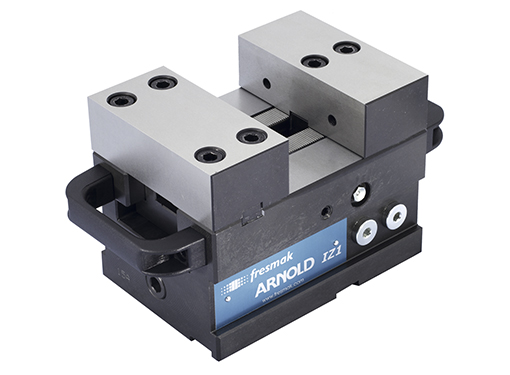

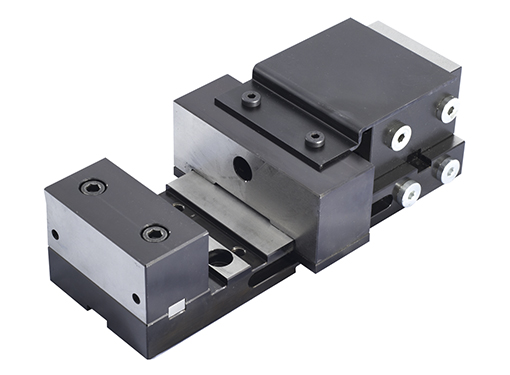

iz1 vice
arnold vice

Link to the Fresmak factory web site to see the specs for all their fine products
