Gabro Box and Pan Brakes / Sheet metal folders
The most versatile benders available
making a box on the Gabro box and pan brake making the final bend to totally closed box

These unique folders use standard angle iron
for the upper tool. Very inexpensive.  You can
cut the angle iron to fit the inside of the job.
Folding a hanger totally closed.

you just can't do this on a traditional finger brake.

It can fold a closed profile down to just over the
size of the angle iron used for the upper forming tool

There are great examples in the operator manual
that you can download .
forming a lip in a port on a sheet Forming a ledge inside a port.
Forming a cylinder.
   Made in England
Gabro sheet metal folders

BF-600
Gabro bf600 box and pan brake
Maximum length of bend Thickness of material
with 2g radius
BF 600
Mild steel
Aluminium
620 mm
1.2 mm
1.6 mm
300 mm
2.0 mm
2.6 mm
100 mm
3.2 mm
4.0 mm
25 mm
5.0 mm
6.0 mm

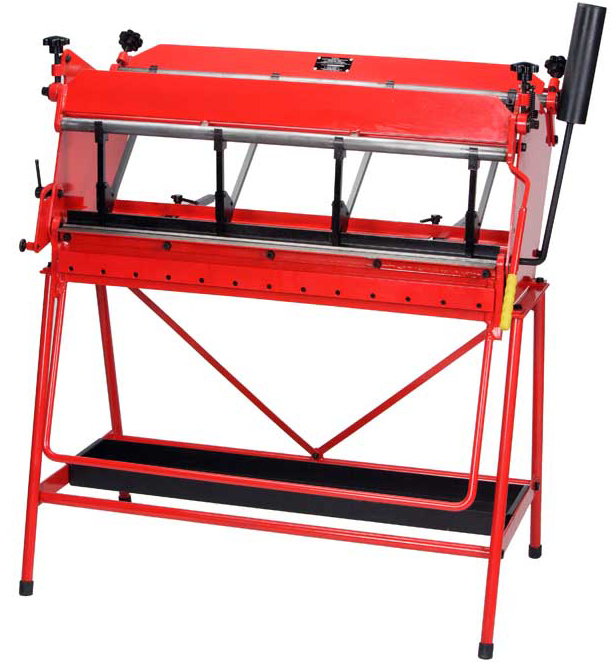

BF-1000
Gabro box and pan brake
Maximum length of bend Thickness of material
with 2g radius
BF 1000
Mild steel
Aluminium
1000 mm
1.2 mm
1.6 mm
500 mm
2.0 mm
2.6 mm
100 mm
3.2 mm
4.0 mm
25 mm
5.0 mm
6.0 mm
