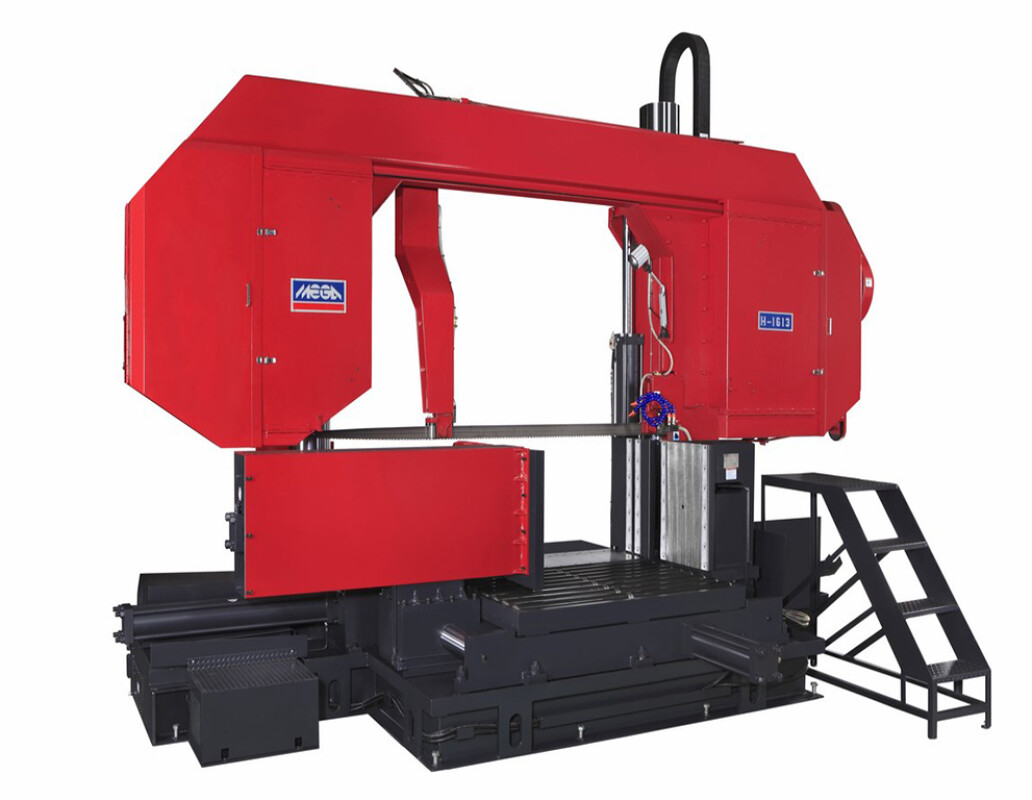

Mega H-1613 51" Semi Automatic |
| MODEL H-1613 Standard Features 1. Precise digital counter for cut depth setting. 2. Auto head-elevation after complete a cut. 3. Power-driven blade cleaning brush and coolant cleaning flush hose. 4. Idle wheel motion detector for bleade jam/break shut-off. 5. Carbide guides with hydraulic control. 6. Hydraulic quick acting vise jaw for stock clamping. 7. Hydraulic shuttle vise for stock feeding. 8. Motor and chain drive roller table. 9. Hydraulic blade tension. |
Standard Accessories | |
| 1. Tool with tool box...................... | 1 set | |
| 2. 10 FT (3.3M) long Motor and chain drive roller table | 1 set | |
| 3. Band-Cleaning wire brush...... | 2 pcs | |
| 4. Band saw blade........................ | 1 pc | |
| 5.Instruction manual and parts list | 1 copy | |
| Optional Accessories 1. Automatic chip conveyor. 2. Variable blade-speed drive. 3. Variable vise pressure system. 4. Amplifying valve for auto-adjusting cutting feed-rate. |
||
| H-1613 | |
| Cutting Capacity |  1300,
1600 x 1300 mm51.2", 63"x 51.2" |
| Blade Size | 12900 x 80 x 1.6 mm 507" x 3.15" x 0.063" |
| Blade Speed | 12 - 60 m/m 39 - 197 FPM variable speed drive |
| Motor Output | 15 Kw on blade, 3.73 Kw hydraulic 20 Hp on blade, 5 Hp hydraulic |
| Shipping volume | 6300x 2900 x 3900mm 20.67 x 9.51 x 12.8 feet |
| Weight Net / Gross | 20300 / 21800 Kg 44660 / 47960 lb |
 |
