Semi Automatic Mitre Cutting Bandsaws
 12" and 18" and 20" Capacity
Mega BS450M and BS760M mitre Cutting bandsaws
BS-450-M



BS-760-M



BS-1000-M


Power adjustment of mitre angle
STANDARD FEATURES
1. Carbide and roller blade guides
2. Automatic head elevation  control
3. Power-driven blade cleaning brush
4. Hydraulic quick-setting vise
5. Coolant cleaning flush hose
6. Quick adjusting carbide saw guide
7. pressure compensation feed-rate control
8. Motorized turn table mitre Cutting device
STANDARD ACCESSORIES
1. Tools with tool box 1  pc
2. Blade cleaning wire brush 2 pcs>
3. Band sawblade 1 pc
4. Instruction manual 1 copy>

  BS - 450 M BS - 760 M BS - 1000 M
Cutting Mitre
AT 90°
H Beams / Pipes 		Solid 320 MM DIA
Solid 320 x 320 SQR.
320 MM O.D.
H 510 SOR 510 x 320 		Solid 460 MM DIA.
Solid 460 SQR.
460 MM O.D.
H 760 x 400 MM 		Solid 500MM DIA.
Solid 500SQR.
460 MM O.D.
H 1000 x 500MM
Mitre Cutting
At 60°
H Beams / Pipes 		Solid 300 MM DIA.
Solid 300 MM SQR.
320 MM DIA.
H 357 x 320 MM 		Solid 420 MM DIA.
Solid 420 MM SQR.
460 MM O.D.
H 590 x 400 MM 		Solid 400 MM DIA.
Solid 400MM SQR.
500 MM O.D.
H 590 x 475  MM
Mitre Cutting
At 45°
H Beams / Pipes 		Solid 250 MM DIA.
Solid 250 MM SOR.
320 MM DIA.
H 213 x 320 MM 		Solid 330 MM DIA.
Solid 330 MM SQR.
460 MM O.D.
H 500 x 400 MM 		Solid 350 MM DIA.
Solid 350 MM SQR.
460 MM O.D.
H 590 x 475 MM
Mitre Cutting
At 30°
H Beams / Pipes 		Solid 83 MM DIA
Solid 83 MM SQR.
83 MM DIA.
H 83 x 320 MM 		Solid 220 MM DIA
Solid 220 MM SQR.
220 MM O.D.
H 220 x 400 MM 		Solid 330 MM DIA
Solid 330 MM SQR.
330MM O.D.
H 330 x 475 MM
Blade 34 x 1.1t 4115 MM 41 x 1.3t 5500 MM 54 x 1.3 7028 MM
1.25 x 0.42 162 IN 1.61 x 0.51 209 IN 2 1/8 x 0.51x 276 IN
Blade Speed M / MIN 25, 32, 42, 55, 70, 80 MPM Opt variable 25 - 80 M / MIN
F / MIN 82, 105, 138, 180, 230, 260 Opt variable 82 - 260 F/ MIN
Motors BLADE 5 HP BLADE 7.5 HP BLADE 15 HP Hyd .5
HYD. 1 HP HYD. 2 HP HYD. 2 HP
Weight Net / Gross 1770 / 1970 KGS
3898 / 4339 lbs		 2600 / 2900 KGS
5727 / 6388 lbs		 4500 / 5200 Kgs
10,132 / 11453 lbs

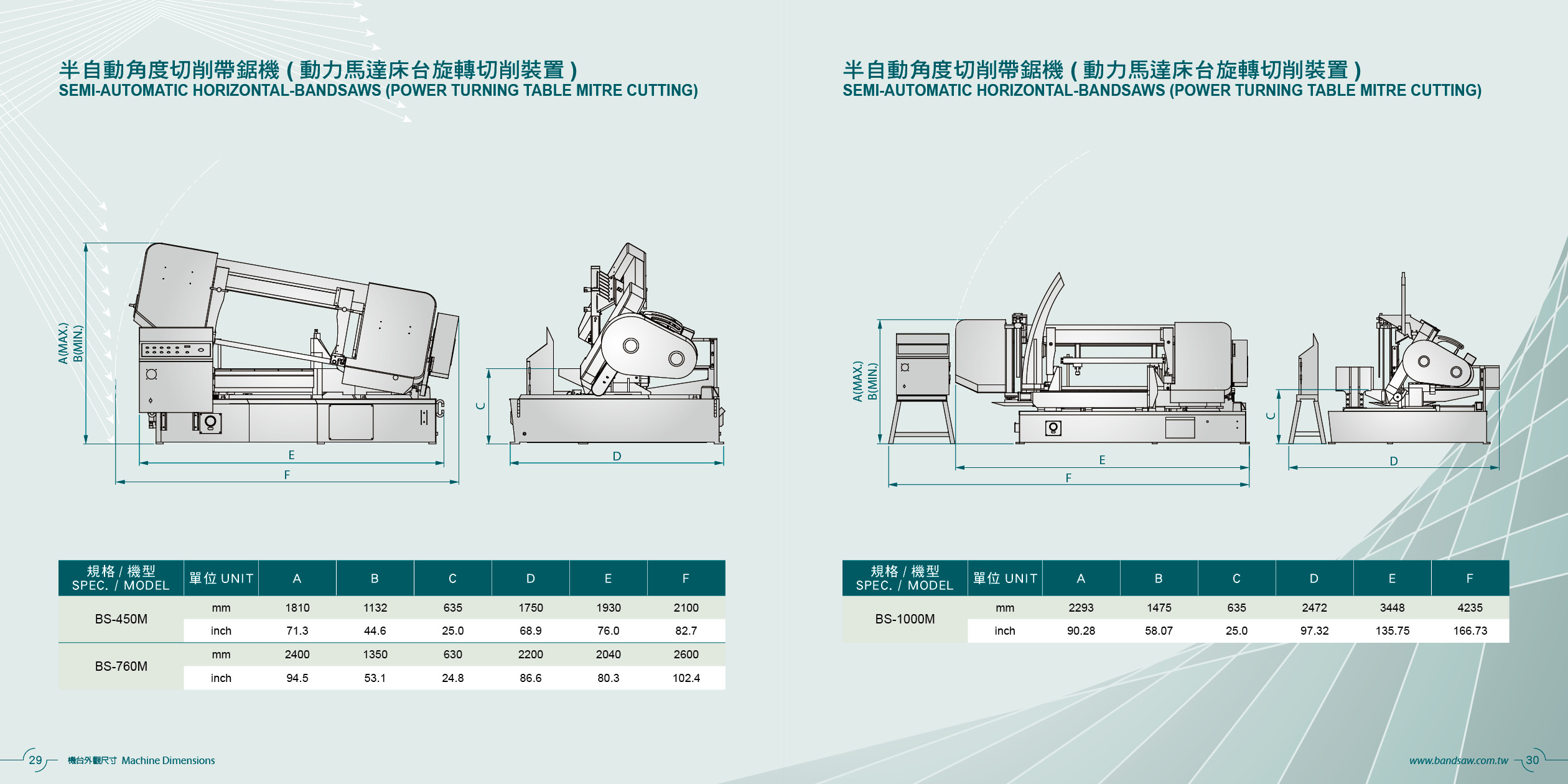

dimensional drawings of Mega BS450 and 760 horizontal bandsaws
>
