Mitee-Bite T-slot clamps

T-Slot clamps and clamp kits

Hex key not included

The original MITEE-BITE T-Slot Clamp combines our
unique cam action clamping element with a T-nut.

-Locks in machine T-slot for low profile clamping.
-Makes fast set-ups possible right on the machine table.
-Brass hex follows contour of unusual shaped parts.
-Packaged in pairs or complete kits.(see kits below)

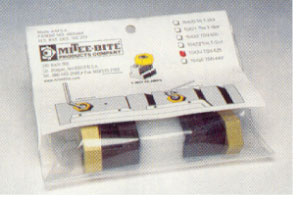

Inch Clamps

art Number	T-Slot Size	Holding Force (lbs)	Number of Clamps Per Pack	Price Cdn $

10420	3/8	800	2	$ 60.00
10421	7/16	800	2	$ 60.00
10422	1/2	2000	2	$ 60.00
10423	9/16	2000	2	$ 60.00
10424	5/8	3000	2	$ 60.00
10426	11/16	3000	2	$ 60.00

Metric Clamps

Part Number	T-Slot Size	Torque (N.m.)	Holding Force (N.)	Number of Clamps Per Pack	Price Cdn $
50422	8mm	8.50	3558	2	$ 60.00
50424	10	8.50	3558	2	$ 60.00
50426	12	11.30	3355	2	$ 60.00
50428	14	28.00	8900	2	$ 60.00
50430	16	61.00	13340	2	$ 60.00
50432	18	61.00	13340	2	$ 64.75
50434	20	135.00	26700	2	$ 83.20
50436	22	135.00	26700	2	$ 106.00

Mitee-Bite T-Slot kits

		The original MITEE-BITE T-Slot Clamp combines our unique cam action clamping element with a T-nut. Locks in machine T-slot for low profile clamping. Makes fast set-ups possible right on the machine table. Brass hex follows contour of unusual shaped parts Packaged in pairs or complete kits

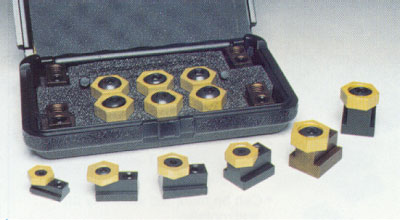

		The Mitee-Bite Kit Contains: 4 Mitee-Bite T-Nuts 6 Mitee-Bite Fixture Clamps 2 Hex Keys

Inch Kits

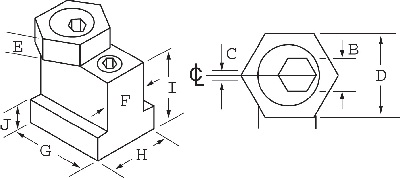

Part Number	Cam Screw	T-Slot Size	B	C	D	E	F	G	H	I	J	Torque (Ft/Lbs)	Holding Force (Lbs)	Price Cdn $
10640	1/4 - 20	3/8	1/8	.040	.625	.190	.365	.89	.500	.375	.150	6.2	800	$ 140.50
10641	5/16 - 18	7/16	3/16	.040	.812	.190	.425	1.10	.625	.625	.220	8.3	800	$ 140.50
10642	3/8 - 16	1/2	3/16	.050	.812	.250	.490	1.20	.750	.625	.235	20.8	2,000	$140.50
10643	3/8 - 16	9/16	3/16	.050	.812	.250	.550	1.20	.875	.750	.300	20.8	2,000	$ 140.50
10644	1/2 - 13	5/8	5/16	.100	1.000	.375	.620	1.27	1.000	.875	.425	45.0	3,000	$ 140.50
10646	1/2 - 13	11/16	5/16	.100	1.000	.375	.675	1.37	1.000	1.000	.350	45.0	3,000	$ 140.50

Metric Kits

Part Number	Cam Screw	T-Slot Size	B	C	D	E	F	G	H	I	Torque (N.m.)	Holding Force (N)	Cdn $
50642	M6 x 1.00	8mm	5mm	1.01	15.86	4.75	8	23.2	12.7	9.5	8.50	3558	$ 140.50
50644	M6 x 1.00	10	5	1.01	15.86	4.75	10	23.2	14.2	14.2	8.50	3558	$ 140.50
50646	M8 x 1.25	12	5	1.01	20.62	4.75	12	27.9	15.9	15.9	11.30	3355	$ 140.50
50648	M10 x 1.50	14	7	1.52	20.62	6.35	14	30.5	22.4	22.2	28.00	8900	$ 140.50
50650	M12 x 1.75	16	8	2.03	25.40	9.53	16	30.9	25.4	22.2	61.00	13340	$ 140.50
50652	M12 x 1.75	18	8	2.03	25.40	9.53	18	34.7	28.6	28.6	61.00	13340	$ 154.50
50654	M16 x 2.00	20	12	2.54	30.15	12.70	20	39.2	31.8	31.8	135.00	26700	$ 206.25
50656	M16 x 2.00	22	12	2.54	30.15	12.70	22	44.3	34.9	41.3	135.00	26700	$ 293.50
