| Multi-Fixture clamps and stops | |
 |

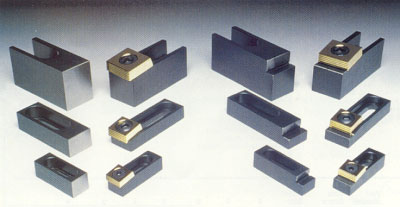

The MITEE-BITE Multi-Fixture Clamp offers increased
versatility through its unique riser clamp design. - Provides flexible set ups for hard to hold parts - Works in both plates with tapped hole layouts or T-slot configurations. - Can be mounted vertically or horizontally. - Stops locate workpiece for repeat positioning. - Larger sizes are ideal for mold shop applications. - Tapered mounting slot prevents movement when clamping pressure is applied. - Steps, as well as end faces of flat stops, are precision ground. MITEE-BITE also offers clamps and stops without a rest pad. These are designed for contacting a part at a higher point when the workpiece is resting on the table. |
| The Multi-Fixture Clamps and Stops with a step offers increased versatility through its unique riser clamp design. These support workpiece off machine table for milling drilling. without step, grip at higher point for more clamping strength better stability. hardened ground offer quick cam action are designed use on work cubes as well tables tapped holes T-Slot configurations. adjust to unusual shaped parts because of action, element always makes maximum contact workpiece.> | |
 |
 |
|
 |
||
 |
||||||||||||||||

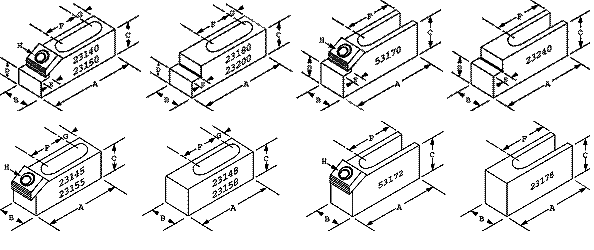

| Part Number |
Item | A | B | C | D | +.0000 -.0005 |
E | F | G | Cam Screw H |
Torque (Ft/Lbs) |
Holding Force (Lbs) |
Mounting Screw |
Slot | ||
|
||||||||||||||||
| 23140 | Clamp | 2.50 | .75 | .62 | .4600 | .31 | .83 | .53 | 10372 | 8.3 | 2000 | 5/16 | Closed | $ 55.20 | ||
| 23180 | Stop | 2.50 | .75 | .75 | .4600 | .31 | 1.11 | .53 | NA | NA | NA | 5/16 | Closed | $ 46.50 | ||
|
||||||||||||||||
| 23150 | Clamp | 3.75 | 1.12 | .62 | .4800 | .37 | 1.68 | .50 | 10372 | 65.0 | 4000 | 1/2 | Closed | $ 54.55 | ||
| 23200 | Stop | 3.75 | 1.12 | .87 | .4800 | .37 | 1.68 | .50 | NA | NA | NA | 1/2 | Closed | $ 49.20 | ||
|
||||||||||||||||
| 53170 | Clamp | 4.21 | 1.50 | 1.62 | 1.3780 | .37 | 1.82 | NA | 50373 | 100.0 | 6000 | 5/8 | Open | $174.50 | ||
| 23240 | Stop | 4.21 | 1.50 | 2.00 | 1.3780 | .37 | 1.82 | NA | NA | NA | NA | 5/8 | Open | $169.20 | ||
|
||||||||||||||||
| 23145 | Clamp | 2.16 | .75 | .62 | NA | NA | .53 | 8.3 | 2000 | 5/16 | Closed | |||||
| 23148 | Stop | 2.20 | .75 | .75 | NA | NA | 1.11 | .53 | NA | NA | NA | 5/16 | Closed | |||
|
||||||||||||||||
| 23155 | Clamp | 3.37 | 1.12 | .62 | NA | NA | 1.68 | .50 | 10372 | 65.0 | 4000 | 1/2 | Closed | |||
| 23158 | Stop | 3.30 | 1.12 | .87 | NA | NA | 1.68 | .50 | NA | NA | NA | 1/2 | ||||
|
||||||||||||||||
| 53172 | Clamp | 3.80 | 1.50 | 1.62 | NA | NA | 1.82 | NA | 50373 | 100.0 | 6000 | 5/8 | Open | |||
| 23178 | Stop | 3.30 | 1.50 | 2.00 | NA | NA | 1.82 | NA | NA | NA | 5/8 | Open | ||||
|
||||||||||||||||
