Mitee-Bite Aluminum Sub-plates

Aluminum Sub Plates

Extruded Aluminum Sub Plates / Sub Tables are available in standard sizes in stock, as well as in custom lengths to order. Standard sizes are premachined to .005" flatness and parallelism per foot.

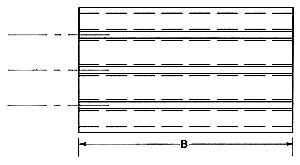

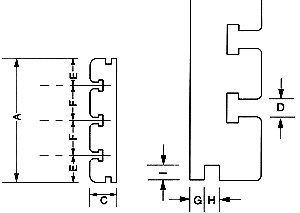

Part Number*	A x B x C	T-Slots	D	E	F	G	H	I	lbs.	Price Cdn $

22913	9.0 x 13.0 x 1.48	3	5/8	2.00	2.50	.49	.50	.50	13.3	$ 315.00
22918	9.0 x 18.0 x 1.48	3	5/8	2.00	2.50	.49	.50	.50	18.5
22924	9.0 x 24.0 x 1.48	3	5/8	2.00	2.50	.49	.50	.50	24.8	$ 585.00
22948	9 x 48 x 1.48	3	5/8	2						$ 710.00

CAD drawings are available on the factory web site
Custom Lengths are available as indicated below

Part Number	A	C	D	E	G	H	I

22900	9.00	1.48	5/8	2.00	.49	.50	.50

Subplates can be ordered in lengths up to 55 inches, not machined.
The last two digits of the part number should be the length of the plate in inches.
