Sacemi SPV Series of Immersion Style Coolant Pumps

SPV models up to 1-1/2 HP now stocked
Models SPV-12 right up to SPV-150.
Please check the immersion depth and voltage of your pump before calling


Normally stocked in 220-440 and 600/3/60 and single phase.

PART NUMBER	HP	Full Load Amps	Full Load Amps	Suction Height	Code

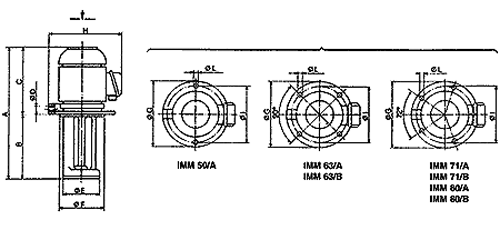

Frame Size		460V	575V	(B dimension in mm)
SPV12	0.12	0.33	0.32	90-120-170-220-270-350	NNH
SPV18	0.18	0.34	0.31	90-120-170-220-270-350	EME
SPV25	0.25	0.50	0.25	90-120-170-220-270-350	MMOO
SPV33	0.33	0.50	0.32	90-120-170-220-270-350	MAMO
SPV50	0.50	1.65	1.20	200-270-350-440-550	MIHI
SPV75	0.75	2.00	1.40	200-270-350-440-550	MEMI
SPV100	1.00	2.10	1.67	200-270-350-440-550	AIAI
SPV150	1.50	2.60	2.30	200-270-350-440-550	ANAI

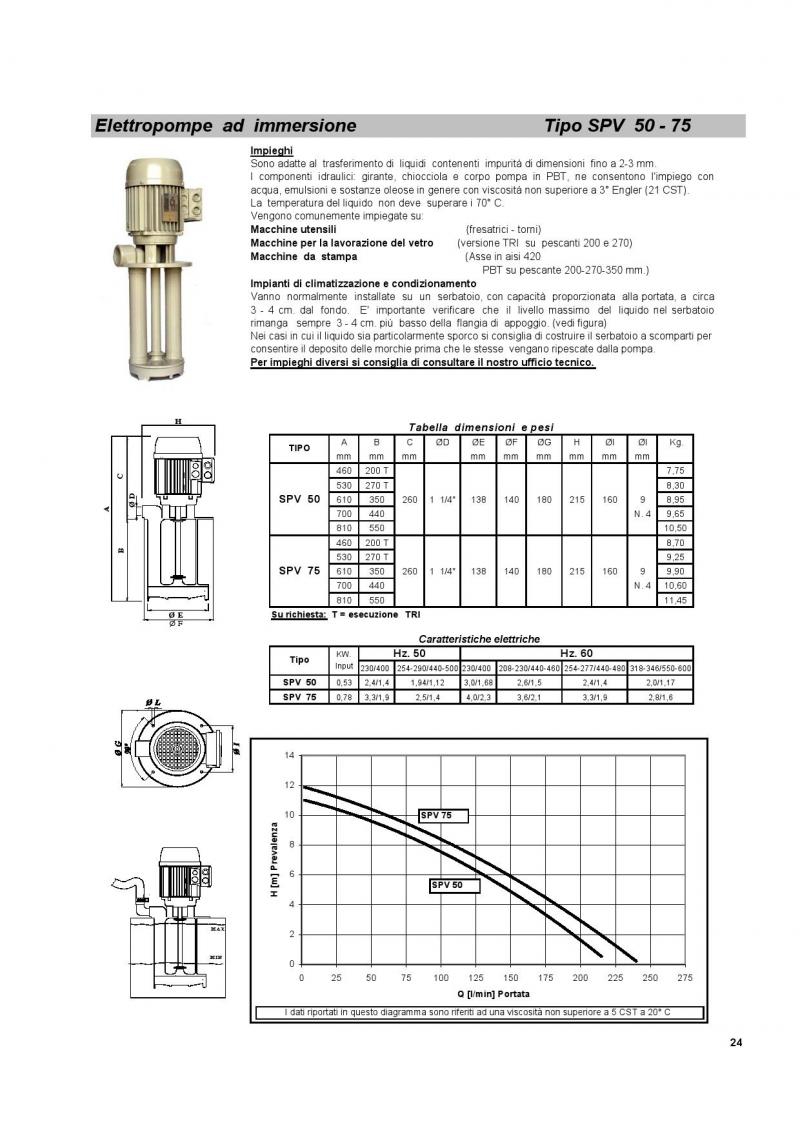

Download the complete Scemi Pump Catalog
