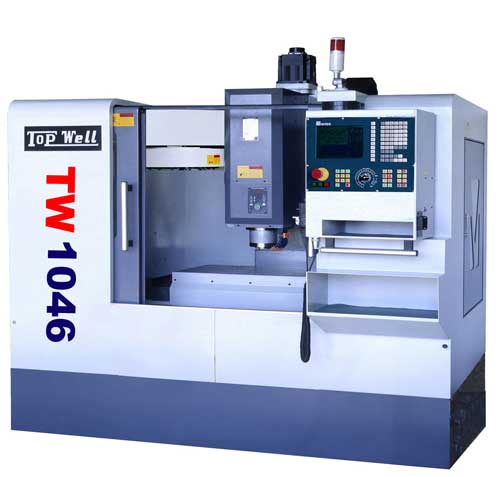

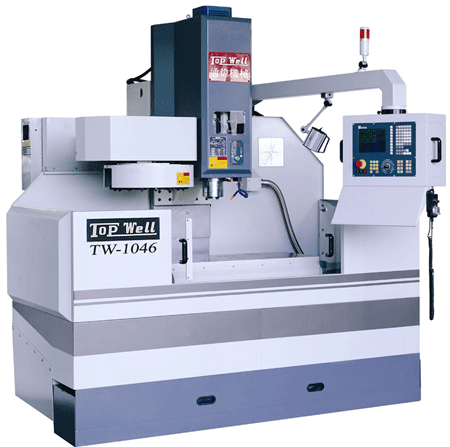

 available fully enclosed or semi-enclosed  Download the catalogue on linear way models Download the catalogue on box way models Download the catalogue on travelling column models |
| Travels |
39.37" x 18.11" |
1000 x 460 mm
|
| Table | 39.37" x 18.11" |
1000 x 460 mm |
| Spindle nose to table | 3,54" - 22.83" |
90 - 580 mm |
| Spindle C/L to column | 18.11" |
460mm |
| Max table load | 350 kg |
|
| Spindle | Cat-V-40 or BT-40
|
|
| Spindle Speeds | Standard 8,000 rpm
Optional 12,000 to 24,000 rpm |
|
| Feed rates with Anilam 6000i | to 800 IPM |
1 - 20,000mm/min |
Rapid traverse rates............... Standard Optional |
. 1250 x 1260 x 944 IPM 1890 x 1890 x 944 IPM |
. 32 x 32 x 24 M/min 48 x 48 x 32 M/min |
| Spindle Motor | 7 1/2 Hp continuous 10 Hp peak |
5.5Kw continuous 7.5 Kw peak |
| AC Axis servo motors | 2 x 2 x 5 Hp |
1.5 x 1.5 x 3.5 Kw |
| Tool Changer | Standard 16 tool carousel type
Optional 20 tool carousel type Optional 24 tool arm type |
|
| Accuracy
Positioning Repeatability |
.0004" .0002" |
0.01mm 0.005mm |
| Weight | 8,360 lbs |
3,800 Kg |
| Floor Space L x D x H | 2300 x 2800 x 2700 mm |
|
| CNC controls |
Fanuc 0i, 18i, Heidenhain 530i, Selca |
|
| Options: Fanuc or Fagor CNC High speed spindles up to 24,000 RPM Chip conveyor Chip auger Chip flushing system Wash down hose Air blast hose Coolant through the spindle |
