Yang SL12 CNC Lathe:
with Gang Tooling or Turret Tooling Systems
1.4" bar capacity
With: bar feed, collet chuck, 3 jaw chuck, extra tooling plate
In stock with short bar magazine bar feeder and ready for work !

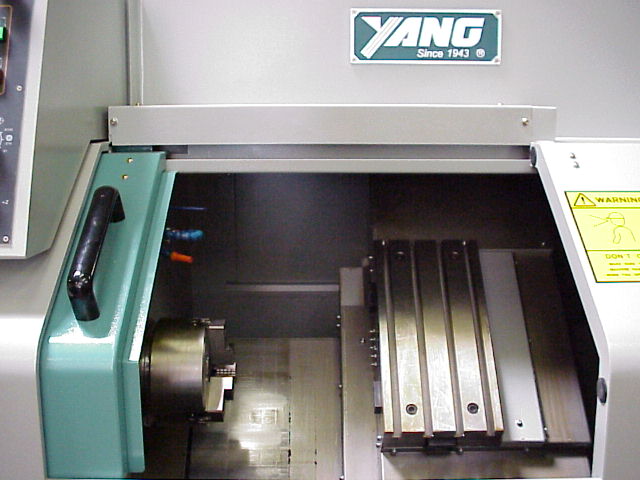

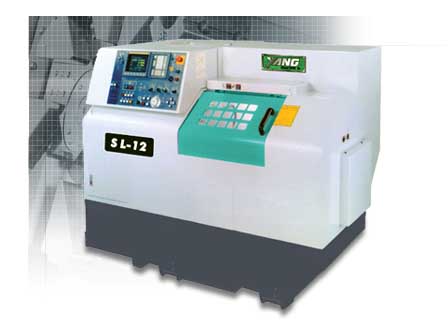

Above and below are photos of the SL-12 in it's gang tooling version.
The machine can be supplied in a traditional
automatic turret version.
This model is normally available for fast delivery with the Fanuc 0i - Mate control with Gang Tooling or Turret Tooling. |
Engineered triangular headstock with wide base lowers machine center of gravity and creates increased rigidity. |
The precise heavy-duty turret with a quick indexing mechanism offers ideal cutting performance. |
The SL-20 and 30 include a standard hydraulic tailstock that allows manual pressure adjustment and programmable quill extend / retract. |
The high quality fine grained cast iron base incorporates a 45 slant bed design and guarantees the overall machine stability, vibration dampening and long term accuracy. |
The large chip area, combined with the slant bed design and fully enclosed splashguards, optimizes coolant circulation, chip disposal and overall safety. |
| ITEM | SPECIFICATION | SL-12 |
|||||
| Work Capacity |
Swing over bed | Ø330mm ( Ø13" ) |
|||||
| Tooling Style | Gang Tooling Version |
Turret Version |
|||||
| Swing over side | Ø136mm (Ø5.4") |
Ø135mm (Ø5.3") |
|||||
| Max. machining diameter | Ø135mm (Ø5.3") |
Ø128mm (Ø5.0") |
|||||
| Max. machining length | 150mm (5.9) |
130mm (5.1) |
|||||
| Machine Body |
Slant angle of bed | 45˚ |
|||||
| Max. travel range | X-axis | 230mm (9.1) |
107mm (4.2) |
||||
| Z-axis | 230mm (9.1) |
230mm (9.1) |
|||||
| Servo motor | X-axis 1.4 KW |
Z-axis 1.4 KW |
|||||
| Rapid traverse rate each axis | X-axis 30m/min |
Z-axis 30m/min |
|||||
| Spindle | Diameter of spindle front bearing bore | Ø80mm ( Ø3.2" ) |
|||||
| Spindle bore |
Ø45mm ( Ø1.8" ) |
||||||
| Draw bar bore | Ø35mm ( Ø1.4" ) |
||||||
| Spindle nose type | ASA A2-5 |
||||||
| Taper of spindle bore | 1/20 |
||||||
| Spindle drive motor | 5.5 / 7.5 KW (7.5 / 10 HP) |
||||||
| Max Spindle speed | 6000 rpm (STD) |
||||||
| Diameter of chuck | Standard | 6” hydraulic (Tonfou) |
|||||
| Optional | 6” hydraulic (KITAGAWA) |
||||||
| Gang and Turret Tools |
Type | Gang type |
Turret |
||||
| No. of tools | 6 pcs |
8 pcs |
|||||
| Tool shank post | 16 × 16 ( 5/8" × 5/8") |
16 × 16 ( 5/8" × 5/8") |
|||||
| Boring diameter post | Ø2mm5 / 2 pcs (Ø1" / 2 pcs) |
Ø25mm / 4 pcs (Ø1"/ 4 pcs) |
|||||
| Radial tool post | 16 × 16mm ( 5/8" × 5/8" ) 1 pcs |
- |
|||||
| Axial tool post | 16 × 16mm ( 5/8" × 5/8" ) 2 pcs |
- |
|||||
| Dual tool post | 16 × 16mm ( 5/8" × 5/8" ) 1 pcs |
- |
|||||
| Other Motors |
Coolant motor | 215 W ( 1/4 HP) |
|||||
| Hydraulic motor | 745 W (1 HP) |
||||||
| Chip conveyor motor | 215 W (1/4 HP) |
||||||
| Misc | Power requirement | 208-220V/ 50 Amps / 3 Phase |
|||||
| Height from floor to spindle | 900 (35.4) |
||||||
| Height form bed to spindle center | 255 (10) |
||||||
| Floor area (L × W ×) | 1990 × 1885 × 1538 (78.3 × 47× 60.5) |
||||||
| Net weight Approx. | 1720 kgs (3784 Ibs) |
||||||
| Gross weight Approx. | 2170 kgs (4774 Ibs) |
||||||
