 Topwell 3-VS |

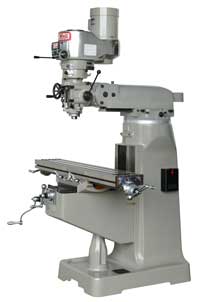

Topwell 3VS: A Bridgeport clone but with a slightly modernized looking head 9" x 42" and 49" table, 3 Hp vari-disk drive head. Dovetail ways. Available 220/1/60 and 220-440 and 575/3/60 |
 |
Topwell 4-GL and 4-RG features our 4 1/2 Hp vector drive head, spindle speeds to 6000 rpm, The heads are available in your choice of direct drive of back geared. 10" x 50" table, 36" x 16" travels, turcite on bottom of saddle. Power feed on X is standard. Every casting on this series is heavier and stronger than the traditional Bridgeport with special focus on the saddle. The weight is 3,400 lbs ... about 1400 lbs heavier than a Bridgeport Available 220/1/60, 220/3/60 and 440/3/60 |
 |
Topwell 5-VK The same machine frame as the 5-RG and 5-VF above, but with a traditional variable speed head with vari-disk drive. |
 |
Topwell 5-GL and 5-RG Our most popular mill. 7 1/2 to 15 Hp vector drive head, # 40 Cat or BT tooling. 12" x 50" table, 32" x 16" travels, Turcite on X and Y. Power feed on X is standard Your choice of back geared or direct drive heads. Both offer 6,000 rpm top speed. Available 220/1/60, 220/3/60 and 440/3/60 More details |
 |
Topwell 5-VF has the same vector drive head as the GL and RG mentioned above, but includes ballscrews on X and Y, CNC style servo motors on X and Y giving full variable speed feeds, rapid traverse, and power knee lift. Telescopic steel cover for Y axis ways in front of the saddle, and digital readout is standard Available 220/1/60, 220, and 440/3/60 The VF series is available in 4-VF and 5-VF sizes as well as a number of bed mills |
 |
Topwell 5A-RG with 40" x 22" travels 13" x 59" or 18" x 59" table |
Eastar 4-HKV Mill budget priced with # 40 taper |
 Slotting heads for Bridgeport type mills |
