AnnnYang Conventional Lathes
16", 18" and 20" Swing
These are also available with variable speed and constant surface speed Click Here

Download the 16" to 21" lathe catalog
Download complete 30 Page catalog of all models

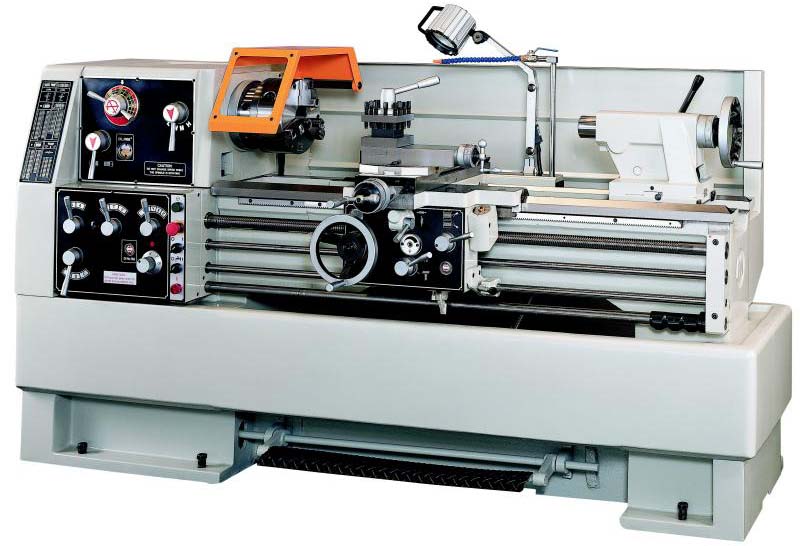

AnnnYang 16 Inch swing lathe

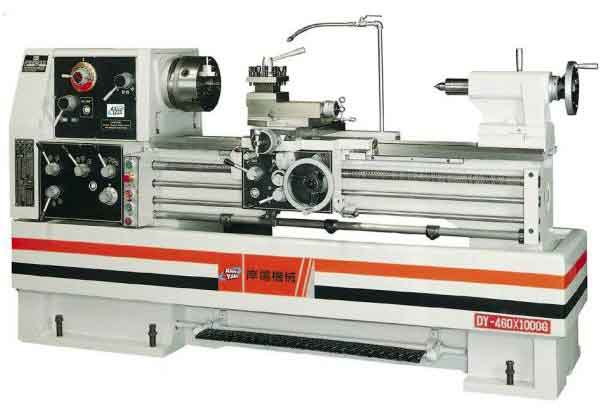

Annnyang DY-460 lathe
18" swing x 40" centers
for variable speed versions click here

MODEL DY-410GB DY-410G DY-460G DY-510G
Swing Distance between centers 1000 / 1500 1100 / 1600 / 2100 / 3100 mm
Swing over bed 410mm 410mm 460mm 510mm
Swing over cross slide 230mm 230mm 270mm 320mm
Swing over gap 660mm 660mm 710mm 760mm
Height of center (over bed) 205mm 205mm 230mm 255mm
Bed Bed Width 305mm 330mm
Headstock Spindle nose Spindle bore D1-6 54mm D1-6 63mm D1-6: 63mm D1-8: 80mm / 102mm(Opt.)
Spindle speed (rpm) 75~2000rpm D1-6: 36~2000 rpm / D1-8: 36~1500rpm
Number of spindle speed 8 Change 12 Change
Feeds- Thread Leadscrew Ø35 mm. 4T.P.I. or 6 pitch
Number of feed changes 32
Longitudinal feed range 0.04~1.0 mm/rev
Cross feed range With rapid traverse: 0.02~0.5mm/rev Without rapid traverse: 0.04~1.0mm/rev
Inch threads 37 Kinds 2~56 T.P.I.
Metric threads 41 Kinds P0.2~14
D.P. No. / range 19 Kinds D.P 8~44
Module pitches No. / range 18 Kinds M 0.3~3.5
Tool slide Cross slide travel 240mm 260 mm
Compound rest travel 95mm 127 mm
Tailstock Quill travel 120mm 130mm
Quill diameter 65mm 75mm
Taper of center MT4 MT5
Motor Main motor 5HP 7.5HP / 10HP(OPT)
Coolant pump 1/8HP 1/8HP

Packing size L x W x H (mm) 1100mm 1600mm 2100mm 3100mm
DY-410G 2370 x 1100x 1700 2880 x 1100 x 1700 3400 x 1100 x 1700 4410 x 1100 x 1700
DY-460G 2370 x 1100 x 1750 2880 x 1100 x 1750 3400 x 1100 x 1750 4410 x 1100 x 1750
DY-510G 2370 x 1100 x 1800 2880 x 1100 x 1800 3400 x 1100 x 1800 4410 x 1100 x 1800
Weight (approx.) N. W. / G. W. 2000 / 2150 kg
(410GB:1700 / 1850 kg)		 2300 / 2450 kg
(410GB:2000 / 2150kg)		 2800 / 3000 kg 3600 / 3850 kg

Workpiece Weight Capacity Chuck only Chuck + tailstock Chuck + 1 steady rest + tailstock Chuck + 2 steady + tailstock
Spindle bore 54 mm 80 kg 300 kg 450 kg 700 kg
Spindle bore 63mm~80mm 300 kg 800 kg 1000 kg 1500 kg
Spindle bore 102mm 400 kg 900 kg 1100 kg 1600 kg
* Above specifications are subject to change without notice. Special requirement please connect with us.

Annnyang 18" x 44" lathe
Annnyang 18" x 44" lathe
assembly line of Annnyang lathes

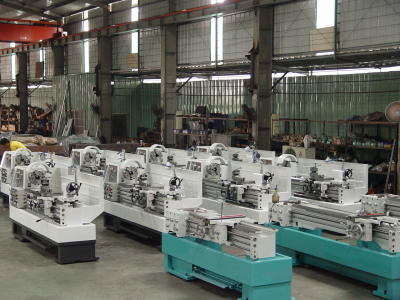

Assembly area of Annnyang 20" lathes

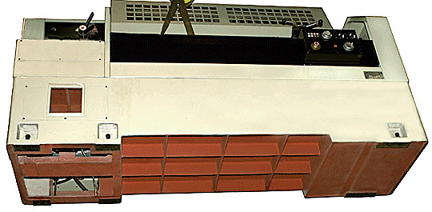

ANNNYANG ONE PEICE BASE CASTING
This picture shows the one piece base casting used on both the CNC and
manual 16", 18" and 20" series lathes.

<
