The Cyclematic CJ-27 Gang Tooling CNC Lathe
with 5C spindle for small parts.

Cyclematic CJ27 lathe

 Fanuc OT CNC Control
Fagor CNC lathe control
Heidenhain CNC Lathe control

A view of the assmbly line of the CP27-CNC lathes
Download the CJ-27 catalogue  (pdf)

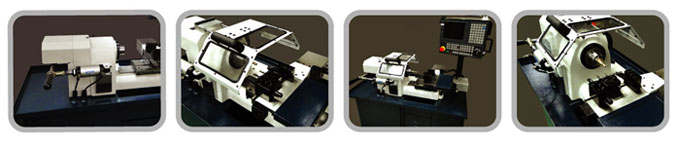

overhead view of cyclematic cj27

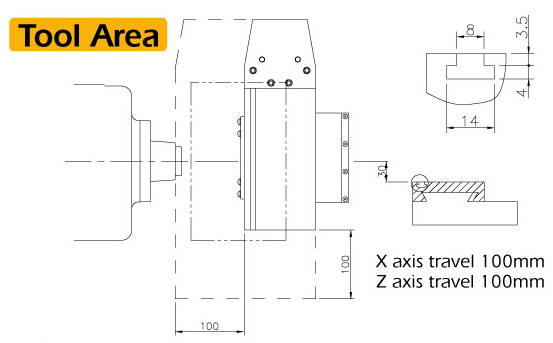

work envelope of cj27

power collet closer of the CP27 CNC lathe
Automatic Power collet closer

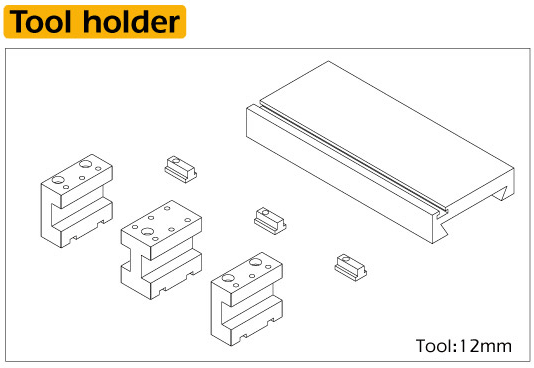

Quick change gang tool holder
Quck change toolhoder
drill toolholder for the Cycelmatic CP27 CNC lathe
drill toolholder for the Cycelmatic CP27 CNC lathe Drill chuck holder
adjustable toolholder for the gang tooling bar
Adjustable toolholder
releasing tap holder for the gang tooling bar
Releasiing Tap holder
die holder
Die holder
the extended version of the toolholder
Extended toolholder
boring bar holder
Boring bar holder
square shank toolholder
Square shank toololder
right or left hand
toolholder for 6 round tools
Toolholder for 6round
shank tools
toolholder for 6 round tools
Toolholder for 3 round tools
ER-collet chuck toolholder
ER collet chuck

FEATURES
  • 127 mm (5") swing over bed
  • 27 mm (1 1/16") 5C collet capacity.
  • Automatic pneumatic collet closer
  • Preloaded angular contact ball bearing spindle.
  • Spindle speeds 50~6000 RPM.
  • Quick change spindle speeds
  • 1 HP frequency controlled motor
  • Tooling center height 12 mm or 1/2"
Specifications
Capacity Swing over bed 230 mm   /  9"
Max dimenter (5c collet) 27 mm   /   1.06"
Collet Collet type 5C
Bore I.D. 27 mm    1"
square 19 mm    / 3/4"
hexagon 22 mm   /  7/8"
Spindle Spindle speed 50~6,000 rpm
Hole through spindle 31.75 mm  /  1.23"
Travel of tool slide X-axis traverl 100 mm    /  4"
Z-axis travel 100 mm   /   4"
Motor Main motor 1.5 KW  /  2 Hp
Feed motor ( X / Z ) 0.4kw
Machine dimension 1120 x 620 x 1580mm
44" x 25" x 62"
Machine weight 500kg  /   1,100 lbs
Tools 12mm   /   1/2"

All dimensions, specifications and machine appearance are subject to change without prior notice.   This model is a hybrid of the CP-27 and CT-6060, which are discontinued.

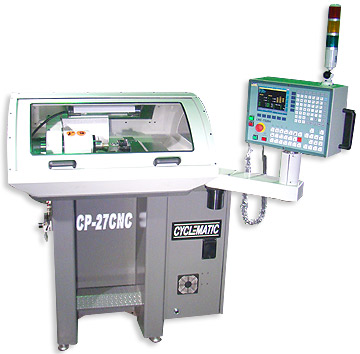

the work area of the CP-27 CNC lathe
  • High precision ball screws on X, Z-axes
  • X, Z-axis feed is driven by a AC servo motor.
  • X, Z-axis ball screws directly coupled to AC servo motor, minimizing backlash.
  • Fast lever collet chucking with a single movement.
  • Power collet closer is optional.
  • The spindle is mounted in high precision preloaded angular contact ball bearings eliminating radial and end play.
  • A wide variety of optional accessories to increase versatility of the machine.
dimensions

<
