 Made in Taiwan since 1967 |
|
Fuho VBS-3612 Series bandsaws |
|

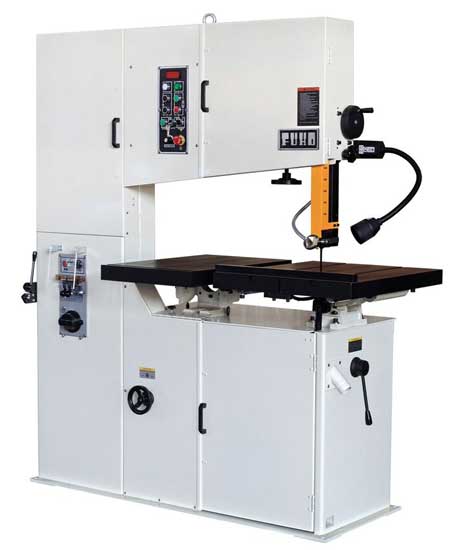

 Here is a preview of the new paint scheme for the Fuho saws. Our stock machines will have this. The off-white and green paint is optional. Click for a larger image |
|
VBS-3612 |
VBS-3612-E | |
| Throat | 915 mm 36" |
|
| Work height | 305 mm 12" |
|
| Wheel diameter | two 550 mm and one 368 mm two 2301/2 and one 14 1/4" |
|
| Blade speed | Low 15 - 125 M/min Hi 165 - 1500 M/min Low 50 - 415 FPM Hi 550 - 5000 FPM |
< |
| Motor | 2.2 Kw 3 Hp |
|
| Table sizes (two) | main table 600 x 700 mm throat table 450 x 700 main table 23 1/2 x 27 1/2" throat table 17 1/2 x 27 1/2" |
|
| Table feed force | n/a | 80 Kgcm |
| Table feed stroke | n/a | 300 mm 12" |
| Table tilt | R 45°, L 10° |
|
| Table height | 1016 mm 40" |
|
| Max blade length | 5020 mm 197 1/2" |
|
| Max. blade width | 27 mm 1" |
|
| Max Welder capacity | 19 mm 3/4" |
|
| Floor Space | 1760 x 810 x 2060 mm 69 x 32 x 81" |
|
| Net weight | 1,760 lbs |
835 Kg 1,840 lbs |
 |
The electric panel showing at the top the step down transformer for low voltage controls, magnetic contactors with overloads, fuses etc for CSA electrical approval. |
 |
The yellow arrow points to the latching interlocked safety switch. The blade wheel must be stopped before the latch will release to allow access. To the right is the operator panel on low voltage showing the keyed master switch, pilot light, E-stop and start buttons. |
 |
The transmission of the Fuho VBS-2012. The air pump for the chip blower is in the lower right. |
 |
Showing the linear bar supports under the table on the power table feed models |
| Features and standard equipment | 3612 | 3612-E |
| - heavy steel closed box frame | ||
| - 2 way tiliting table | ||
| - 4 way tilting table | ||
| - blade tension indicator | ||
| - variable blade speeds with digital speed indicator | ||
| - upper wheel tilt adjustment | ||
| - manual feed screw | ||
| - electric power table feed with 12" stroke and depth of cut control | ||
| - 110 V worklight | ||
| - magnifying class | ||
| - chip blower | ||
| - blade and tire cleaning brush | ||
| - upper guide posr height adjustment by handwheel | ||
| - 1 blade | ||
| - long life carbide blade guides | ||
| - rip fence | ||
| - mitre guage | ||
| - circle cutting attachment | ||
| - 220-440 or 575/3/60 | ||
| - CSA electrical approval, with fuses, low voltage controls, magnetic contactor with overload in a rear cabinet for easy service, with a door disconnect., emergency stop switch | ||
| - latching door interlock switches for added safey. | ||
| - keyed lockout switch | ||
| - optional blade welder with grinder and shear, machine or bench mounted when ordered the welder somes with shear and grinder |
||
| - simple set of service tools | ||
| - operator manual | ||
