BS-SA Series 15" to 18" Semi-Automatic Saws |
|

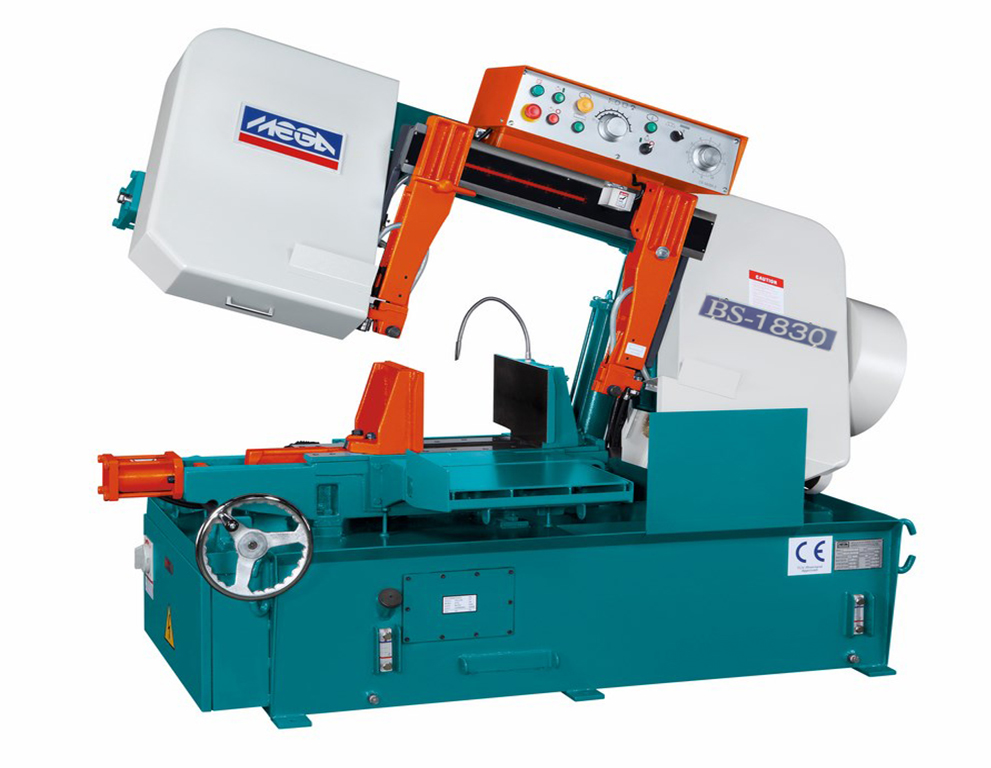

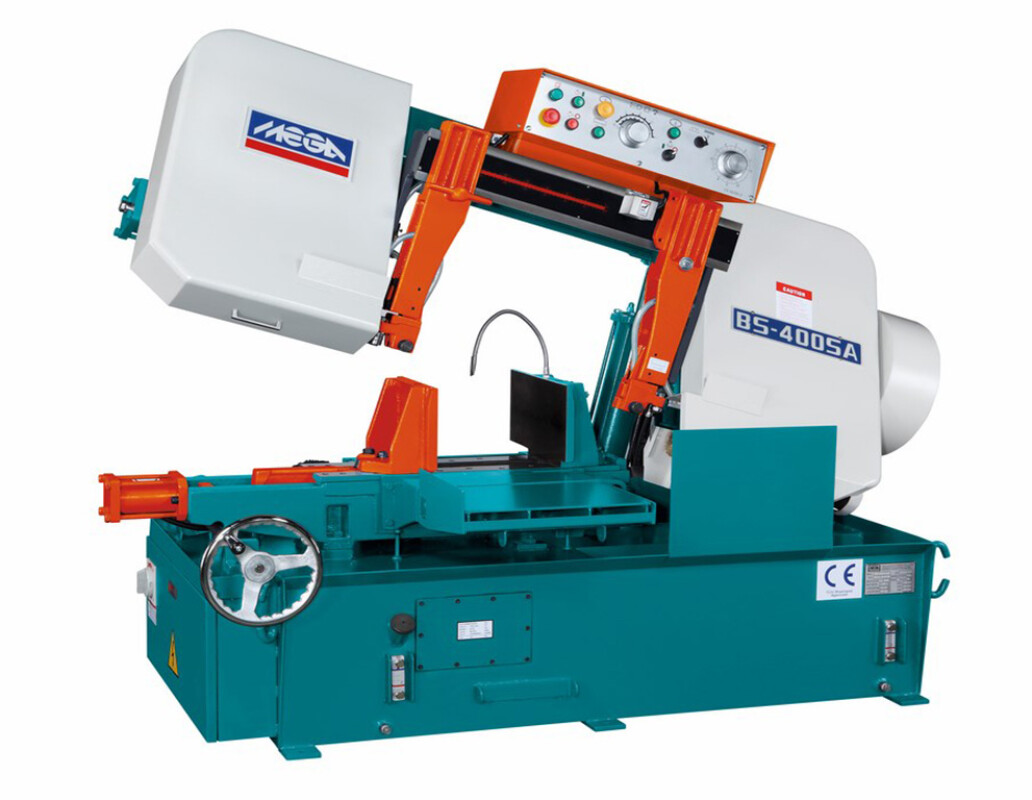

 BS-360A  BS-400A  BS-1830A |
|
| BS -400 SA | BS - 450 SA | BS - 1830 | ||
| Cutting Capacity | (mm) |
 400  400x310
|
460 460x407
|
460 460x 760
|
| (in) | 16” 16”x 12”
|
18 18x16
|
18 18x 30
|
|
| Mitre Cutting | (mm) | 280 ( at 45°) optional
|
320 ( at 45°) optional
|
460 ( at 45°) optional
|
| Biade Size | (mm) | 34 x 1.10 x 4115 | 41 x 1.30 x 4670 | 41 x 1.30 x 5300 |
| (in) | 1.33 x 0.042 x 162 | 1.61 x 0.051 x 184 | 1.61 x 0.051 x 209 | |
| Blade Speed | (m) | 25,32,42,55,70,80 Variable Speed 20 - 80 M / min ( optional ) |
25,32,42,55,70,80 Variable Speed 20 - 80 M / min ( optional ) |
25,32,42,55,70,80 Variable Speed 20 - 80 M / min ( optional ) |
| (ft) | 82,105,138,180,230,260 Variable Speed 65 - 260 F / min ( optional ) |
82,105,138,180,230,260 Variable Speed 65 - 260 F / min ( optional ) |
82,105,138,180,230,260 Variable Speed 65 - 260 F / min ( optional ) |
|
| Motor Output | (kw) | 4.6 | 6.47 | 6.47 |
| (hp) | 6 - 1/8 | 8 -5/8 | 8 - 5/8 | |
| Shipping Volume | (mm) | 2225 x 1188 x 1525 | 2680 x 1220 x 1980 | 3000 x 1220 x 1980 |
| (ft) | 7.3x 3.9x 5 | 8.8x4.0x 6.5 | 9.8x4.0x6.5 | |
| Weight Net / Gross | KG / LB | 1060 / 1275 2330 / 2805 |
1500 / 1750 3300 / 3850 |
1650 / 1910 3630 / 4205 |
|
STANDARD FEATURES
1. Carbide and roller blade guides> 2. Automatic head elevation control 3. Power-driven blade cleaning brush 4. Hydraulic quick-setting vise 5. Coolant cleaning flush hose 6. Uniqe floating roller feed mechanism. < 7. Quick-adjusting carbide saw guide (450 & 1830) 8. Pressure compensation feed-rate control. |
STANDARD ACCESSORIES | |
| 1. Tool with tool box....................... | 1 set | |
| 2. 5ft(1.5M) long roller table......... | 1 set | |
| 3. Cut-off bar end stopper......... | 1 set | |
| 4. Band-Cleaning wire brush................ | 2 pcs | |
| 5. Band saw blade.............................. | 1 pc | |
| 6. Instruction manual.......................... | 1 copy | |
|
OPTIONAL ACCESSORIES 1. Automatic chip conveyor. 2. Variable blade speed drive. 3. Mitre cutting device. 4. Hydraulic blade tension. 5. Additional roller table. |
||
| Features | |
| 1. CENTRALISED CONTROL PANEL: All the machine controls are centralised on a control panel, for the operator's convenience. |
 |
|
2. QUICK ACTING MECHANICAL BLADE TENSION A torque release device is built into the saw to ensure proper tension on the saw blade. Optional hydraulic blade tension also available. |
 |
| 3. BLADE GUIDE DESIGN: The saw blade is guided by 4 ball bearings and 6 carbide guides to ensure perfect alignment and straightness. |
 |
| 4. POWER DRIVEN SAW BAND BRUSH: A power-driven saw-band brush, continually flushed by a cutting fluid spout, keeps the blade and saw guides free of chips for smoother cutting. A flush hose is available for washing chips and debris away from the cutting area. |
 |
| 5. HYDRAULIC QUICK-ACTION VISE:Vise are hydraulic operated. tooth-rack and push-jaw features. eadily adjusted to accommodate stock size |
|
|
6. FLOATING ROLLER FEED MECHANISM: With joy stick setting control of vise and floating roller. when opening the vise. the roller comes up. by a hand wheel can feed solid stock. no sweat! |
 |
| B>7. AUTOMATIC HEAD ELEVATION CONTROL Saw frame will raise automatically up to the height that you preset by a dial knob on the control panel, needed to clear the material being cut. |
 |
| 8. UNIQUE FEED-RATE CONTROL:This unique feed-rate control system with built in temperature and pressure compensation ensures maximum cutting performance. The feedrate control will maintain a constant cutting rate regardless of the work diameter. |  |
 |
 |

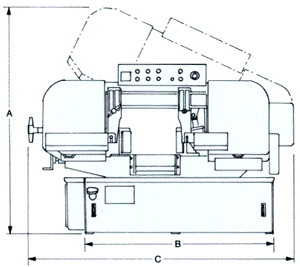

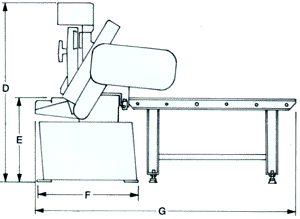

| A | B | C | D | E | F | G | |
| BS-400SA | 80" | 67" | 82" | 52" | 23" | 29" | 72" |
| 2030 | 1700 | 2085 | 1320 | 585 | 740 | 1825 | |
| BS-450SA | 90" | 71" | 94" | 63" | 27" | 33" | 79" |
| 2285 | 1805 | 2390 | 1600 | 685 | 850 | 2010 | |
| BS-1830 | 97" | 84" | 107" | 63" | 27" | 33" | 99" |
| 2465 | 2120 | 2705 | 1600 | 685 | 850 | 2515 |
