Mitre Cutting Bandsaw Selection
the factory catalog |

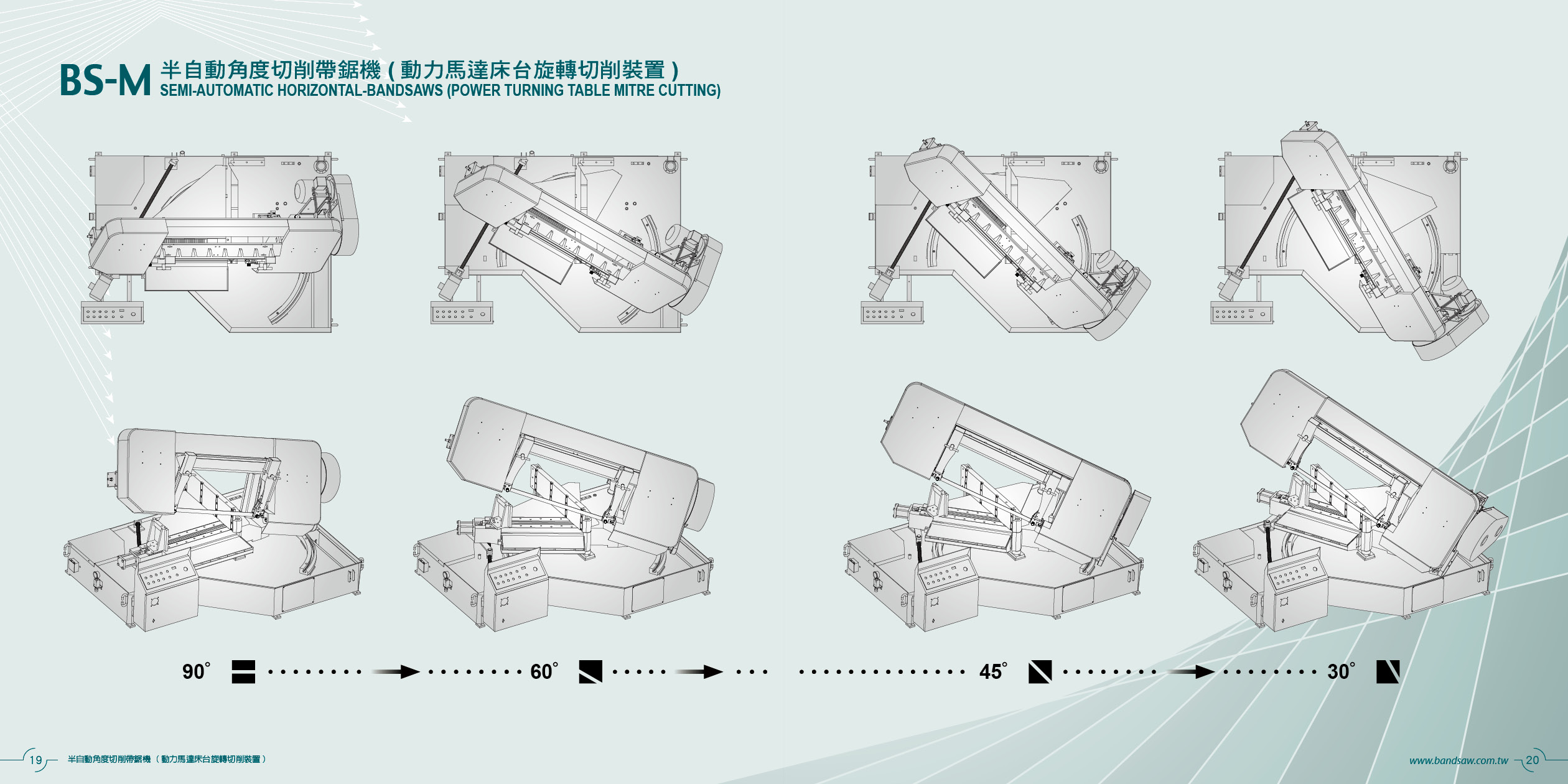

The first chart here shows the wider angle capabilities up to 30° of the BS - M series. The double column H series are lower on this page |
 |
 |
Mega BS-450M round at 90° 320mm round at 90° 12.6" H beams at 45° 320mm x 320mm H beams at 45° 12.6" x 12.6" H beams at 30° 83mm x 320mm
H beams at 30° 3.27" x 12.6" |
 |

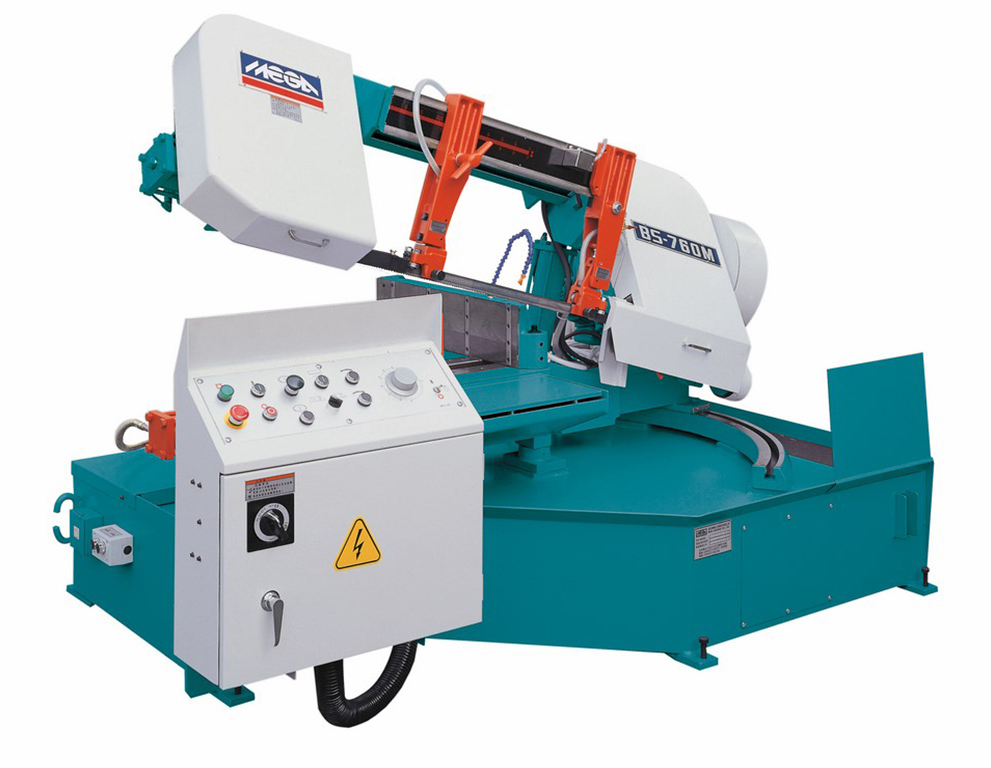

Mega BS-760M round at 90° 460mm round at 90° 18.11" H beams at 45° 500mm x 400mm H beams at 45° 19.7" x 15.75" H beams at 30° 220mm x 400mm
H beams at 30° 8.66" x 15.75" |
 |
Mega BS-1000M round at 90° 500mm round at 90° 19.69" H beams at 45° 590mm Wx 475mm H H beams at 45° 23.23" W x 18.77" H H beams at 30° 330mm W x 440mm H H beams at 30° 13" W x 17.3" H |
 |
MH800S round at 90° 700mm round at 90° 27.56" H beams at 45 ° 550mm W x 700mm H H beams at 45° 21.65 W x 27.56H 30° not possible on this model |
|
Mega 1080S round at 90° 800mm round at 90° 31.5" H beams at 45° 600mm x 800mm H beams at 45° 23.6 x 31.5" 30° not possible on this model |
 |

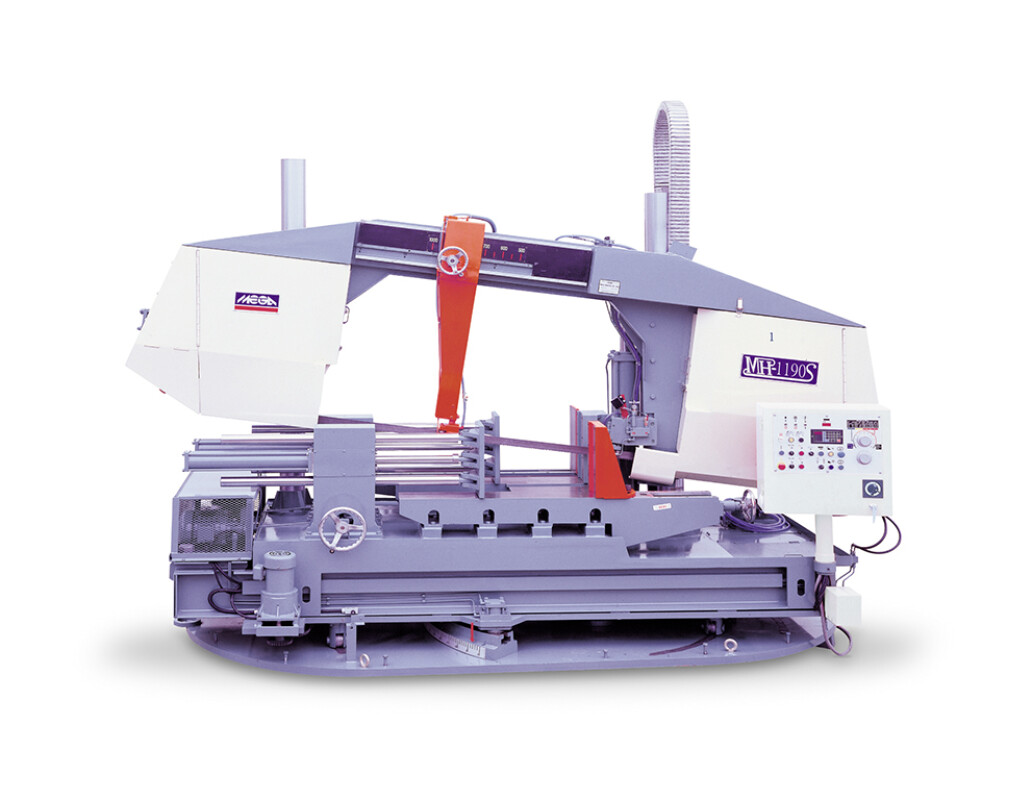

MH-1190S round at 90° 900mm round at 90° 35.43" H beams at 45° 700mm H x 650mm W H beams at 45° 27.5" H x 25.6" W 30° not possible on this model |
|
MH-1385S round at 90° 850mm round at 90° 33.46" H beams at 45 ° 1300mm x 850mm H beams at 45° 39.4" x 33.4" 30° not possible on this model |
 |
MH-1865S round at 90° 650mm round at 90° 25.59" H beams at 45° 1200mm x 650mm H beams at 45° 42.2" H x 25.6" W 30° not possible on this model |
