Sacemi IMM Series of Immersion Style Coolant Pumps
Up to 5 Hp.
IMM-40, IMM50, IMM63 and IMM71 are no longer stocked in North America
Available by special order with extended delivery
For stocked models avialable match up one of the SPV models

Please check the immersion depth and voltage of your pump before calling



SACEMI IMM coolant pump
SACEMI® electric pumps are designed in particular for liquids used in all types of machine tools and or the circulation of liquids in general, non-inflammable refrigerant mixes


Downloads
note that the E and F dimensions for the IMM on the
downloads are NOT correct. Use the chart below.

Download the IMM-40 and 50 spec sheet ( 44K pdf )
Download the IMM-63 spec sheet
Download the IMM-71 spec sheet
Download the IMM-80 spec sheet
Download the IMM-90 and 100 spec sheet

Can be fitted with die-cast aluminium, class F winding, pump body in die-cast aluminium, cast iron or plastic..

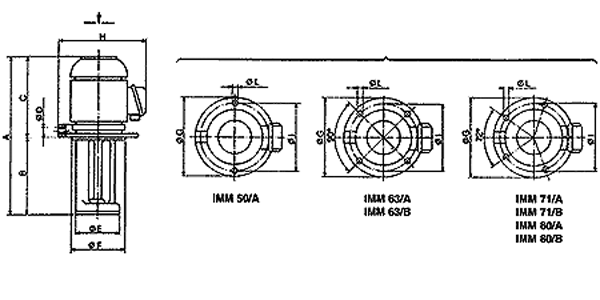

dimensional drawings of Sacemi IMM pumps
>

Click on a model to see the flow charts
Model
KW
HP
A mm
B mm
C mm
ØD GAS
ØE mm
ØF mm
ØG mm
H mm
ØI mm
ØL mm
IMM 50/A
0,11
0,08
219
80
139
3/8"
78
90
130
140
114
7
IMM 50/A
0,11
0,08
259
120
139
3/8"
78
90
130
140
114
7
IMM 50/A
0,11
0,08
289
150
139
3/8"
78
90
130
140
114
7
IMM 50/A
0,11
0,08
319
180
139
3/8"
78
90
130
140
114
7
IMM 63/A
0,30
0,25
355
150
205
3/4"
125
130
180
190
150
9
IMM 63/A
0,30
0,25
405
200
205
3/4"
125
130
180
190
150
9
IMM 63/A
0.30
0,25
455
250
205
3/4"
125
130
180
190
150
9
IMM 63/A
0,30
0,25
505
300
205
3/4"
125
130
180
190
150
9
IMM 63/B
0,40
0,33
355
150
205
3/4"
125
130
180
190
150
9
IMM 63/B
0,40
0,33
405
200
205
3/4"
125
130
180
190
150
9
IMM 63/B
0,40
0,33
455
250
205
3/4"
125
130
180
190
150
9
IMM 63/B
0,40
0,33
505
300
205
3/4"
125
130
180
190
150
9
IMM 71/A
0,53
0,5
475
200
275
1"
180
190
230
225
204
9
IMM 71/A
0,53
0,5
525
250
275
1"
180
190
230
225
204
9
IMM 71/A
0,53
0,5
600
325
275
1"
180
190
230
225
204
9
IMM 71/A
0,53
0,5
715
440
275
1"
180
190
230
225
204
9
IMM 71/B
0,78
0,75
475
200
275
1"
180
190
230
225
204
9
IMM 71/B
0,78
0,75
525
250
275
1"
180
190
230
225
204
9
IMM 71/B
0,78
0,75
600
325
275
1"
180
190
230
225
204
9
IMM 71/B
0,78
0,75
715
440
275
1"
180
190
230
225
204
9
IMM 80/A
1,15
1,00
500
200
300
1 1/4"
190
220
250
260
235
9
IMM 80/A
1,15
1,00
550
250
300
1 1/4"
190
220
250
260
235
9
IMM 80/A
1,15
1,00
600
300
300
1 1/4"
190
220
250
260
235
9
IMM 80/A
1,15
1,00
650
350
300
1 1/4"
190
220
250
260
235
9
IMM 80/A
1,15
1,00
830
530
300
1 1/4"
190
220
250
260
235
9
IMM 80/B
1,47
1,50
500
200
300
1 1/4"
190
220
250
260
235
9
IMM 80/B
1,47
1,50
550
250
300
1 1/4"
190
220
250
260
235
9
IMM 80/B
1,47
1,50
600
300
300
1 1/4"
190
220
250
260
235
9
IMM 80/B
1,47
1,50
650
350
300
1 1/4"
190
220
250
260
235
9
IMM 80/B
1,47
1,50
830
530
300
1 1/4"
190
220
250
260
235
9
IMM 90/A
1,85
2
670
350
320
2"
235
240
300
240
270
13
IMM 90/A
1,85
2
920
600
320
2"
235
240
300
240
270
13
IMM 90/A
1,85
2
1120
800
320
2"
235
240
300
240
270
13
IMM 90/B
2,80
3
695
350
345
2"
235
240
300
240
270
13
IMM 90/B
2,80
3
945
600
345
2"
235
240
300
240
270
13
IMM 90/B
2,80
3
1145
800
345
2"
235
240
300
240
270
13
IMM 100/B
4,43
5
730
350
380
2 1/2"
235
240
300
240
270
13
IMM 100/B
4,43
5
980
600
380
2 1/2"
235
240
300
240
270
13
IMM 100/B
4,43
5
1180
800
380
2 1/2"
235
240
300
240
270
13

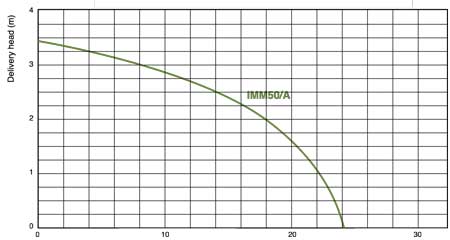

Sacemi IMM50 coolant pump flow chart
IMM-50
Pump Body ... Valox
Cover .... Valox
Impeller ... Valox
Shaft ... Steel
Insulation ... CL. F
Sacemi IMM63 coolant pump flow chart
IMM-63
Pump Body ... Cast Aluminum
Cover .... Valox
Impeller ... Valox
Shaft ... Steel
Insulation ... CL. F

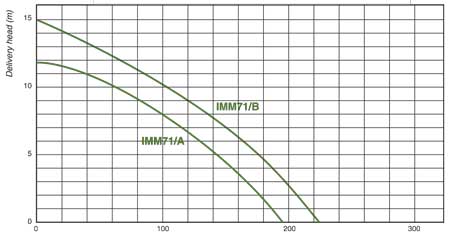

Sacemi IMM71 coolant pump flow chart
IMM-71
Pump Body ... Cast Aluminum
Cover .... Cast Aluminum
Impeller ... Valox
Shaft ... Steel
Insulation ... CL. F

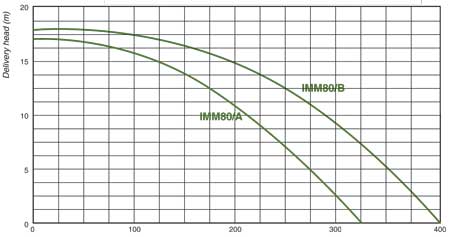

Sacemi IMM80 coolant pump flow chart
IMM-80
Pump Body...Cast Aluminum
Cover... Cast Aluminum
Impeller ... Broze
Shaft ...  Steel
Insulation  CL.F

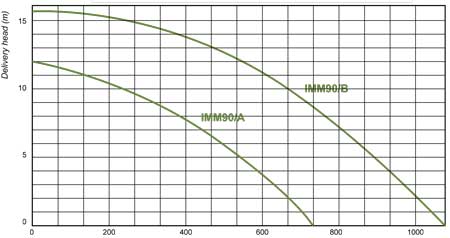

Sacemi IMM90 coolant pump flow chart
IMM-90
Pump Body  ... Cast Iron
Cover ... Cast Iron
Impeller ....Cast Iron
Shaft ... Steel
Insulation CL. F

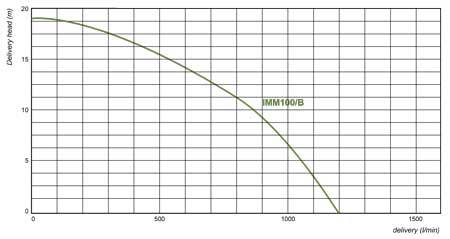

Sacemi IMM100 coolant pump flow chart
IMM-100
Pump Body  ... Cast Iron
Cover ... Cast Iron
Impeller ....Cast Iron
Shaft ... Steel
Insulation CL. F
