Topwell TW-4080-LZQ

A huge CNC bed mill with a quill type head

Travels 55" x 31.5" x 53"
with up to 65" capacity under the spindle

Shown with Fanuc 0iM CNC control and tilting rotary table.
10 Hp Fanuc Spindle motor

Topwell TW-4080Q CNC bed milling machine

Below the machine is show with a tilting rotary table and
a 90 degree milling head on the quill type spindle

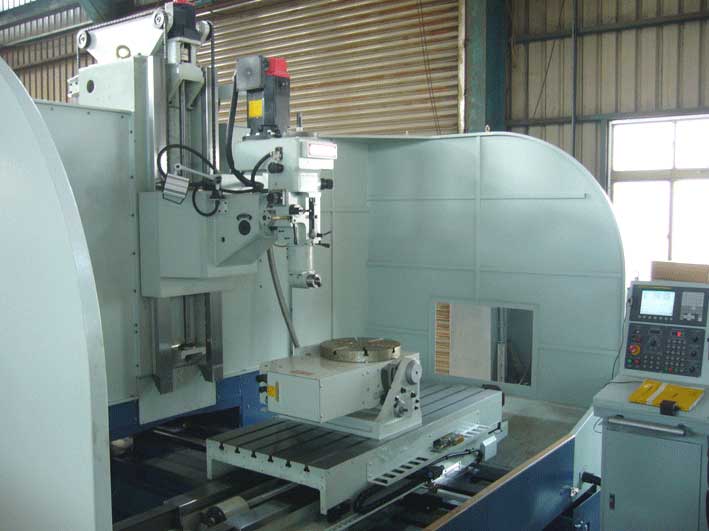

The Topwell TW4080Q CNC bed mill with tilting rotary table.

The Topwell TW4080Q CNC bed mill with tilting rotary table.

This unique machine was develope to machine the casing of the Rolls Royce Trent series
of turbine engines, used on the Airbus.

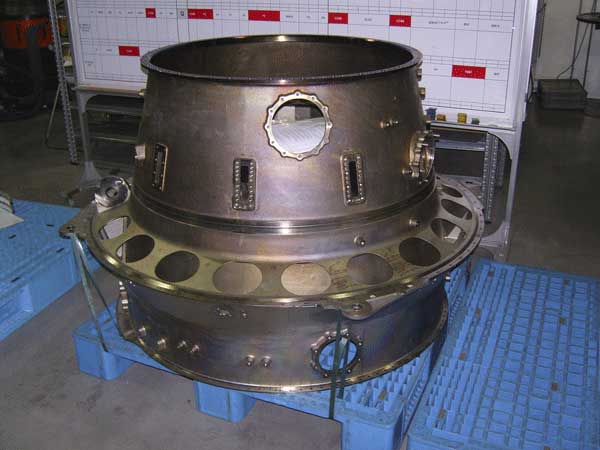

Rolls Royce Trent turbine engine housing

Rolls Royce Trent turbine engine housing

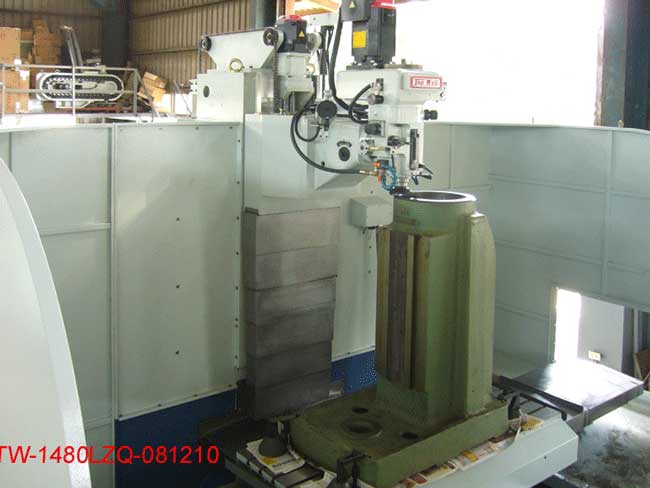

Illustrating the huge vertical capacity of the machine.

This photo illustrates the huge vertical capacity of the TW-4080 with the column of a Bridgeport style mill, on the table, milling the top of the column.
