| Introducing the HH Roberts Horizontal / Vertical
Machining Centre Download the catalog on the NEW TW-400-HV |
  |
|

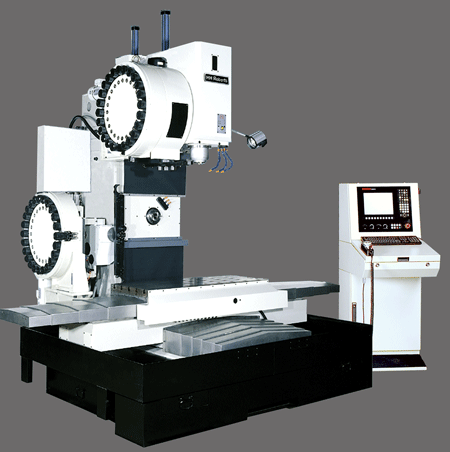

| • 2 spindles • 2 toolchangers • 48 tools • 5 sides of a workpeice in 1 setup • AND all for less capital investment than you're thinking. |
|
| Work on 5 sides of a part in one set up when equipped with a rotary table. |
| • X axis travel 43" • Both heads travel 32" vertically • Horizontal spindle has a 6" stroke. • Twin toolchangers, 24 tools for each spindle. • Available as a horizontal machine only • Available with or without tool changers. • Available open or fully enclosed. |
 |
 |

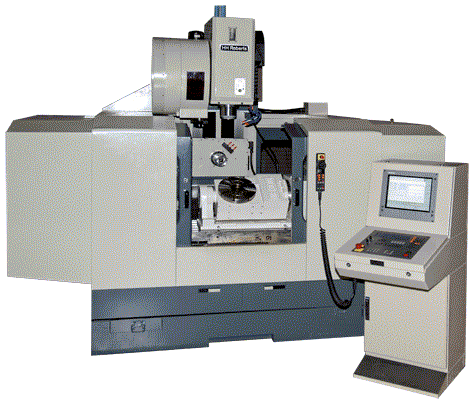

An H / V -43 in our shop just prior to shipping. This model is 6 1/2 axes driven by the Heidenhain 530i control. 1) X axis 2) Y axis 3) vertical head 4) horizontal head 5) table rotation 6) table tilt 6 1/2) quill extension of the horizontal spindle. |

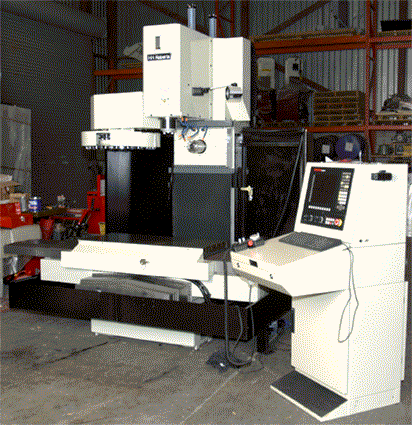

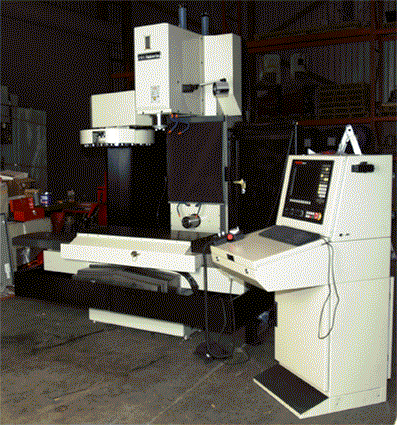

| The two pictures below show an H/V with the carousel tool changer on the vertical spindle. The horizontal spindle is shown at the top and bottom of it's 32"+ travel. For facing off a block, the center line of the horizontal spindle will go below the surface of the table. The vertical spindle has the same 32" travel. This gives the relatively small machine with some large capacities. |

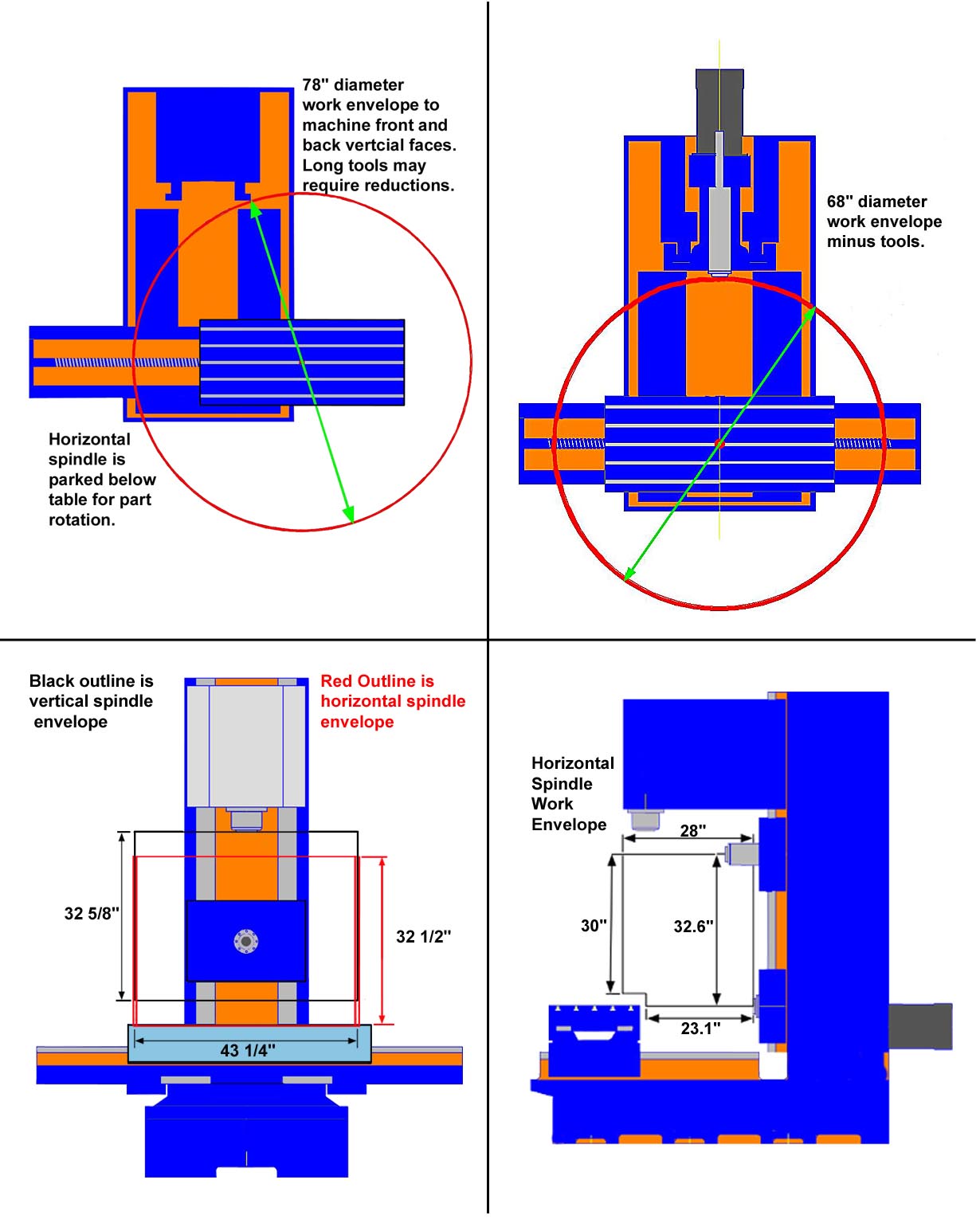

| Quick link to a graphic illustrating the capacities of this machine |
 |
||
 |
||
