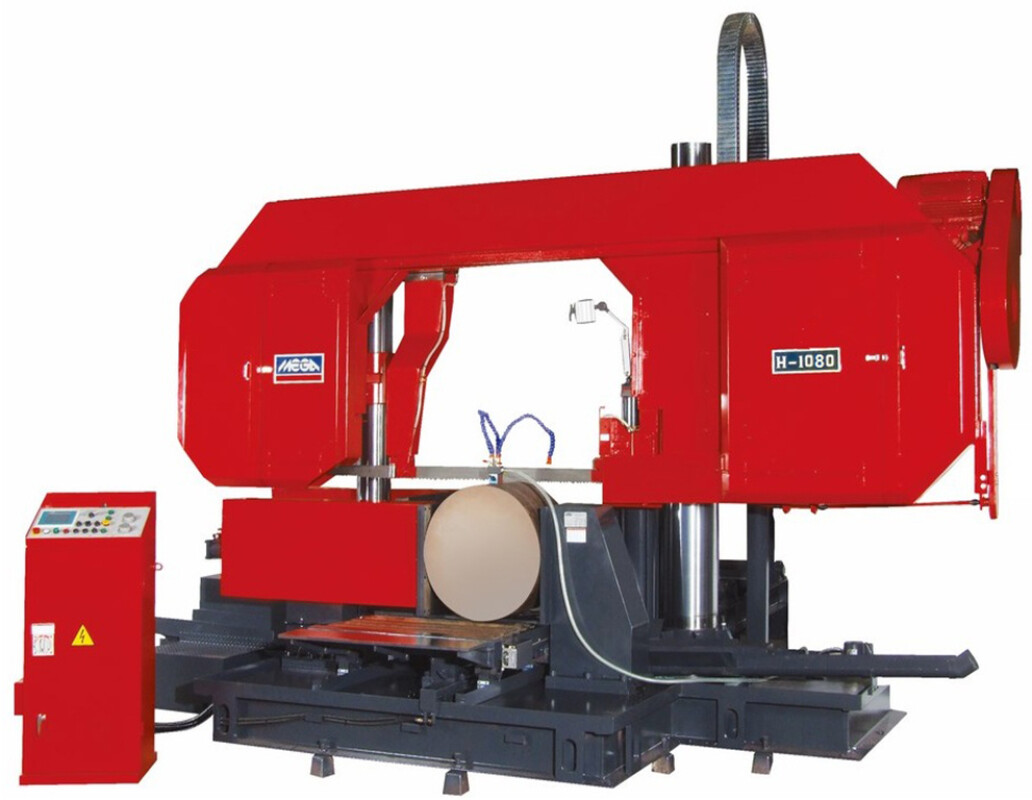

Mega H-1080 Semi-Automatic Horizontal Bandsaw 31 1/2" Round Capacity Mitre cutting to 45 and 30 degrees |
 |
| This model has the head inclinded to create frame clearance allowing cutting of round or square stock up to 40" to a maximum length of 14", very usefull for cutting off flange blanks or disks. The unrestricted cut capacity is 31 1/2" round or square and 40" x 31 1/2" rectangular. The hydraulic front vise has a shuttle feed stroke to advance and position the stock under power.Mitre cutting is not possible on this model |
H-1080 |
|||
| Cutting Capacity | mm | Ø 800mm
rectangular 1000 x 800 1000 x 1000 x 380 |
|
Ø 31.5",
rectangle 40" x 31", and 40" x 40" to a max length of 14" |
|||
| Blade Size | 8800 x 67 x 1.6mm |
||
346" x 2.6" x 0.063" |
|||
| Biade Speed | M / min | 12, 17, 41, 53, 65 M / min |
|
| Ft / min | 39, 55, 95, 135, 174, 213 Ft / min |
||
| Motor Output | Kw | 11 Kw blade, 2.2 Kw hydraulic |
|
| Hp | 15 Hp blade, 3 Hp hydrualic |
||
| Shipping volume | mm | 4440 x 2520 x
3200 |
4440 x 2780 x
3470 |
| ft | 14.6 x 8.2 x10.6 |
14.6 x 9.2 x 11.4 |
|
| Weight Net/ Gross | 7500 / 8600 Kg |
10000 / 11000 Lb |
|
| Standard Features • Precise digital counter for cut depth setting. • Auto head-elevation after complete a cut. • Power-driven blade cleaning brush and coolant cleaning flush hose. • Idle wheel motion detector for bleade jam/break shut-off. • Carbide guides with hydraulic control. • Hydraulic quick acting vise jaw for stock clamping. • Hydraulic shuttle vise for stock feeding. • Motor and chain drive roller table. • Hydraulic blade tension. |
Standard Accessories | |
| Tool with tool box.................. | 1 set | |
| 10 FT ( 3.3M) long roller table. | 1 set | |
| Band-cleaning wire brush....... | 2 pcs | |
| Band saw blade.................... | 1 pc | |
lnstruction manual and Parts list |
1 copy |
|
| Optional Accessories • Variable blade speed drive. • Variable vise pressure system. • 3.3M Power Roller Table. • Amplifying valve for automatic regulation of the cutting feed rate |
||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
