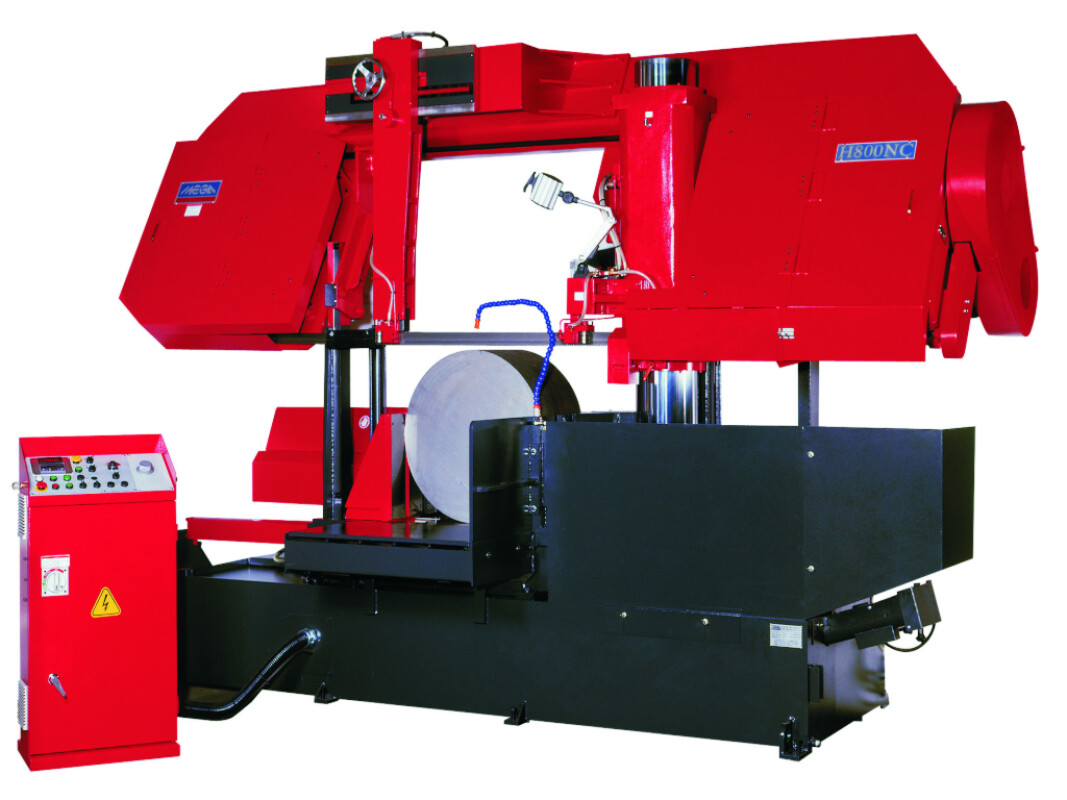

H-800-A Semi Automataic Double Column |
|
Mega 31.4" round capacity, 34.2 " x 31.4" rectangular capacity twin column bandsaw |
|
 |
 |
H800 |
||
| Cutting Capacity | Ø 800mm █ 870mm W x 800mm H Ø 31.4" █ 31.4" H x 34.2" W |
|
| Blade size | 67x 1.6th x 8800mm 2 1/2" x 346" x 63 thou |
|
| Blade Speed | Variable speed 15 -70M/min Optional Variable speed 49 - 229FPM |
|
| Motors | Blade 15 Hp hyd. 3 Hp coolant 1/4 Hp |
|
| Shipping Volume | 4350mm L x2270 mm W x 2629mm H |
|
| Weight Net / Gross | 8400 / 9000 Kg 18,260 / 19,580 Lb |
|
| Standard Features • Precise cut off length setting. • Auto head-elevation and quick approach control. • Nesting fixture device bundele cutting. • Cutting piece counter with auto-shut-off. • Multiple stroke counter for long pieces. ( Standard 9 Times ) • Power-driven blade cleaning brush and coolant cleaning flush hose. • Carbide and roller blade guides. • Hydraulic shuttle vice back- jaw feed method. • Hydraulic bland tension control. • Work-area light. • Automatic chip conveyor. • Two-way open rear vice jaws to insure precise bar-feed repeatability even in cutting a little bit warped / surface rough works. • Unique split vice allows automatic cutting to within as little as 50 mm of bar end. |
Standard Equipment | |
| • Tools with tool box | 1 set |
|
| • 2M ( 7 FT ) long roller table with vertical roller guides |
1 set . |
|
| • Band-Cleaning wire bursh....... | 2 pcs |
|
| • Band saw blade................... | 1 pc |
|
| • Hydraulic blade tension......... | 1set |
|
| • Automatic chip conveyor....... | 1set |
|
| • Instruction manual and Parts list | 1 copy |
|
| Options Variable vise pressure system • Amplifying valve for auto-adjusting cutting feed-rate. • GA NC control |
||
QUALITY DESIGN - Skilful engineering and imaginative design give every MEGA Band Saw exceptional cutting capacity. • An excellent blade tensioning system and guides keep the blade aligned and under constant load at all times. • A hydraulically controlled cutting feed maintains a constant cutting rate regardless of the workpiece cross section. • A power-driven brush continually flushed by a cutting fluid spout keeps the blade and saw guides free of chips for smoother cutting. • A quick approach and normal feed rate selector are equipped to cause the blade to quickly descend into position. SAFETY DESIGN- Every MEGA Band Saw is factory equipped with: • Safety and thermal overload switches. • Well guarded blades and wheel covers. • Saw Blade shuts off automatically when cutting is complete. • Low voltage & zero voltage controls. • A blade breakage sensor / motion detector provides automatic shutoff. |
| Options: showing the variable speed drive control (left) and the NC control (right) and the controls for the amplifying valve option. . |
 |
| • Automatic head elevation limiter and rapid approach control: Raising the blade higher than necessary to clear the work for the next cut wastes time. Head elevation is controlled automatically and no longer requires the operator's attention. A control device that senses the size of the workpiece, permits the saw head to raise just high enough so the blade clears the work. This reduces index cycling time significantly. |
 |
|
 |
• Quick adjusting carbide saw blade guides: For the replacement of the saw blade or the repositioning of the guide arms. two levers are incorporated in the saw guides to allow these operations to be carried out quickly and efficiently. (Hydraulic carbide guides on 550/700 models) |
|
| • Idle wheel rotation detector: This device not only can protect the saw blade from damage if the blade overloads during cutting, but will also shutoff the machine if the blade should break. |
 |
|
 |
• Hydraulic
blade tension control: During operation of the saw the correct tension is automatically maintained. The tension is reduced when the saw is shut-off. This procedure greatly increases blade life. |
|
| � Quick action
hydraulic twin vice (split vice) with 3-jaw clamping: Materials are firmly clampled on both sides of the saw blade by twin vices. Operating a single switch provides manual or automatic clamping and unclamping materials. These unique twin vices allow automatic bar feed and cutting to within as little as 50mm of bar end. |
 |
|
 |
• Unigque self aligning
vise jaws: Both vise jaws on the rear work-carriage are actuated simultaneously, opening or closing, instead of the traditional one that is fixed on one side, moveable on another. This particular design ensures accurate indexing even with warped stock. |
|
| • Chip conveyor: A power driven brush keeps the saw teeth free of chips. Rotating screw shaft in the coolant return drains chips of cutting fluid and propels dry chips by auger conveyor out through a disharge chute. |
 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
