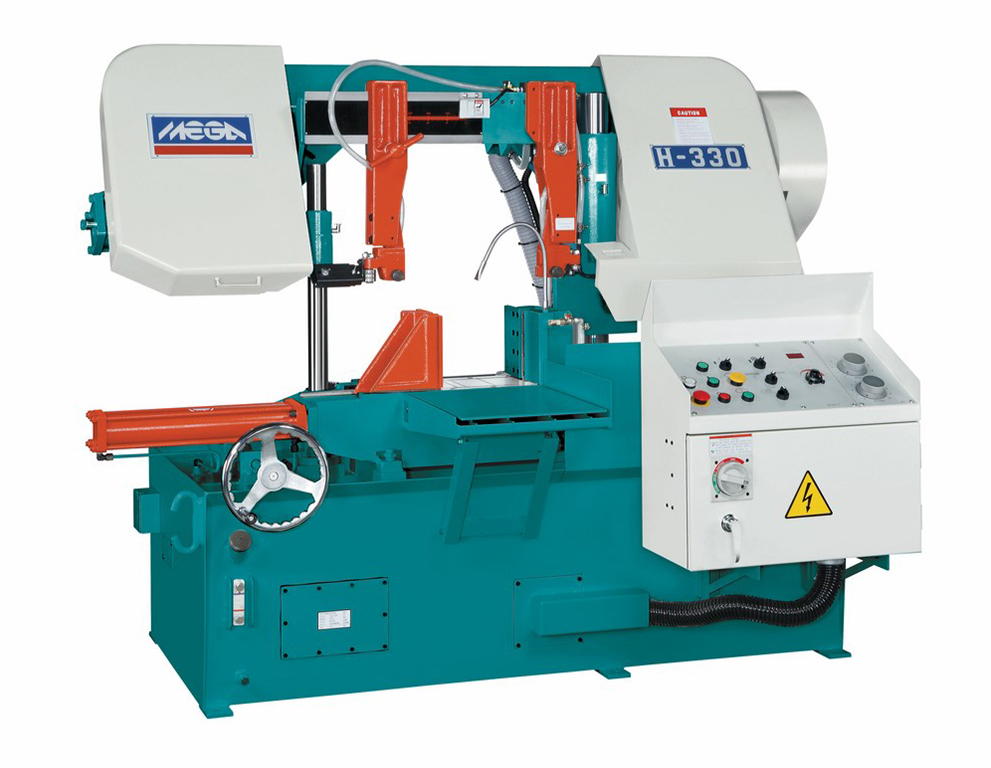

Mega 13" Twin Column Semi-Automatic
Model H-330 13" capacity
|
H-330
|
||
| Cutting Capacity | ||
| Bundle Cutting | 6" x 10" |
|
| Blade size | ||
| Blade Speed | ||
| Motor Output | ||
| Shipping Volvumg | ||
| Weight Net / Gross | ||
| Standard Features 1. Precise cut off length setting. 2. Auto head-elevation and quick approach control. 3. Nesting fixture device bundle cutting. 4. Cutting piece counter with auto-shut-off. 5. Multiple stroke counter for long pieces. ( Standard 9 Times ) 6. Power-driven blade cleaning brush and coolant cleaning flush hose. 7. Carbide and roller blade guides. 8. Hydraulic shuttle vice back- jaw feed method. 9. Hydraulic bland tension control. 10. Work-area light. 11. Automatic chip conveyor. 12. Two-way open rear vice jaws to insure precise bar-feed repeatability even in cutting a little bit warped / surface rough works. 13. Unique split machine vice allows cutting to within as little as 50 mm of bar end automatically. |
Standard Equipment | |
| 1. Tools with tool box ............... | ||
| 2. 2M ( 7 FT ) long roller table with vertical roller guides | ||
| 3. Band-Cleaning wire brush....... | ||
| 4. Band saw blade................... | ||
| 5. Hydraulic blade tension......... | ||
| 6. Automatic chip conveyor....... | ||
| 7. Instruction manual and Parts list | ||
| Options 1. Variable blade speed drive see below 2. Variable vise pressure system 3. Amplifying valve for auto-adjusting cutting feed-rate. 4. GA NC control |
||
| QUALITY DESIGN - Skilful engineering and imaginative design give every MEGA Band Saw exceptional cutting capacity. • A completely automatic cutting cycle synchronised with an automatic bar-feed mechanism and stock clamping action provide accurate repetitive cutting. • An excellent blade tensioning system and guides keep the blade aligned and under constant load at all times. • A hydraulically controlled cutting feed maintains a constant cutting rate regardless of the workpiece cross section. • A power-driven brush continually flushed by a cutting fluid spout keeps the blade and saw guides free of chips for smoother cutting. • A quick approach and normal feed rate selector are equipped to cause the blade to quickly descend into position. • A cutting piece counter is used to preset the number of cuts required during automatic operation. • Two hydraulically operated vises, one a fixed front vise, the other an indexable travelling vise in the rear side. • The hydraulically operated nesting fixture is designed for high production multiple sawing of stacked bars, small rounds and tubes. The fixture contains vertical cylinders mounted on the index and front vises. It holds stacked work firmly to prevent vibration. • A cutting length presetting device is built into the saw to preset the required cutting length of a workpiece during automatic operation. It is simply operated by means of a read-out digital device. • Multiple stroke preset counter: when a cutting length of more than 16 is required, the number of strokes can be preset on this counter. The counter is capable of being set to a maximum of three strokes 48 (1200 mm ) ( nine strokes 144 is optional ) SAFETY DESIGN- Every MEGA Band Saw is factory equipped with: • Safety and thermal overload switches. • Well guarded blades and wheel covers. • Saw Blade shuts off automatically when cutting is complete. • Low voltage & zero voltage controls. • A blade breakage sensor / motion detector provides automatic shutoff. |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
