Strands drill logo
Links for downloading catalogues are at the bottom of the page
Need Strands Drill parts, we have the parts manuals on line
#strands We also have manuals for Arboga, Ima, Solberga and Nider on the same page

500 x 400mm tables are now standard.



Available with 110/1/60  or 3 phase electrics
We stock in both 110/1/60 and 575/3/60

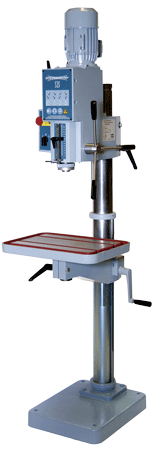

Strands S25T drill
S-25-T
Swedish made quality.

With the new workplace safety standards in effect we recommend the chuck gaurd option.
Machines we are stocking will have the chuck guard with interlocking micro-switch. See below
Strands S-25-T
geared head drill press.

drilling capacity in steel
1"
25 mm
tapping capacity
5/8"
M16
throat
10"
250 mm
distance spindle to table on floor model
0 - 915 mm
distance spindle to base
floor model
bench model

1070 - 1268 mm
60 - 584 mm
spindle motor  3 phase 220, 440 or 575 Volt
0.75 / 0.95 Kw
spindle motor single phase  120/1/60 0.55 / 0.75 Kw
spindle stroke
5 -3/8"
135 mm
spindle taper
MT 3
spindle speeds
8 from 130 - 3480
table
16" x 20"
400 x 500mm
weight of floor model
180 kg
Note table is now 400 x 500 as standard

drill guard to CE standards
Optional chuck guards to CE standards.

These are becoming manditory under many porvincial safety codes. The machines we are ordering for stock will have the chuck guard with interlocking limit switch.

Options
chuck guard
telescoping chuck guard
microswitch interlock on chuck guard
worklight
coolant system
foot switch for reversing in tapping, 3 phase model only
foot switch for simple start / stop
foot switch to run only when depressed
milling tables
threaded spindle to hold milling collet chucks
flanged spindle to hold multi-spindle drill heads
Catalogue Downloads
S-25 series English  (current)
S-25-T English not available
S-28 series 30mm cap English  (current)
S-35 series English  (current)
S-40 series English  (current)
General Catalogue English, French, German     Note table size is now 400 x 500)
includes mill / drill combination machines.

<
