500 x 400mm tables are now standard.

The Swedish Strands group of dril manufacturers have produced
over 700,000 geared head drills.

strands S40M geared head drill
Strands S40M

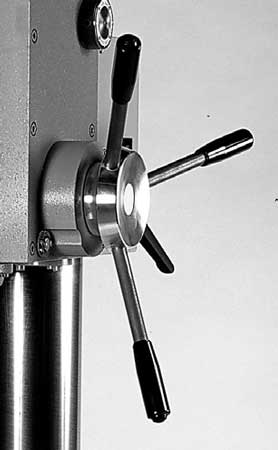

Power feed drill		 power feed engage levers of the Strands S40ME
Feed levers with pushbutton feed
engage in each lever of the S40ME

Strands S40, S40M and S40ME
geared head drill press.
M version has power feeds
ME version has pushbutton power feeds
drilling capacity in steel
1-5/8"
40 mm
tapping capacity in steel and cast iron
M24 / M28
throat
13"
330 mm
distance spindle to table
8-1/2 " - 32-5/828"
215 - 830 mm
distance spindle to base : MAX
 - 47-5/8"
1210 mm
drive
2-1/2 /  3-1/2 Hp
2.2 / 2.6 Kw
spindle stroke
7-1/2"
190mm
spindle taper
MT 4
spindle speeds
8 from 108 to 1800
feeds on S35M and ME 0.004 , 0.006,  0.009,  0.012 i/rev
0.10,  0.15, 0.22, 0.30 mm/rev
column diameter 5.51"
140 mm
table
16" x 20"
400 x 500mm
optional table 20 x 24"
600 x 500 mm
overall height Max 81.1"
weights
630 lbs
290 Kg


Options and Accessories
chuck guard with or without micro switch
foot switch for start / stop of spindle
flanged quill to accept multi-spindle attchments
spindle with threaed nose to accept collet chucks
  automatic spindle reverse at pre-set depth for tapping.
( maximum 5 reversals per minute )
584 x 242 mm co-ordinate table for milling etc
with 415 x 155 mm travels
optional larger table 600 x 500 mm

drill guard to CE standards
 Optional chuck guards to CE standards.

These are becoming manditory under many porvincial safety codes.

  The machines we are ordering for stock will have the chuck guard with interlocking limit switch.

STRANDS S40 has a drilling capacity of 40mm. The gear box is built according to our experienced methods for highest possible torque. The drill head is fixed on top of the column. The table arm is adjustable 360° around the column and can be raised and lowered.

STRANDS S40M: When the set drill depth is reached, the spindle will automatically return to the starting point. The feed can also be interrupted manually. The feed gear box is provided with an automatic overload protection device, which intervenes, when the drill pressure is too high.

STRANDS S40ME: Start / Stop of the automatic feed are handled by buttons at the top of the feed lever. Hand and automatic reversing for tapping are standard.

Chuck guard with micro switch is to CE standards.

Options
  • telescoping chuck guard
  • telescoping chuck guard with interlocking microswitch
  • worklight
  • coolant system
  • foot switch for reversing in tapping
  • foot switch for simple start / stop
  • foot switch to run only when depressed
  • milling tables
        584 x 242mm with 415 x 155 travles
        with or without power feed
  • threaded spindle to hold milling collet chucks
  • flanged spindle to hold multi-spindle drill heads
  • table with 90 degree T-slotted surface

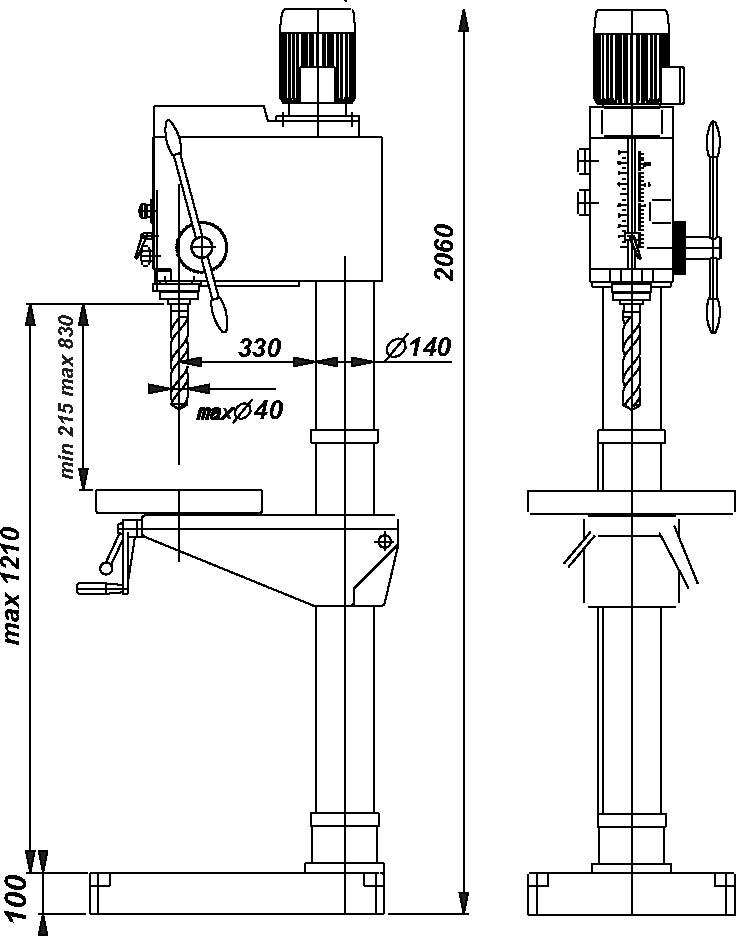

Strands S40 drill dimensions
