Strands drill logo
Links for downloading catalogues are at the bottom of the page
Need Strands Drill parts??   We have the parts manuals on line
We also have manuals for Arboga, Ima, Solberga and Nider on the same page
500 x 400mm tables are now standard.


This model is normally in stock


110  or 220/1/60 see the SE-2025-T models
We normally have this model in stock
Swedish made quality.

the Strands S25 drill
Strands S-25 drill press
drilling capacity in steel
1"
25mm
tapping capacity
5/8"
M16
throat
10"
255mm
max distance spindle to table
36"
0 - 915mm
distance spindle to base 47 1/8"
1200mm
motor,   2 speed
1.1  /  1.5 Hp
0.8 / 1.1 Kw
spindle stroke
5.3"
135mm
spindle taper
MT 3
quill diameter 2-2/8
spindle speeds
8 from 130 - 3480
column diameter 4"
table
16" x 20"
400 x 500mm
vertical travel of table 21"
vertical adjustment of head on column 8"
weight
400 lb
180 kg

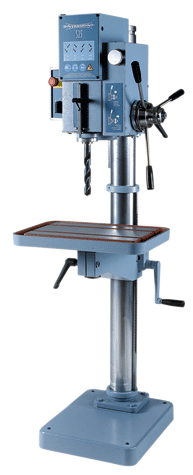

Strands power feed drill
Strands S-25-M drill press with power feeds
( shown with old smaller table, current models
have the larger table as standard )
power feeds   4
0.004" to 0.012" / rev
vertical travel of table 21"
vertical adjustment of head on column 8"
weight
440 lb
200 kg

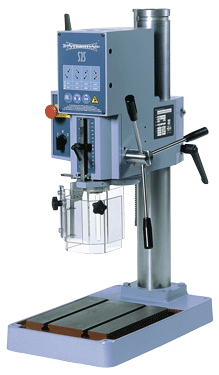

Strands S25B bench model geared head drill press
Strans S-25-B bench model drill
drilling capacity in steel
1"
25mm
tapping capacity in mild steel
5/8"
16mm
throat
10"
255 mm
max distance spindle to table
2,36" to 23"
60 - 584mm
drive
1.1  /  1.5 Hp
0.80 / 1.1 Kw
spindle stroke
5.3"
135mm
spindle taper
MT 3
spindle speeds
8 from 130 - 3480
table
weights
with / without power feeds gearbox
285 / 330 lb
130 / 150 kg

Options
chuck guard
telescoping chuck guard
microswitch interlock on chuck guard
worklight
coolant system
foot switch for reversing in tapping
foot switch for simple start / stop
foot switch to run only when depressed
milling tables
threaded spindle to hold milling collet chucks
flanged spindle to hold multi-spindle drill heads
table with 90 degree T-slotted surface

Dimensions of the Strands S-25 drill press
Note table is now 400 x 500 as standard


S-25-B
This shows the standard head without power feed

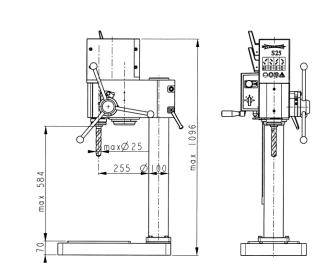

Strands S-25-B and S-25-BM
dimensions of Strands S25B drill press


Options and Accessories
chuck guard for thee Strands drill chuck guard with or without micro switch
digital depth readout digital readout of drilling depth
machined and T-slotted drill base machined and T-slotted base
stop start footswitch foot switch for start / stop of spindle
reversing switch for tapping reversing foot switch for tapping
emergency stop foot switch Emergency stop foot switch

threaded spindle nose for milling
		  spindle with threaed nose to accept collet chucks for milling
  automatic spindle reverse at pre-set depth for tapping.
( maximum 5 reversals per minute )
x/y table FB-102 584 x 242 mm milling table
with 415 x 155 mm travels
x/y table with power feed FB-402 Power feed miling table 584 x 242 mm co-ordinate table for milling etc with 415 x 155 mm travels
larger size table optional larger table 600 x 500 mm

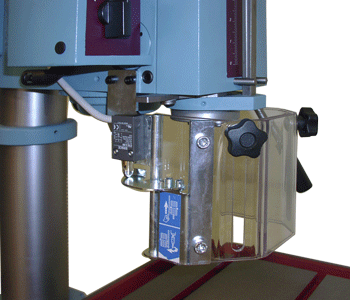

drill guard to CE standards
Optional chuck guards to CE standards.

These are becoming manditory under many porvincial safety codes.>
The machines we are ordering for stock will have the chuck guard with interlocking limit switch.

Catalogue Downloads
S-25 series English  (current)
S-25-T English not available
S-28 series 30mm cap English  (current)
S-35 series English  (current)
S-40 series English  (current)
General Catalogue English, French, German     Note table size is now 400 x 500)
includes mill / drill combination machines.
